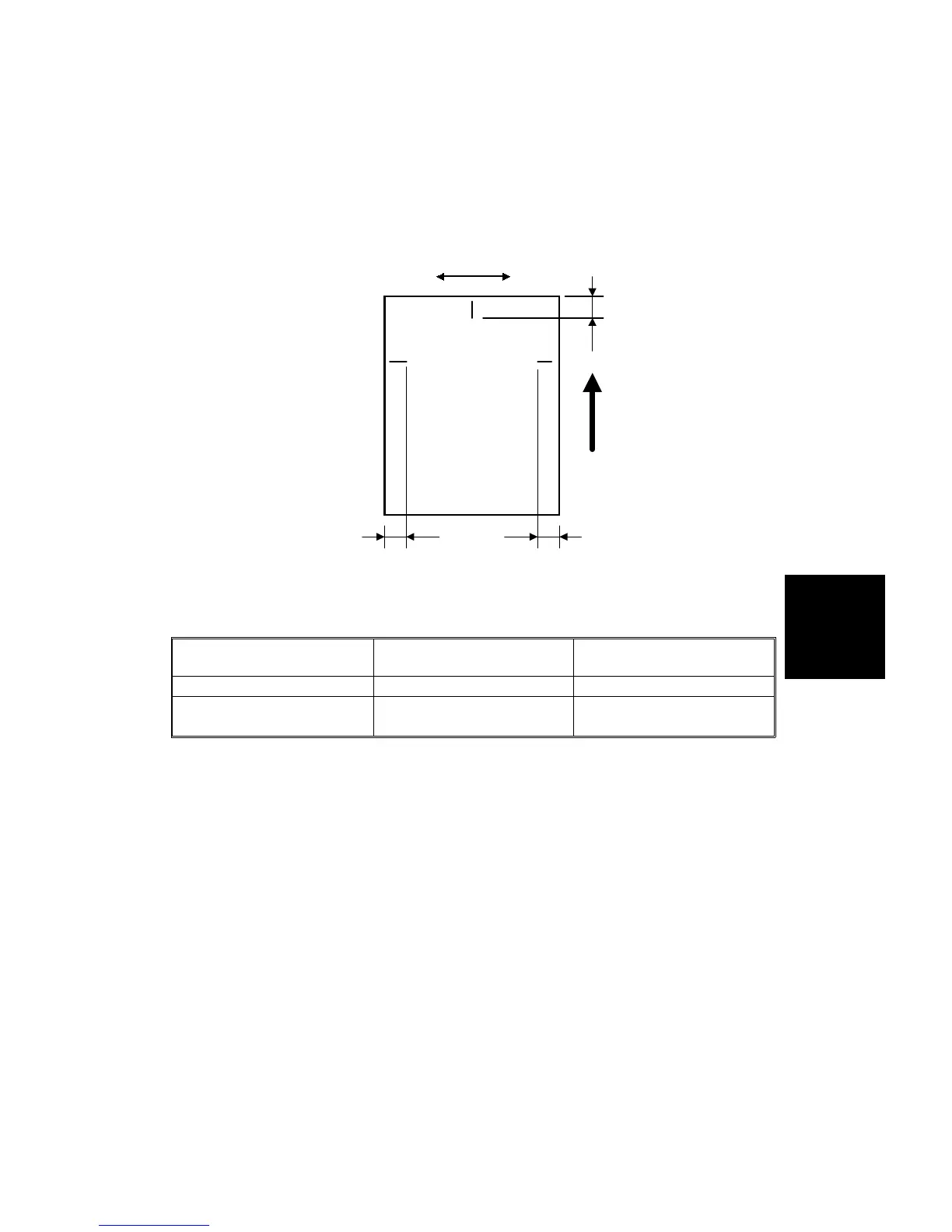

Standard margins Required registration pattern
adjustment range
Leading edge margin
5
±
2 mm a must be 10
±
2 mm
Right and left edge margins
2
±
2 mm (Total margin: 4
mm or less)
b must be 10
±
2 mm
c must be 10
±
2 mm
7. Copy a two-sided original and check that distance "c" from the paper’s
right edge is 10 mm ±2 mm (as shown above).
•
Side to Side Registration: Duplex (SP1-2-6)
NOTE: After the registration adjustment, reset the value of SP5-955 to
"0" to resume normal copy operation.
Rev. 11/96
SP mode
Minus
Plus
Paper Feed
Direction
a
bc
10.0 mm ± 2.0 mm
10.0 mm ± 2.0 mm
10.0 mm ± 2.0 mm
Replacement
and
Adjustment
PAPER FEED AND REGISTRATION
SM 5-71 A166/A187/A189
