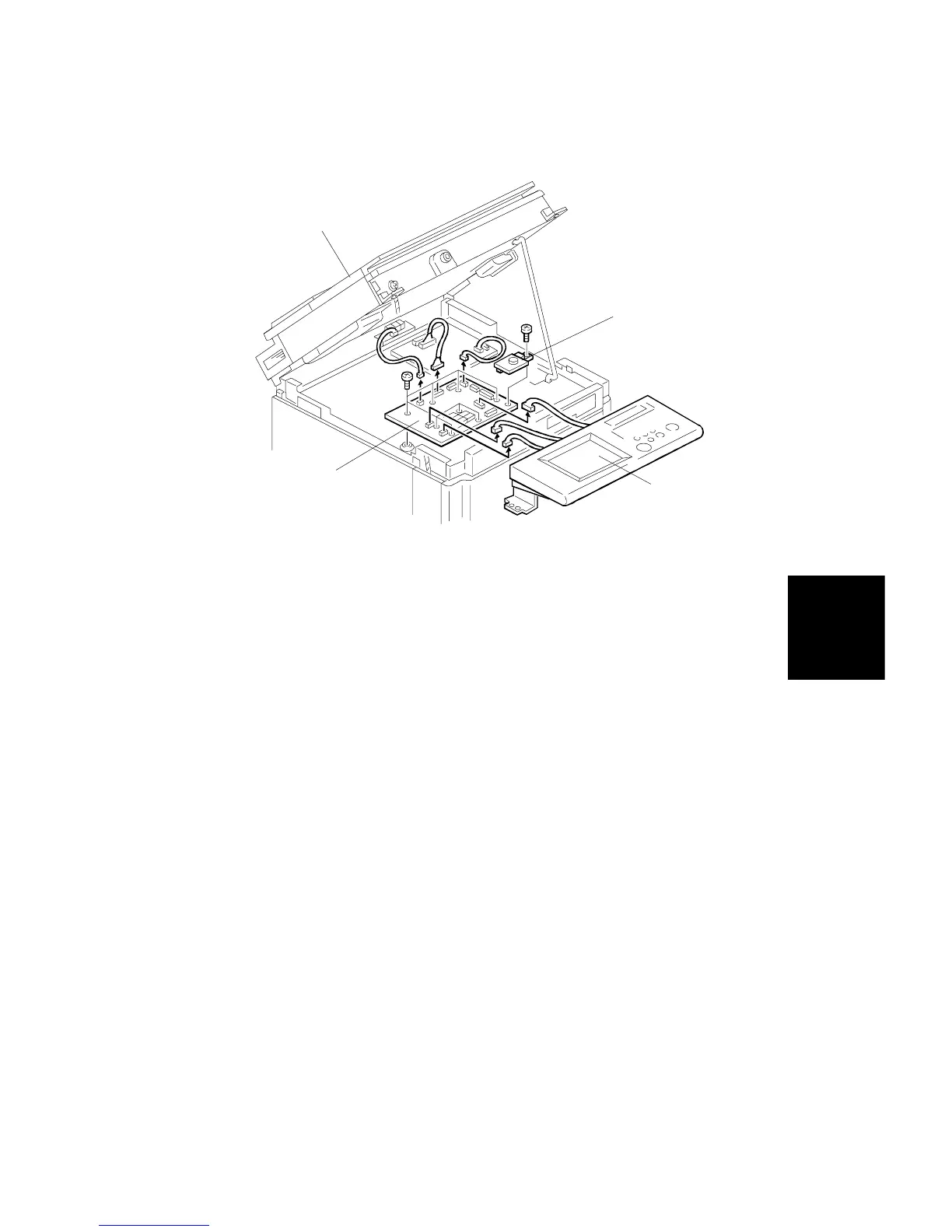

2. A189 Copier Only
1. Open the scanner unit [A] (see procedure 1.11).
2. Remove the RAM board [C] from the SCU [B] (1 screw).
3. Remove the SCU (9 screws).
4. Install the existing RAM board on the new SCU and reinstall it.
NOTE: When replacing the SCU, you must retain and reinstall the isting
RAM board on the new SCU.
Rev. 1/97
[C]
[B]
[A]
Operation
panel
Replacement
and
Adjustment
OTHERS
SM 5-97 A166/A187/A189
