OfficeServ 7100 PROGRAMMING
TECHNICAL MANUAL PART 2 SEPTEMBER 2008
MMC: 857 VIRTUAL CABINETS
DESCRIPTION: [Applies to v.4.22 or Lower]
Any device or resource on the OS7100 that does not have a physical port connection
will now be found in the Virtual Cabinet Items found in the virtual cabinets are logical
devices such as virtual extensions, logical resources such as VoIP trunks and SPnet
trunks, or logical connections that connect to IP phones.
• Cabinets 2 thru 5 are “Virtual Cabinets”
• Each Virtual Cabinet has 3 slots with 8 logical ports per slot. The slots are
numbered 1~ 3.
Use this MMC to modify and configure Virtual cabinets.
MMC 857 configuration directly affects the appearance in the numbering plan
(MMC 724) for these devices.

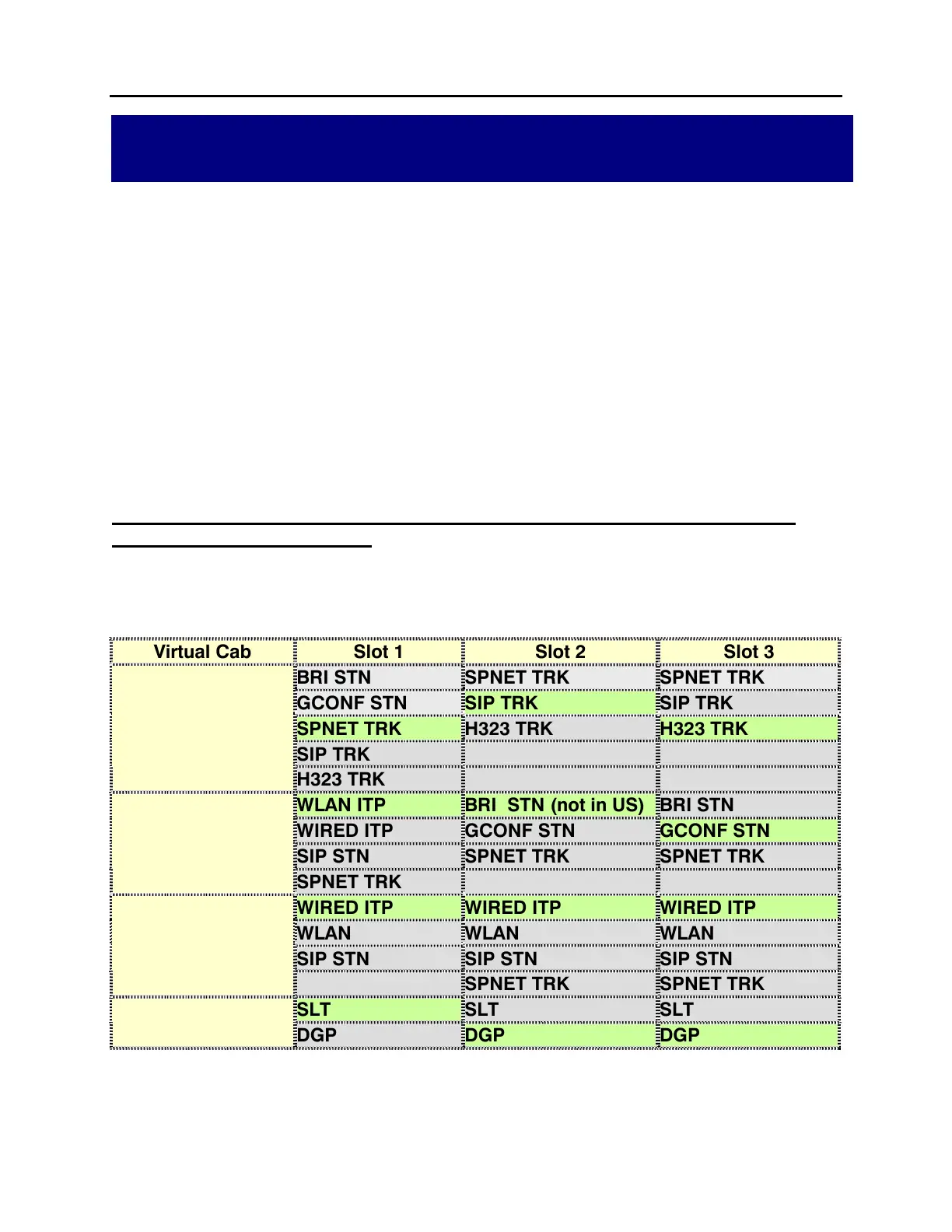

The virtual assignments with the default settings highlighted are shown below:
Virtual Cab Slot 1 Slot 2 Slot 3
BRI STN SPNET TRK SPNET TRK
GCONF STN SIP TRK SIP TRK
SPNET TRK H323 TRK H323 TRK
SIP TRK
5
H323 TRK
WLAN ITP BRI STN (not in US) BRI STN
WIRED ITP GCONF STN GCONF STN
SIP STN SPNET TRK SPNET TRK
4
SPNET TRK
WIRED ITP WIRED ITP WIRED ITP
WLAN WLAN WLAN
SIP STN SIP STN SIP STN
3
SPNET TRK SPNET TRK
SLT SLT SLT
2
DGP DGP DGP
