3.30

SEL-351A Relay Instruction Manual Date Code 20080213

Overcurrent, Voltage, Synchronism Check, and Frequency Elements

Voltage Elements

27CA2 V

59AB V

59PP

0.00–300.00 V secondary

59BC V

59CA V

3P59 = 59AB * 59BC * 59CA

59AB2 V

59PP2P

0.00–300.00 V secondary

59BC2 V

59CA2 V

59Q V

59QP

0.00–120.00 V secondary

Figure 3.25

59Q2 V

59Q2P

0.00–120.00 V secondary

59V1 V

59V1P

0.00–170.00 V secondary

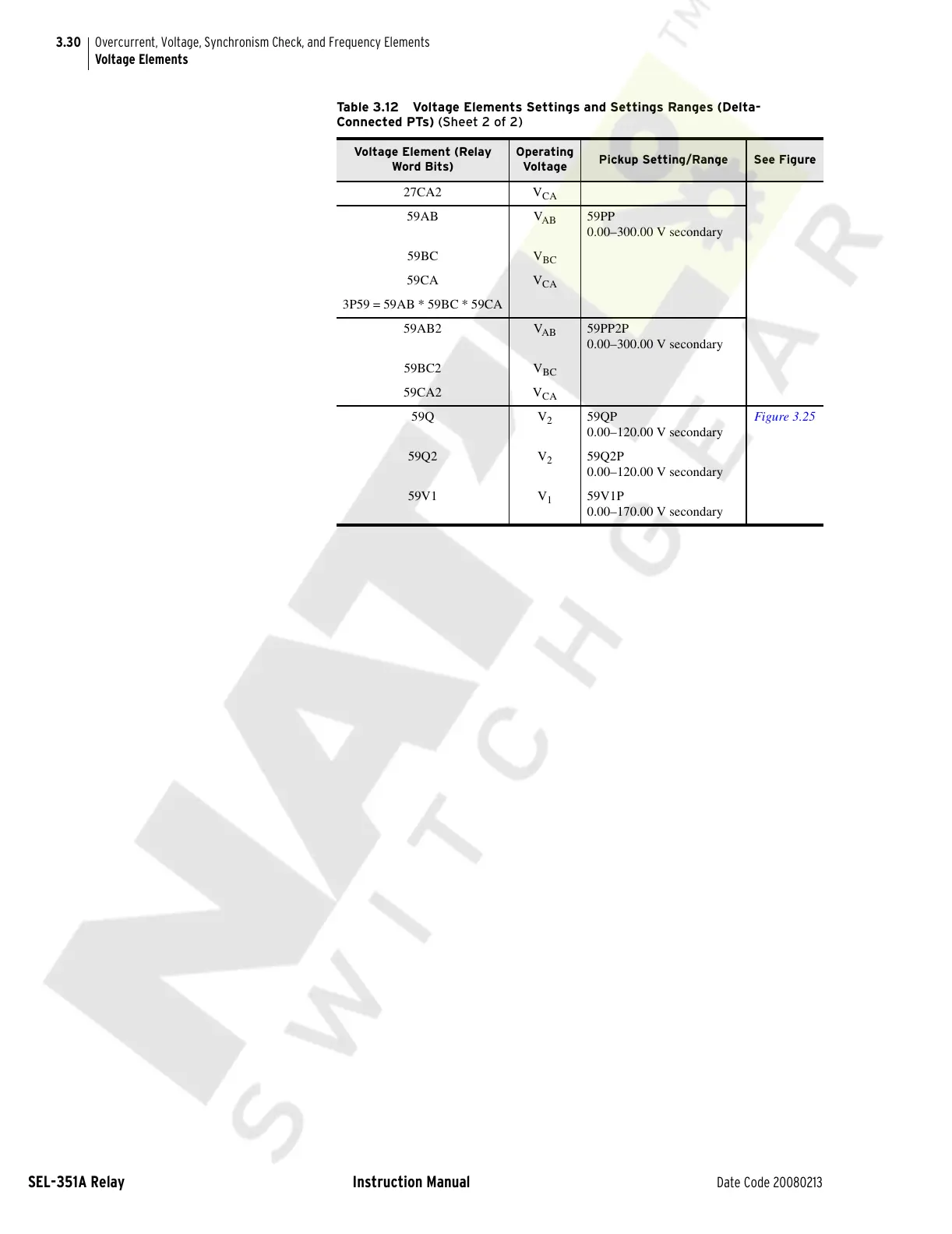

Table 3.12 Voltage Elements Settings and Settings Ranges (Delta-

Connected PTs) (Sheet 2 of 2)

Voltage Element (Relay

Word Bits)

Operating

Voltage

Pickup Setting/Range See Figure
