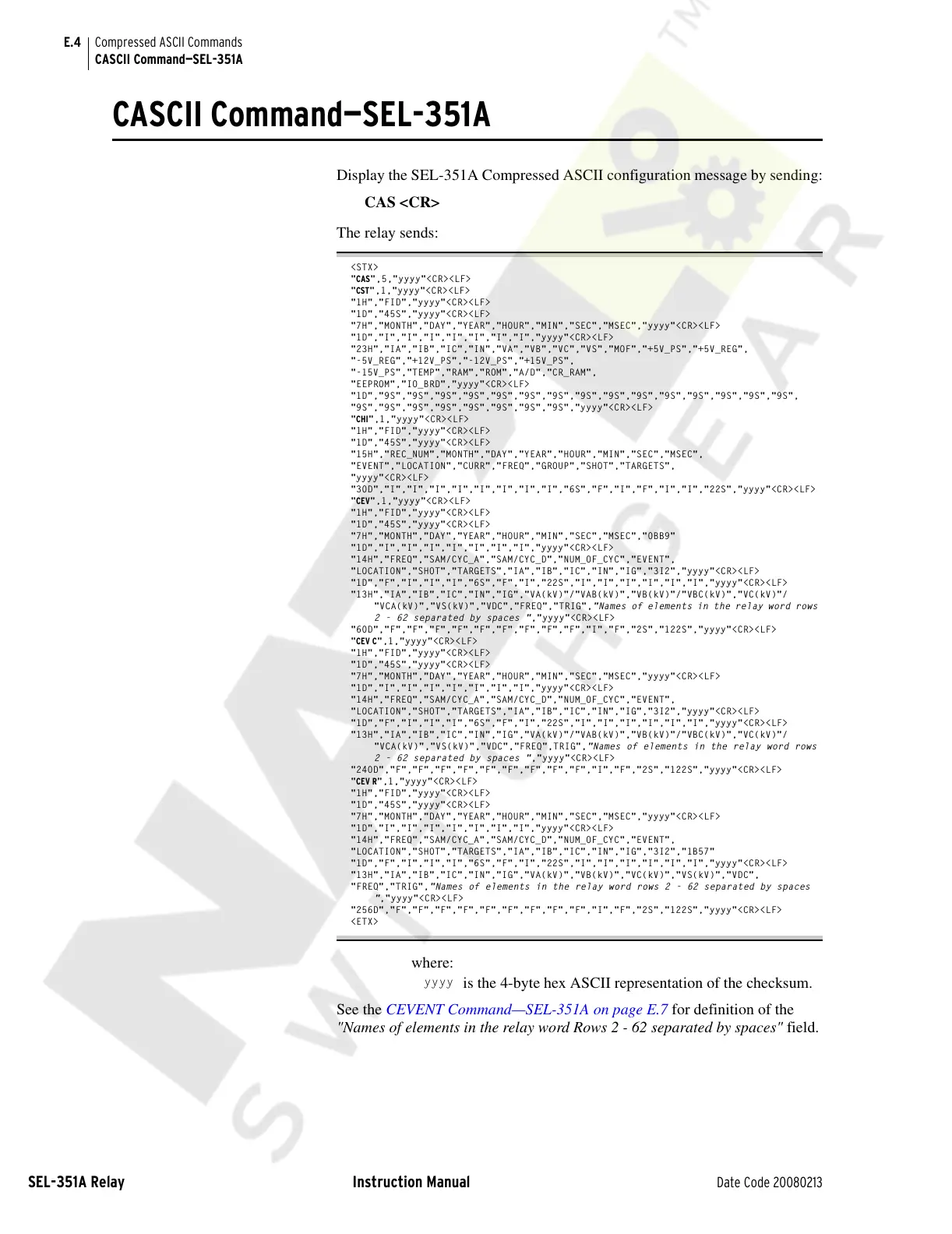

E.4
SEL-351A Relay Instruction Manual Date Code 20080213
Compressed ASCII Commands
CASCII Command—SEL-351A
CASCII Command—SEL-351A
Display the SEL-351A Compressed ASCII configuration message by sending:
CAS <CR>
The relay sends:
<STX>
"CAS",5,"yyyy"<CR><LF>
"CST",1,"yyyy"<CR><LF>
"1H","FID","yyyy"<CR><LF>
"1D","45S","yyyy"<CR><LF>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","yyyy"<CR><LF>
"1D","I","I","I","I","I","I","I","yyyy"<CR><LF>
"23H","IA","IB","IC","IN","VA","VB","VC","VS","MOF","+5V_PS","+5V_REG",
"-5V_REG","+12V_PS","-12V_PS","+15V_PS",
"-15V_PS","TEMP","RAM","ROM","A/D","CR_RAM",
"EEPROM","IO_BRD","yyyy"<CR><LF>
"1D","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S",
"9S","9S","9S","9S","9S","9S","9S","9S","yyyy"<CR><LF>
"CHI",1,"yyyy"<CR><LF>
"1H","FID","yyyy"<CR><LF>
"1D","45S","yyyy"<CR><LF>
"15H","REC_NUM","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC",
"EVENT","LOCATION","CURR","FREQ","GROUP","SHOT","TARGETS",
"yyyy"<CR><LF>
"30D","I","I","I","I","I","I","I","I","6S","F","I","F","I","I","22S","yyyy"<CR><LF>
"CEV",1,"yyyy"<CR><LF>
"1H","FID","yyyy"<CR><LF>
"1D","45S","yyyy"<CR><LF>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","0BB9"
"1D","I","I","I","I","I","I","I","yyyy"<CR><LF>
"14H","FREQ","SAM/CYC_A","SAM/CYC_D","NUM_OF_CYC","EVENT",
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","yyyy"<CR><LF>
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","yyyy"<CR><LF>
"13H","IA","IB","IC","IN","IG","VA(kV)"/"VAB(kV)","VB(kV)"/"VBC(kV)","VC(kV)"/
"VCA(kV)","VS(kV)","VDC","FREQ","TRIG","Names of elements in the relay word rows
2 - 62 separated by spaces ","yyyy"<CR><LF>
"60D","F","F","F","F","F","F","F","F","F","I","F","2S","122S","yyyy"<CR><LF>
"CEV C",1,"yyyy"<CR><LF>
"1H","FID","yyyy"<CR><LF>
"1D","45S","yyyy"<CR><LF>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","yyyy"<CR><LF>
"1D","I","I","I","I","I","I","I","yyyy"<CR><LF>
"14H","FREQ","SAM/CYC_A","SAM/CYC_D","NUM_OF_CYC","EVENT",
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","yyyy"<CR><LF>
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","yyyy"<CR><LF>
"13H","IA","IB","IC","IN","IG","VA(kV)"/"VAB(kV)","VB(kV)"/"VBC(kV)","VC(kV)"/
"VCA(kV)","VS(kV)","VDC","FREQ",TRIG","Names of elements in the relay word rows
2 - 62 separated by spaces ","yyyy"<CR><LF>
"240D","F","F","F","F","F","F","F","F","F","I","F","2S","122S","yyyy"<CR><LF>
"CEV R",1,"yyyy"<CR><LF>
"1H","FID","yyyy"<CR><LF>
"1D","45S","yyyy"<CR><LF>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","yyyy"<CR><LF>
"1D","I","I","I","I","I","I","I","yyyy"<CR><LF>
"14H","FREQ","SAM/CYC_A","SAM/CYC_D","NUM_OF_CYC","EVENT",
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","1B57"
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","yyyy"<CR><LF>
"13H","IA","IB","IC","IN","IG","VA(kV)","VB(kV)","VC(kV)","VS(kV)","VDC",
"FREQ","TRIG","Names of elements in the relay word rows 2 - 62 separated by spaces
","yyyy"<CR><LF>
"256D","F","F","F","F","F","F","F","F","F","I","F","2S","122S","yyyy"<CR><LF>
<ETX>
See the CEVENT Command—SEL-351A on page E.7 for definition of the
"Names of elements in the relay word Rows 2 - 62 separated by spaces" field.
where:
yyyy
is the 4-byte hex ASCII representation of the checksum.
