Schweitzer Engineering Laboratories SEL-351A - Figure 2.17 SEL-351 A Provides Overcurrent Protection for a Transformer Bank with a Tertiary Winding (Wye-Connected Pts)

2.25
Date Code 20080213 Instruction Manual SEL-351A Relay
Installation
SEL-351A AC/DC Connection Diagrams for Various Applications
The voltage inputs do not need to be connected. Voltage is needed for voltage elements, synchronism check elements,
frequency elements, voltage-polarized directional elements, fault location, metering (i.e., voltage, MW, MVAR), and
frequency tracking.
Although automatic reclosing is probably not needed in this example, output contact OUT102 can close the circuit breaker
via initiation from various means (serial port communications, optoisolated input assertion, etc.), with desired
supervision (e.g., hot bus check).

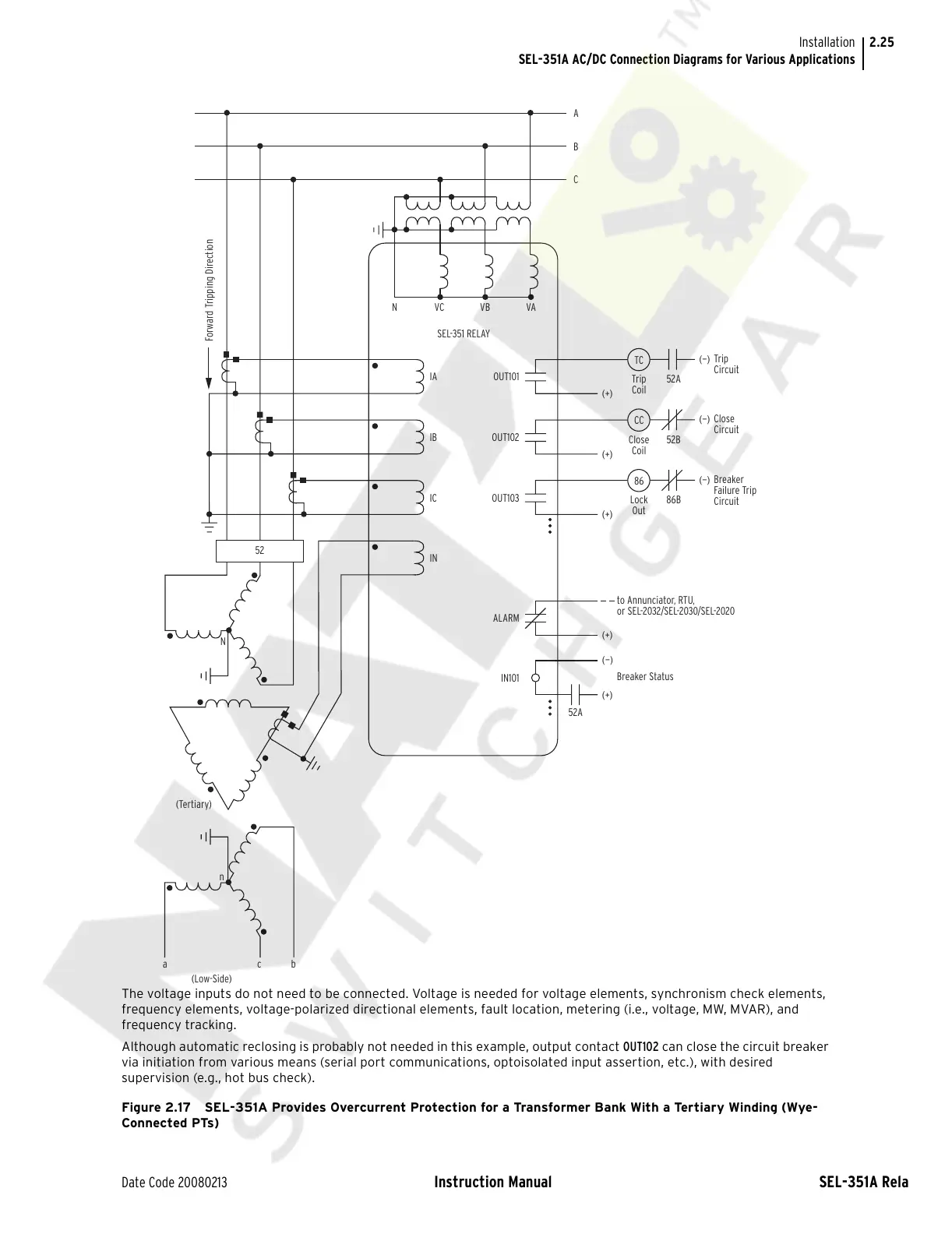

Figure 2.17 SEL-351A Provides Overcurrent Protection for a Transformer Bank With a Tertiary Winding (Wye-
Connected PTs)
TC
Trip
Coil
52A
(+)
(—)
Trip
Circuit
IA
C
B
A
NVCVB
SEL-351 RELAY
VA
OUT101
Forward Tripping Direction
CC
Close
Coil
52B
(+)
(—)
Close
Circuit
IB
OUT102
86
Lock
Out
86B
(+)
(—)
Breaker
Failure Trip
Circuit
IC
OUT103
IN
(+)
52A
to Annunciator, RTU,
or SEL-2032/SEL-2030/SEL-2020
ALARM
(+)
(—)
Breaker Status
IN101
n
a
(Low-Side)
(Tertiary)
c
b
N
52
