L.13

Date Code 20080213 Instruction Manual SEL-351A Relay

SEL Synchrophasors

View Synchrophasors by Using the MET PM Command

=>MET PM <Enter>

Date: 03/31/2007 Time: 15:51:00.000

Time Quality Maximum time synchronization error: 0.000 (ms) TSOK = 1

Synchrophasors

Phase Voltages Pos. Sequence Voltage

VA VB VC V1

MAG (kV) 11.691 11.686 11.669 11.682

ANG (DEG) 129.896 10.262 -111.764 129.485

Phase Currents Pos. Sequence Current

IA IB IC I1

MAG (A) 195.146 192.614 198.090 195.283

ANG (DEG) 114.930 -2.786 -120.238 117.338

FREQ (Hz) 60.029

Digitals

SV3 SV4 SV5 SV6 SV7 SV8 SV9 SV10

0 0 0 0 0 0 0 0

SV11 SV12 SV13 SV14 SV15 SV16

0 0 0 0 0 0

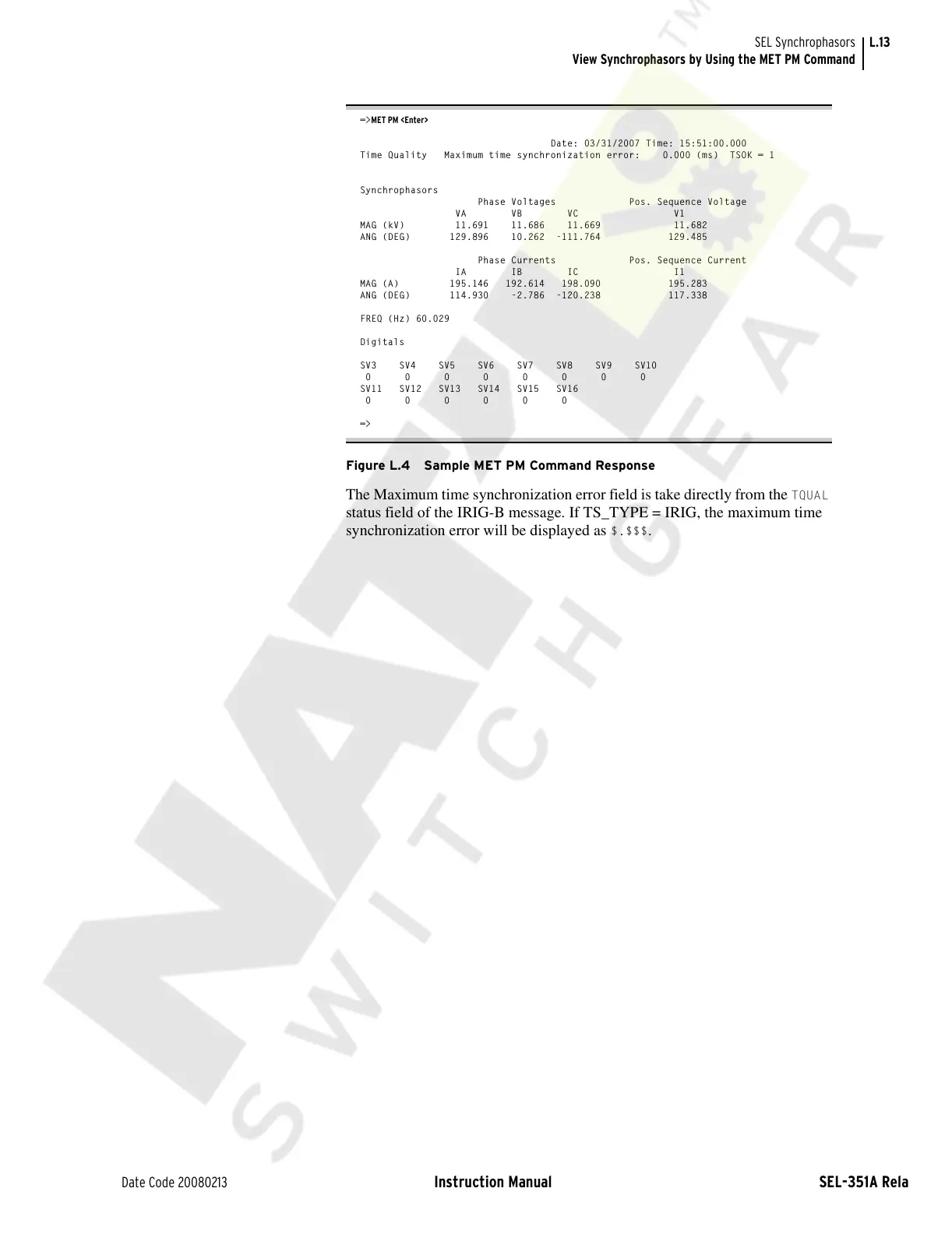

Figure L.4 Sample MET PM Command Response

The Maximum time synchronization error field is take directly from the TQUAL

status field of the IRIG-B message. If TS_TYPE = IRIG, the maximum time

synchronization error will be displayed as

$.$$$.
