Schweitzer Engineering Laboratories SEL-351A - Figure 2.21 SEL-351 A Provides Overcurrent Protection for a Petersen Coil Grounded System (Wye-Connected Pts)

2.29
Date Code 20080213 Instruction Manual SEL-351A Relay
Installation
SEL-351A AC/DC Connection Diagrams for Various Applications
A core-balance current transformer is often referred to as a zero-sequence, ground fault, or window current
transformer.
Directional control for a Petersen Coil grounded system is selected with setting ORDER containing P (see Table 4 .1 –
Table 4 .3). Nondirectional sensitive earth fault (SEF) protection is also available.
Note: The SEL-351A-1 is not equipped for this application.

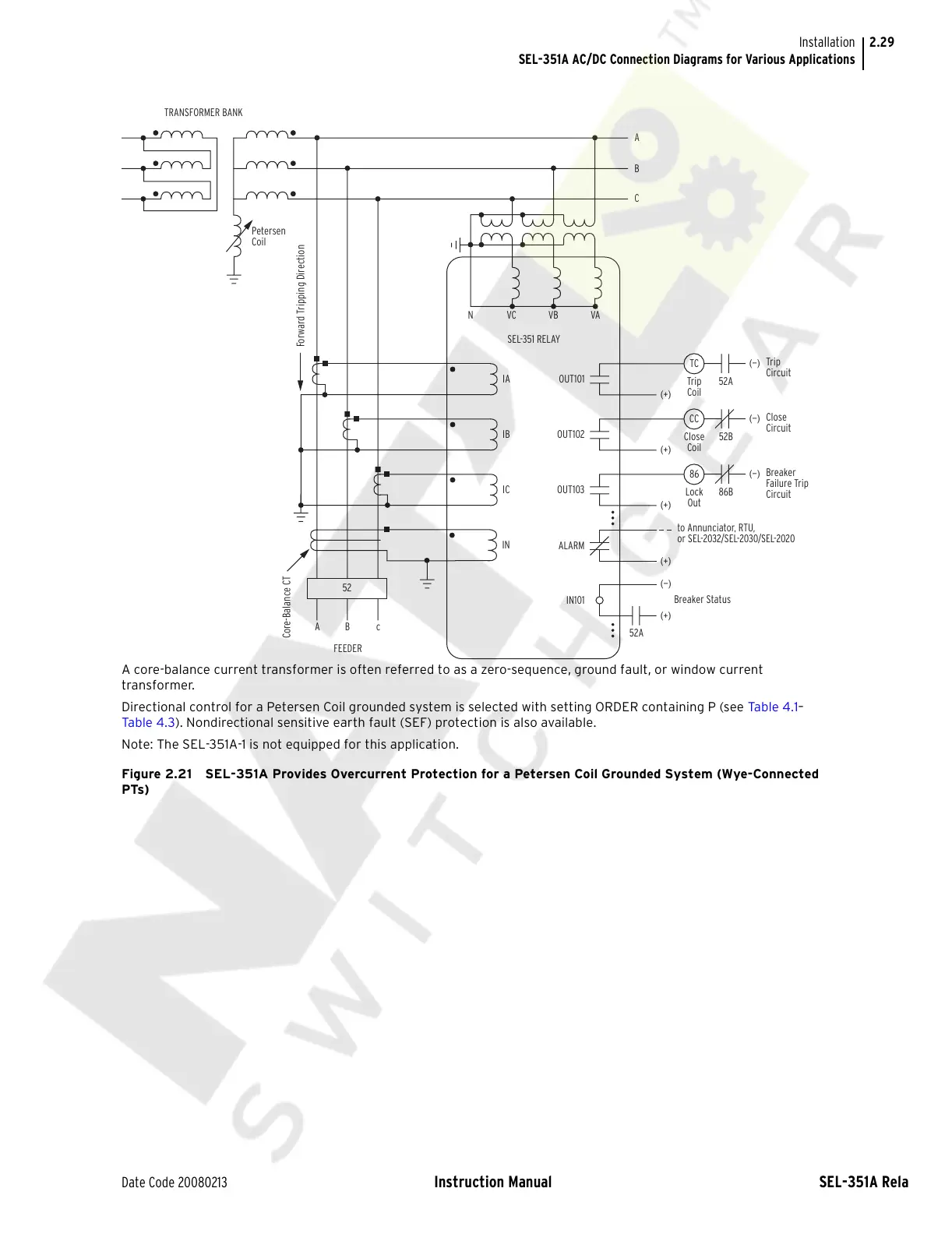

Figure 2.21 SEL-351A Provides Overcurrent Protection for a Petersen Coil Grounded System (Wye-Connected
PTs)
TC
Trip
Coil
52A
52A
(+)
(—)
Trip
Circuit
IA
C
B
A
NVCVB
SEL-351 RELAY
VA
OUT101
Forward Tripping Direction
Core-Balance CT
CC
Close
Coil
52B
(+)
(—)
Close
Circuit
IB
OUT102
86
Lock
Out
86B
(+)
(—)
Breaker
Failure Trip
Circuit
IC
OUT103
FEEDER
ABc
52
(+)
to Annunciator, RTU,
or SEL-2032/SEL-2030/SEL-2020
ALARM
(+)
(—)
Breaker Status
IN101
IN
Petersen
Coil
TRANSFORMER BANK
