Serial Port Communications and Commands
Command Summary
Command Summary
Table 10.6 alphabetically lists the serial port commands within a given access
level. Much of the information available from the serial port commands is also
available via the front-panel pushbuttons (only on models with LCD). The
correspondence between the serial port commands and the front-panel
pushbuttons is also given in Table 10.6. See Section 11: Front-Panel Interface
(Only on Models With LCD) for more information on the front-panel
pushbuttons.
The serial port commands at the different access levels offer varying levels of
control:
➤ The Access Level 1 commands primarily allow the user to look
at information only (settings, metering, etc.), not change it.
➤ The Access Level B commands primarily allow the user to
operate output contacts or change the active setting group.
➤ The Access Level 2 commands primarily allow the user to
change relay settings.
Again, a higher access level can access the serial port commands in a lower
access level. The commands are shown in uppercase letters, but they can also
be entered with lowercase letters.

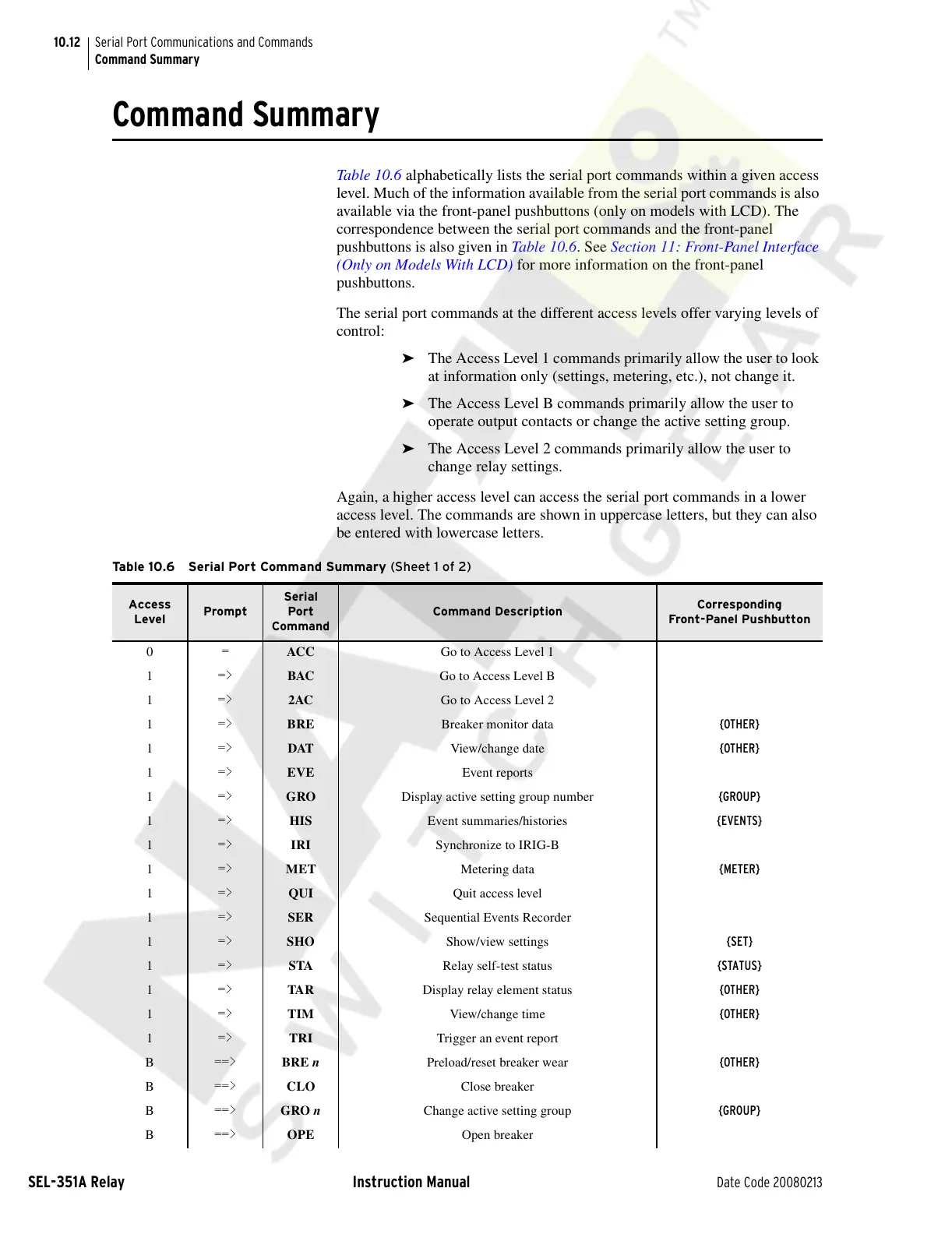

Table 10.6 Serial Port Command Summary (Sheet 1 of 2)
Access
Level
Prompt
Serial
Port
Command
Command Description
Corresponding
Front-Panel Pushbutton
0
=
ACC Go to Access Level 1
1
=>
BAC Go to Access Level B
1
=>
2AC Go to Access Level 2
1
=>
BRE Breaker monitor data {OTHER}
1
=>
DAT View/change date {OTHER}
1
=>
EVE Event reports
1
=>
GRO Display active setting group number {GROUP}
1
=>
HIS Event summaries/histories {EVENTS}
1
=>
IRI Synchronize to IRIG-B
1
=>
MET Metering data {METER}
1
=>
QUI Quit access level
1
=>
SER Sequential Events Recorder
1
=>
SHO Show/view settings {SET}
1
=>
STA Relay self-test status {STATUS}
1
=>
TA R Display relay element status {OTHER}
1
=>
TIM View/change time {OTHER}
1
=>
TRI Trigger an event report
B
==>
BRE n Preload/reset breaker wear {OTHER}
B
==>
CLO Close breaker
B
==>
GRO n Change active setting group {GROUP}
B
==>
OPE Open breaker
