12.8
SEL-351A Relay Instruction Manual Date Code 20080213
Standard Event Reports and SER
Standard 15/30-Cycle Event Reports
=>>EVE P<Enter>
FEEDER 1 Date: 03/15/2007 Time: 11:31:14.889770
STATION A TSOK = 1
FID=SEL-351A-R400-V0-Z008006-D20070117 CID=xxxx
Out In
Currents (Amps Pri) Voltages (kV Pri) 1357 135
IA IB IC IP IG VA VB VC VS Vdc DT 246A 246
[0]
130 781 -941 -8 -30 76.8 54.9 -131.2 -0.0 23 1043 .... ...
-317 963 -701 -10 -54 31.5 93.9 -127.1 -0.0 23 1041 .... ...
-607 979 -393 -8 -21 -20.8 123.1 -100.8 -0.0 23 1046 .... ...
-896 828 17 -9 -51 -68.0 131.3 -65.8 0.0 23 1040 .... ...
-996 594 372 -10 -29 -106.5 119.4 -11.5 0.0 23 1040 .... ...
-956 201 712 -9 -43 -127.6 91.9 33.9 0.0 23 1044 .... ...
-802 -146 907 -8 -41 -129.9 45.9 84.2 0.0 23 1043 .... ...
-459 -553 979 -9 -33 -112.7 -1.4 113.5 -0.0 23 1040 .... ...
.
.
.
[4]
158 763 -953 -10 -31 79.8 51.5 -130.8 -0.0 23 1040 .... ...
-291 955 -724 -11 -60 34.9 91.3 -128.0 -0.0 23 1039 .... ...
-585 982 -419 -8 -21 -17.2 121.8 -103.1 0.0 23 1043 .... ...
-884 843 -12 -9 -52 -64.8 131.3 -68.9 0.0 23 1041 .... ...
-991 617 347 -8 -27 -104.3 120.9 -15.1 -0.0 23 1043 .... ...
-963 230 692 -7 -41 -126.7 94.5 30.3 0.0 23 1042 .... ...
-819 -118 896 -9 -40 -130.4 49.2 81.5 0.0 23 1044 .... ...
-482 -528 980 -9 -30 -114.6 2.4 111.6 0.0 23 1046 .... ...
-170 -790 912 -8 -48 -80.4 -51.2 130.3 0.0 23 1039 .... ...
279 -985 683 -9 -23 -35.5 -91.2 127.6 0.0 23 1040 .... ...
574 -1012 380 -10 -58 16.6 -121.8 102.8 -0.0 23 1041 .... ...
872 -875 -29 -11 -32 64.2 -131.4 68.9 -0.0 23 1043 .... ...
981 -650 -383 -9 -51 103.6 -121.2 15.3 0.0 23 1042 .... ...
955 -263 -731 -10 -40 126.3 -95.0 -30.3 -0.0 23 1041 .... ...
811 85 -936 -9 -40 130.2 -49.7 -81.6 -0.0 23 1046 .... ...
476 497 -1022 -10 -49 114.6 -3.0 -111.9 -0.0 23 0000>.... ...
[5]
165 759 -956 -10 -32 80.6 50.6 -130.7 -0.0 23 1040 .... ...
-283 955 -726 -10 -54 35.8 90.7 -128.2 -0.0 23 1043 .... ...
-580 982 -424 -9 -22 -16.5 121.5 -103.6 0.0 23 1038 .... ...
-881 847 -17 -9 -51 -64.0 131.3 -69.7 -0.0 23 1043 .... ...
.
.
.
=>>

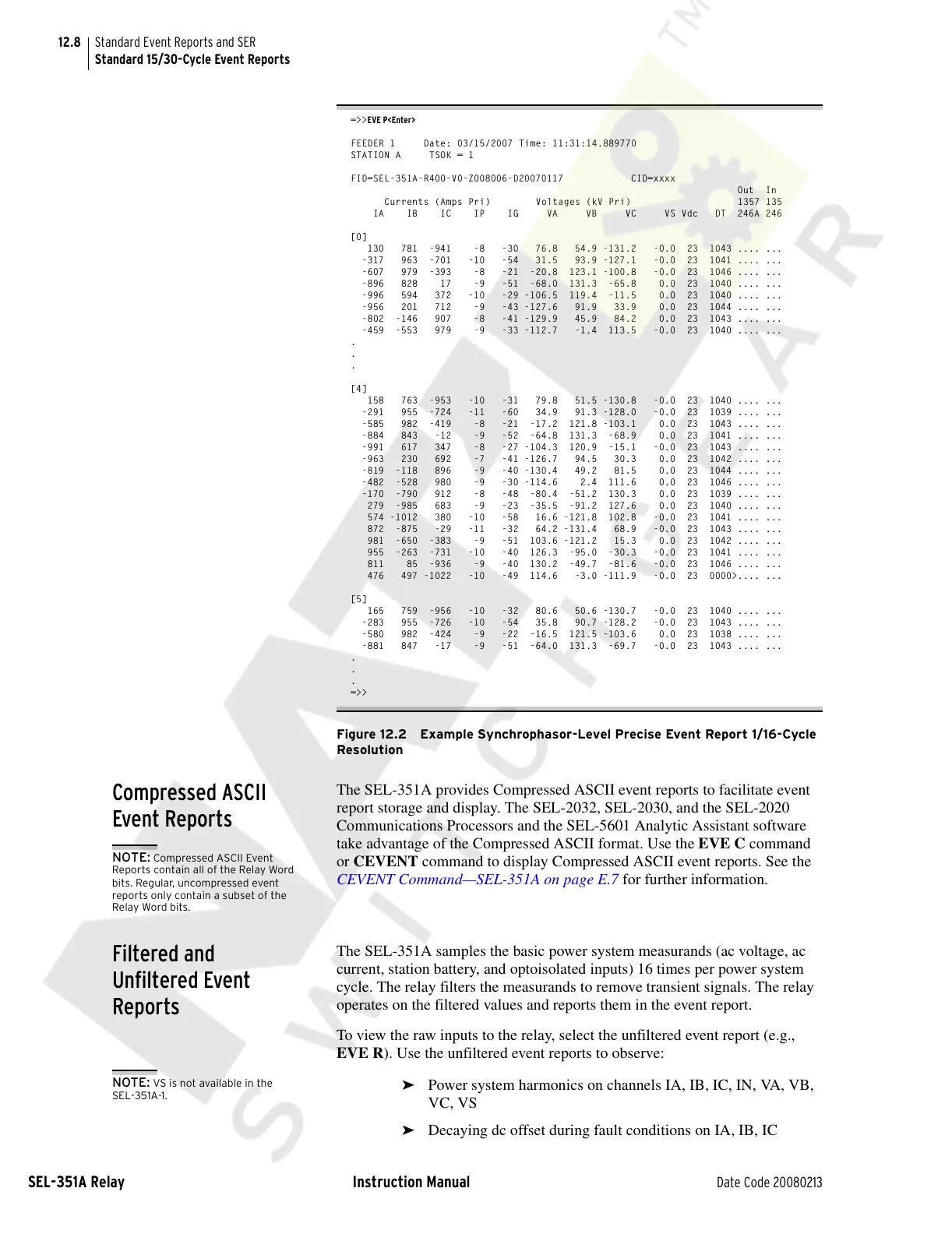

Figure 12.2 Example Synchrophasor-Level Precise Event Report 1/16-Cycle
Resolution
Compressed ASCII
Event Reports
The SEL-351A provides Compressed ASCII event reports to facilitate event
report storage and display. The SEL-2032, SEL-2030, and the SEL-2020
Communications Processors and the SEL-5601 Analytic Assistant software
take advantage of the Compressed ASCII format. Use the EVE C command
or CEVENT command to display Compressed ASCII event reports. See the
CEVENT Command—SEL-351A on page E.7 for further information.
Filtered and
Unfiltered Event
Reports
The SEL-351A samples the basic power system measurands (ac voltage, ac
current, station battery, and optoisolated inputs) 16 times per power system
cycle. The relay filters the measurands to remove transient signals. The relay
operates on the filtered values and reports them in the event report.
To view the raw inputs to the relay, select the unfiltered event report (e.g.,
EVE R). Use the unfiltered event reports to observe:
NOTE: VS is not available in the
SEL-351A-1.
➤ Power system harmonics on channels IA, IB, IC, IN, VA, VB,
VC, VS
➤ Decaying dc offset during fault conditions on IA, IB, IC
NOTE: Compressed ASCII Event
Reports contain all of the Relay Word
bits. Regular, uncompressed event
reports only contain a subset of the
Relay Word bits.
