E.6

SEL-351A Relay Instruction Manual Date Code 20080213

Compressed ASCII Commands

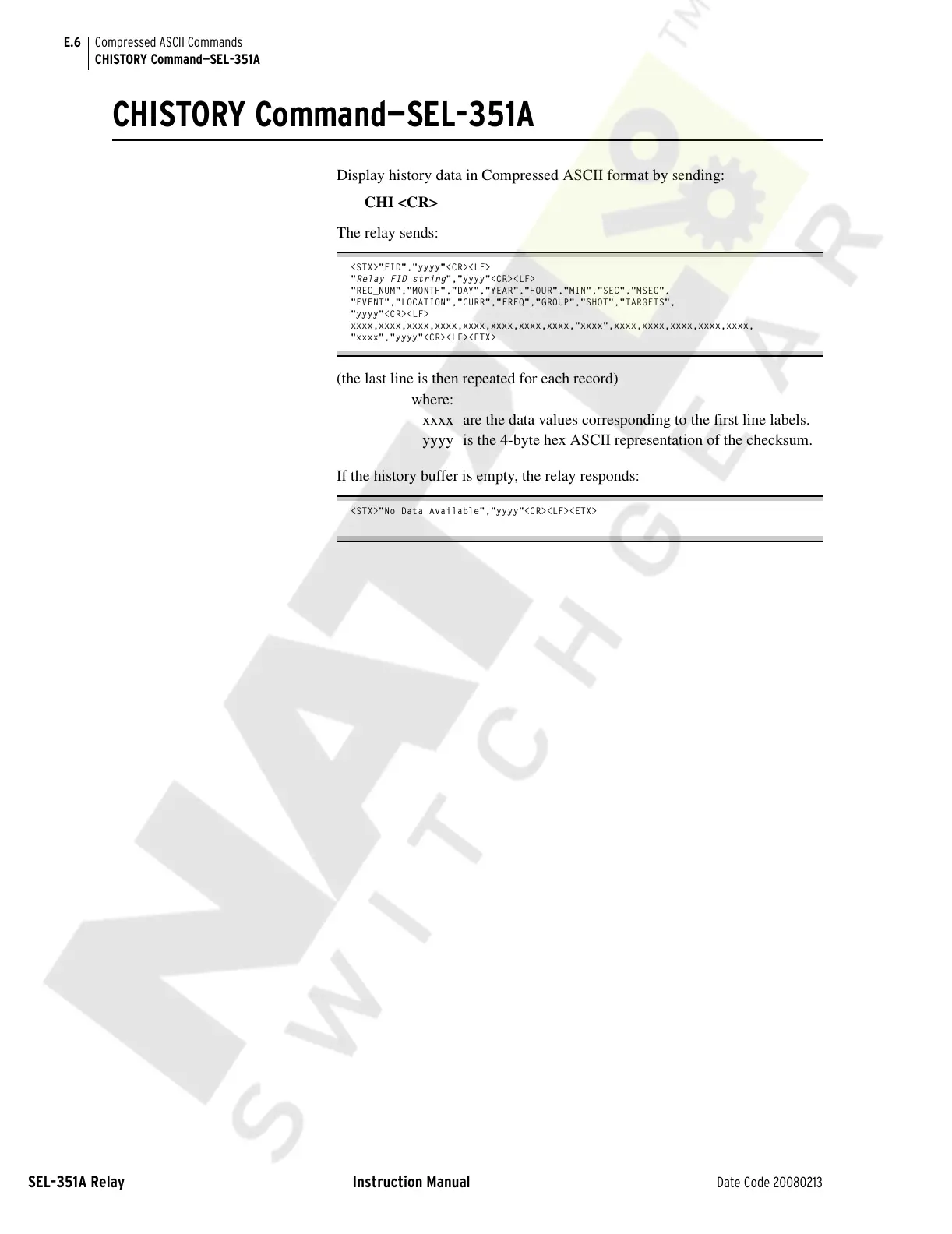

CHISTORY Command—SEL-351A

Display history data in Compressed ASCII format by sending:

CHI <CR>

The relay sends:

"Relay FID string","yyyy"<CR><LF>

"REC_NUM","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC",

"EVENT","LOCATION","CURR","FREQ","GROUP","SHOT","TARGETS",

"yyyy"<CR><LF>

xxxx,xxxx,xxxx,xxxx,xxxx,xxxx,xxxx,xxxx,"xxxx",xxxx,xxxx,xxxx,xxxx,xxxx,

"xxxx","yyyy"<CR><LF><ETX>

(the last line is then repeated for each record)

If the history buffer is empty, the relay responds:

<STX>"No Data Available","yyyy"<CR><LF><ETX>

where:

xxxx are the data values corresponding to the first line labels.

yyyy is the 4-byte hex ASCII representation of the checksum.
