Schweitzer Engineering Laboratories SEL-351A - SEL OGIC Control Equation Variables;Timers

7.27
Date Code 20080213 Instruction Manual SEL-351A Relay
Inputs, Outputs, Timers, and Other Control Logic
SEL
OGIC Control Equation Variables/Timers
SELOGIC Control Equation Variables/Timers
Sixteen (16) SELOGIC control equation variables/timers are available. Each
SEL
OGIC control equation variable/timer has a SELOGIC control equation
setting input and variable/timer outputs as shown in Figure 7.23 and
Figure 7.24.
Timers SV1T–SV6T in Figure 7.23 have a setting range of a little over
4.5 hours:
0.00–999999.00 cycles in 0.25-cycle increments
Timers SV7T–SV16T in Figure 7.24 have a setting range of almost
4.5 minutes:
0.00–16000.00 cycles in 0.25-cycle increments
These timer setting ranges apply to both pickup and dropout times (SVnPU
and SVnDO, n = 1–16).

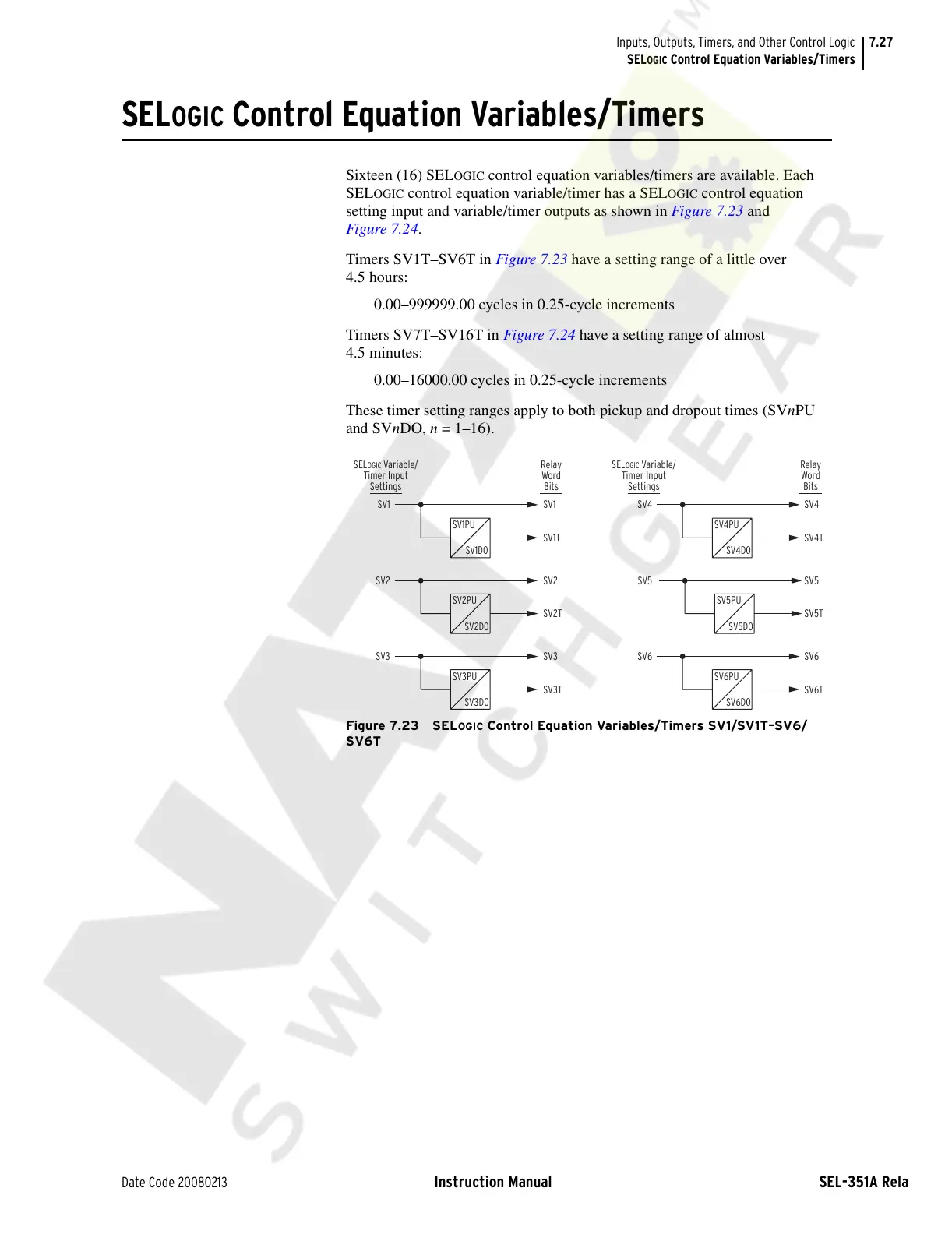

Figure 7.23 SELOGIC Control Equation Variables/Timers SV1/SV1T–SV6/
SV6T
SV1T
SV1 SV1
SV2
SV2T
SV2
SV3
SV3T
SV3
SV4
SV4T
SV4
SV5T
SV5 SV5
SV6
SV6T
SV6
SV1PU
SV1D0
SV4PU
SV4D0
SV2PU
SV2D0
SV5PU
SV5D0
SV3PU
SV3D0
SV6PU
SV6D0
Relay
Word
Bits
Relay
Word
Bits
SELOGIC Variable/
Timer Input
Settings
SELOGIC Variable/
Timer Input
Settings
