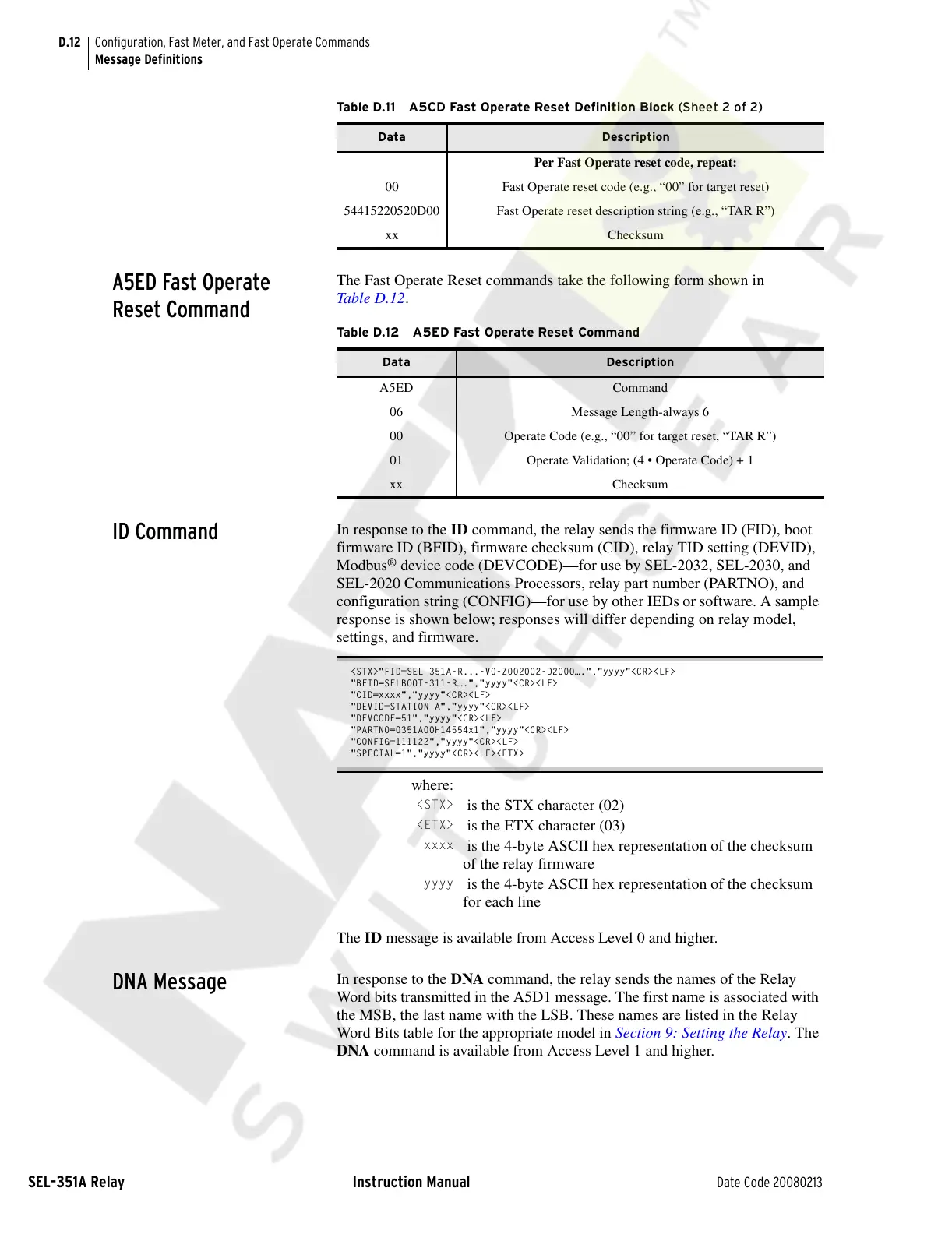

D.12
SEL-351A Relay Instruction Manual Date Code 20080213
Configuration, Fast Meter, and Fast Operate Commands
Message Definitions
A5ED Fast Operate
Reset Command
The Fast Operate Reset commands take the following form shown in
Table D.12.
ID Command
In response to the ID command, the relay sends the firmware ID (FID), boot
firmware ID (BFID), firmware checksum (CID), relay TID setting (DEVID),
Modbus
®
device code (DEVCODE)—for use by SEL-2032, SEL-2030, and
SEL-2020 Communications Processors, relay part number (PARTNO), and
configuration string (CONFIG)—for use by other IEDs or software. A sample
response is shown below; responses will differ depending on relay model,
settings, and firmware.
<STX>"FID=SEL 351A-R...-V0-Z002002-D2000….","yyyy"<CR><LF>
"BFID=SELBOOT-311-R….","yyyy"<CR><LF>
"CID=xxxx","yyyy"<CR><LF>
"DEVID=STATION A","yyyy"<CR><LF>
"DEVCODE=51","yyyy"<CR><LF>
"PARTNO=0351A00H14554x1","yyyy"<CR><LF>
"CONFIG=111122","yyyy"<CR><LF>
"SPECIAL=1","yyyy"<CR><LF><ETX>
The ID message is available from Access Level 0 and higher.
DNA Message
In response to the DNA command, the relay sends the names of the Relay
Word bits transmitted in the A5D1 message. The first name is associated with
the MSB, the last name with the LSB. These names are listed in the Relay
Word Bits table for the appropriate model in Section 9: Setting the Relay. The
DNA command is available from Access Level 1 and higher.
Per Fast Operate reset code, repeat:
00 Fast Operate reset code (e.g., “00” for target reset)
54415220520D00 Fast Operate reset description string (e.g., “TAR R”)
xx Checksum
Table D.11 A5CD Fast Operate Reset Definition Block (Sheet 2 of 2)
Data Description
Table D.12 A5ED Fast Operate Reset Command
Data Description
A5ED Command
06 Message Length-always 6
00 Operate Code (e.g., “00” for target reset, “TAR R”)
01 Operate Validation; (4 • Operate Code) + 1
xx Checksum
where:
<STX>
is the STX character (02)
<ETX>
is the ETX character (03)
xxxx
is the 4-byte ASCII hex representation of the checksum
of the relay firmware
yyyy
is the 4-byte ASCII hex representation of the checksum
for each line
