Configuration, Fast Meter, and Fast Operate Commands
Message Definitions

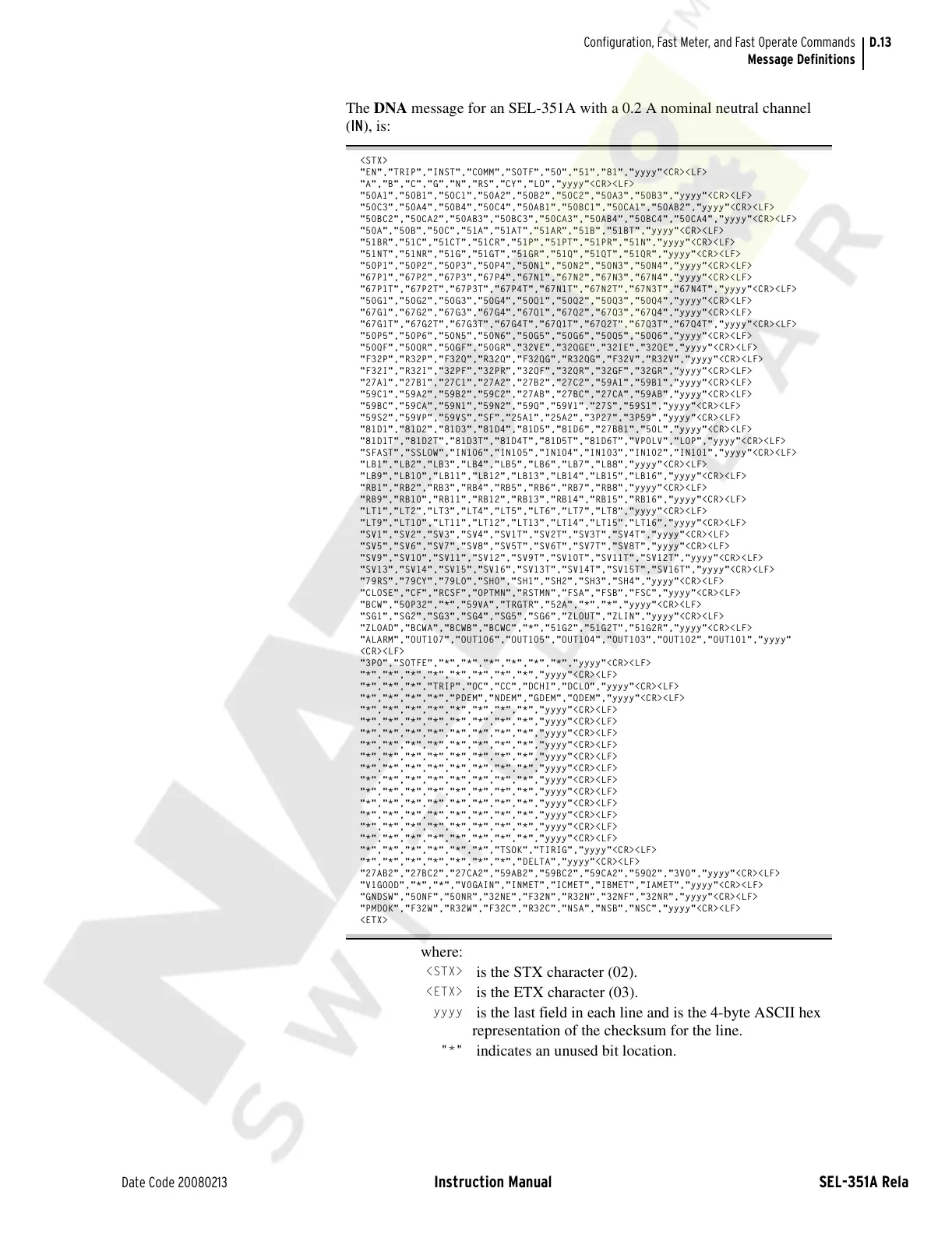

The DNA message for an SEL-351A with a 0.2 A nominal neutral channel
(IN), is:
<STX>
"EN","TRIP","INST","COMM","SOTF","50","51","81","yyyy"<CR><LF>
"A","B","C","G","N","RS","CY","LO","yyyy"<CR><LF>
"50A1","50B1","50C1","50A2","50B2","50C2","50A3","50B3","yyyy"<CR><LF>
"50C3","50A4","50B4","50C4","50AB1","50BC1","50CA1","50AB2","yyyy"<CR><LF>
"50BC2","50CA2","50AB3","50BC3","50CA3","50AB4","50BC4","50CA4","yyyy"<CR><LF>
"50A","50B","50C","51A","51AT","51AR","51B","51BT","yyyy"<CR><LF>
"51BR","51C","51CT","51CR","51P","51PT","51PR","51N","yyyy"<CR><LF>
"51NT","51NR","51G","51GT","51GR","51Q","51QT","51QR","yyyy"<CR><LF>
"50P1","50P2","50P3","50P4","50N1","50N2","50N3","50N4","yyyy"<CR><LF>
"67P1","67P2","67P3","67P4","67N1","67N2","67N3","67N4","yyyy"<CR><LF>
"67P1T","67P2T","67P3T","67P4T","67N1T","67N2T","67N3T","67N4T","yyyy"<CR><LF>
"50G1","50G2","50G3","50G4","50Q1","50Q2","50Q3","50Q4","yyyy"<CR><LF>
"67G1","67G2","67G3","67G4","67Q1","67Q2","67Q3","67Q4","yyyy"<CR><LF>
"67G1T","67G2T","67G3T","67G4T","67Q1T","67Q2T","67Q3T","67Q4T","yyyy"<CR><LF>
"50P5","50P6","50N5","50N6","50G5","50G6","50Q5","50Q6","yyyy"<CR><LF>
"50QF","50QR","50GF","50GR","32VE","32QGE","32IE","32QE","yyyy"<CR><LF>
"F32P","R32P","F32Q","R32Q","F32QG","R32QG","F32V","R32V","yyyy"<CR><LF>
"F32I","R32I","32PF","32PR","32QF","32QR","32GF","32GR","yyyy"<CR><LF>
"27A1","27B1","27C1","27A2","27B2","27C2","59A1","59B1","yyyy"<CR><LF>
"59C1","59A2","59B2","59C2","27AB","27BC","27CA","59AB","yyyy"<CR><LF>
"59BC","59CA","59N1","59N2","59Q","59V1","27S","59S1","yyyy"<CR><LF>
"59S2","59VP","59VS","SF","25A1","25A2","3P27","3P59","yyyy"<CR><LF>
"81D1","81D2","81D3","81D4","81D5","81D6","27B81","50L","yyyy"<CR><LF>
"81D1T","81D2T","81D3T","81D4T","81D5T","81D6T","VPOLV","LOP","yyyy"<CR><LF>
"SFAST","SSLOW","IN106","IN105","IN104","IN103","IN102","IN101","yyyy"<CR><LF>
"LB1","LB2","LB3","LB4","LB5","LB6","LB7","LB8","yyyy"<CR><LF>
"LB9","LB10","LB11","LB12","LB13","LB14","LB15","LB16","yyyy"<CR><LF>
"RB1","RB2","RB3","RB4","RB5","RB6","RB7","RB8","yyyy"<CR><LF>
"RB9","RB10","RB11","RB12","RB13","RB14","RB15","RB16","yyyy"<CR><LF>
"LT1","LT2","LT3","LT4","LT5","LT6","LT7","LT8","yyyy"<CR><LF>
"LT9","LT10","LT11","LT12","LT13","LT14","LT15","LT16","yyyy"<CR><LF>
"SV1","SV2","SV3","SV4","SV1T","SV2T","SV3T","SV4T","yyyy"<CR><LF>
"SV5","SV6","SV7","SV8","SV5T","SV6T","SV7T","SV8T","yyyy"<CR><LF>
"SV9","SV10","SV11","SV12","SV9T","SV10T","SV11T","SV12T","yyyy"<CR><LF>
"SV13","SV14","SV15","SV16","SV13T","SV14T","SV15T","SV16T","yyyy"<CR><LF>
"79RS","79CY","79LO","SH0","SH1","SH2","SH3","SH4","yyyy"<CR><LF>
"CLOSE","CF","RCSF","OPTMN","RSTMN","FSA","FSB","FSC","yyyy"<CR><LF>
"BCW","50P32","*","59VA","TRGTR","52A","*","*","yyyy"<CR><LF>
"SG1","SG2","SG3","SG4","SG5","SG6","ZLOUT","ZLIN","yyyy"<CR><LF>
"ZLOAD","BCWA","BCWB","BCWC","*","51G2","51G2T","51G2R","yyyy"<CR><LF>
"ALARM","OUT107","OUT106","OUT105","OUT104","OUT103","OUT102","OUT101","yyyy"
<CR><LF>
"3PO","SOTFE","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","TRIP","OC","CC","DCHI","DCLO","yyyy"<CR><LF>
"*","*","*","*","PDEM","NDEM","GDEM","QDEM","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","*","*","yyyy"<CR><LF>
"*","*","*","*","*","*","TSOK","TIRIG","yyyy"<CR><LF>
"*","*","*","*","*","*","*","DELTA","yyyy"<CR><LF>
"27AB2","27BC2","27CA2","59AB2","59BC2","59CA2","59Q2","3V0","yyyy"<CR><LF>
"V1GOOD","*","*","V0GAIN","INMET","ICMET","IBMET","IAMET","yyyy"<CR><LF>
"GNDSW","50NF","50NR","32NE","F32N","R32N","32NF","32NR","yyyy"<CR><LF>
"PMDOK","F32W","R32W","F32C","R32C","NSA","NSB","NSC","yyyy"<CR><LF>
<ETX>
where:
<STX>
is the STX character (02).
<ETX>
is the ETX character (03).
yyyy
is the last field in each line and is the 4-byte ASCII hex
representation of the checksum for the line.
"*"
indicates an unused bit location.
