3.32

SEL-351A Relay Instruction Manual Date Code 20080213

Overcurrent, Voltage, Synchronism Check, and Frequency Elements

Voltage Elements

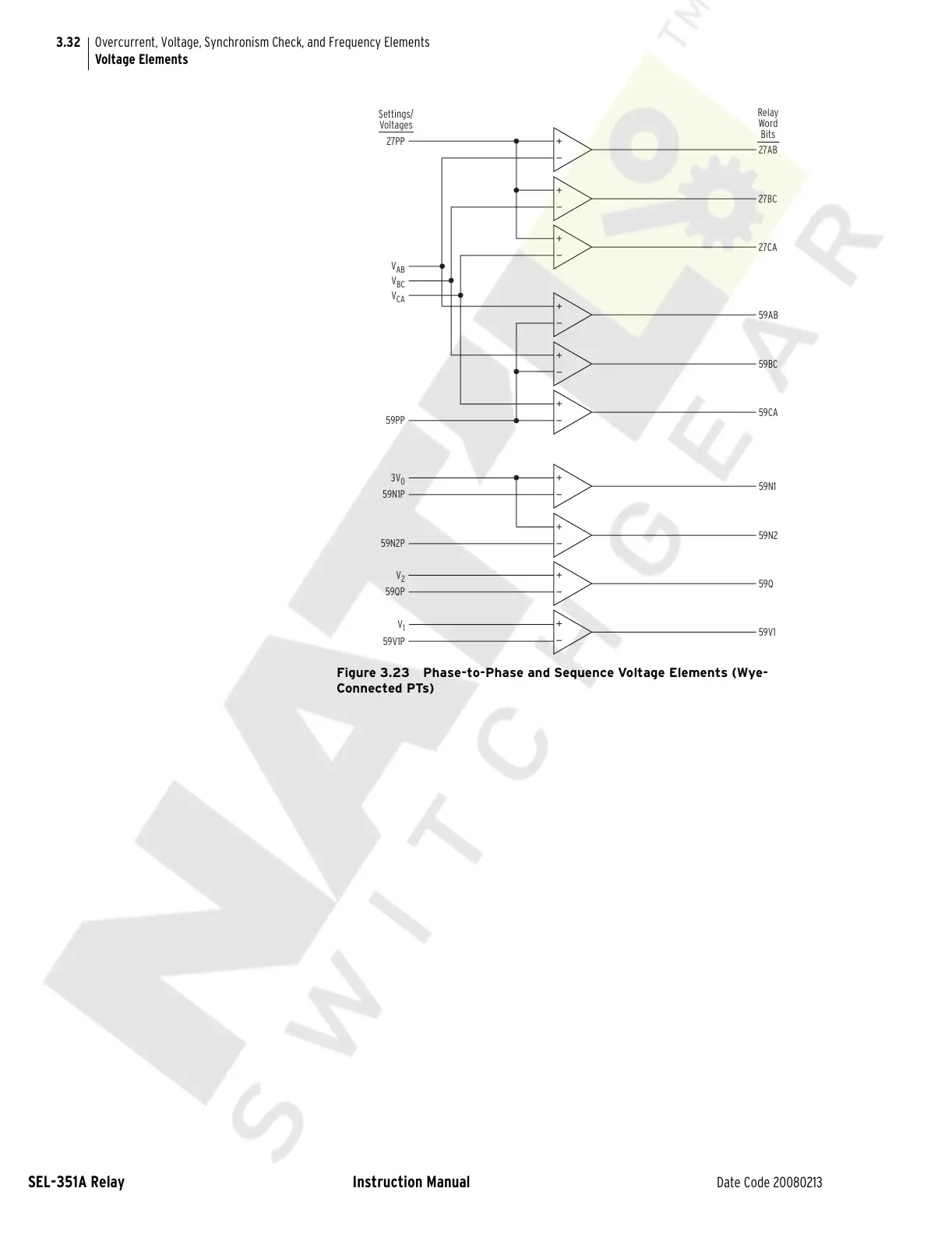

Figure 3.23 Phase-to-Phase and Sequence Voltage Elements (Wye-

Connected PTs)

27AB

27BC

27CA

59N1

59N2

59Q

59V1

59AB

59BC

59CA

27PP

59PP

59N1P

59N2P

59QP

59V1P

Settings/

Voltages

Relay

Word

Bits
