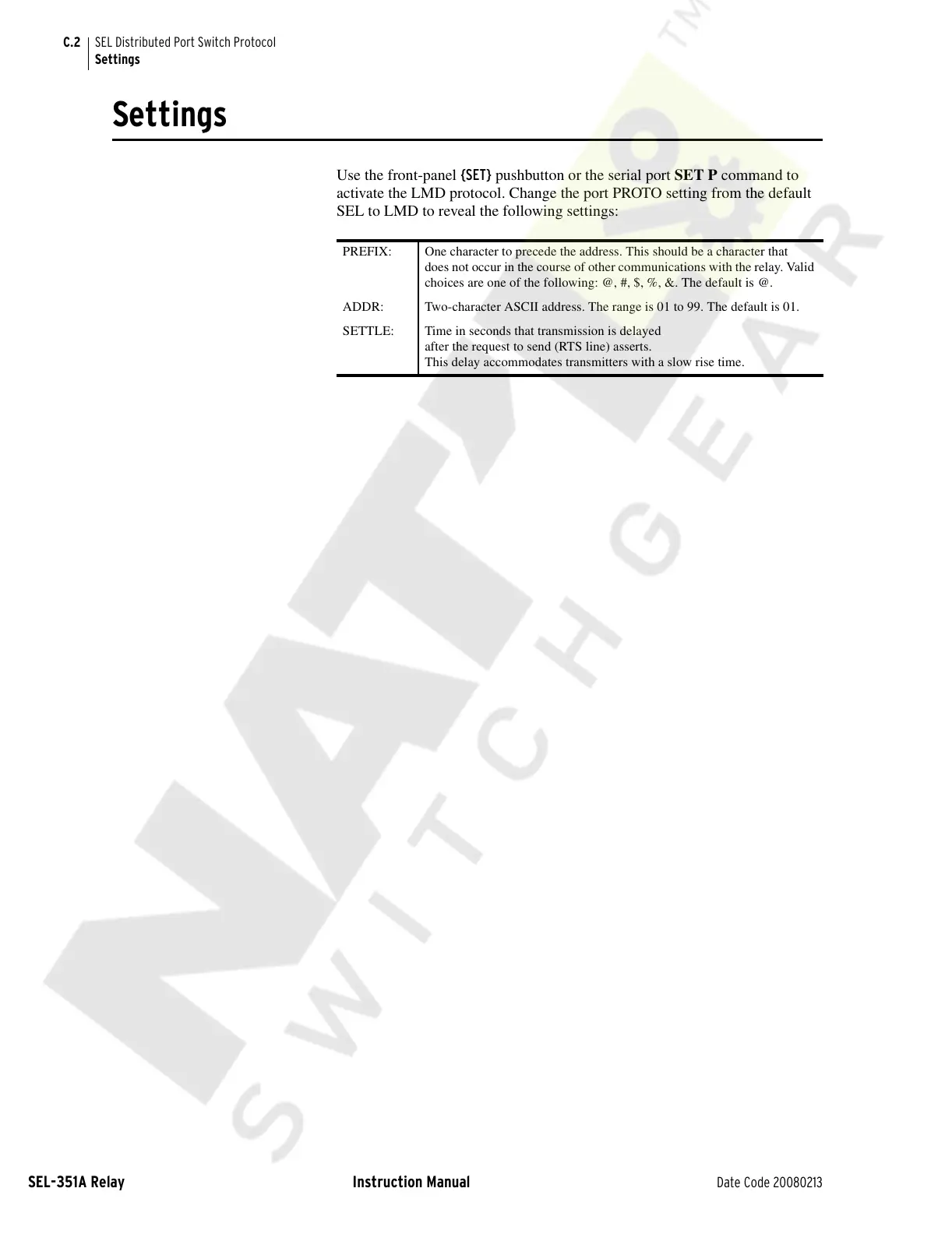

SEL Distributed Port Switch Protocol

Settings

Use the front-panel {SET} pushbutton or the serial port SET P command to

activate the LMD protocol. Change the port PROTO setting from the default

SEL to LMD to reveal the following settings:

PREFIX: One character to precede the address. This should be a character that

does not occur in the course of other communications with the relay. Valid

choices are one of the following: @, #, $, %, &. The default is @.

ADDR: Two-character ASCII address. The range is 01 to 99. The default is 01.

SETTLE: Time in seconds that transmission is delayed

after the request to send (RTS line) asserts.

This delay accommodates transmitters with a slow rise time.
