Schweitzer Engineering Laboratories SEL-351A - Figure 8.7 Breaker Monitor Accumulates 100 Percent Wear

8.11
Date Code 20080213 Instruction Manual SEL-351A Relay
Breaker Monitor and Metering
Breaker Monitor

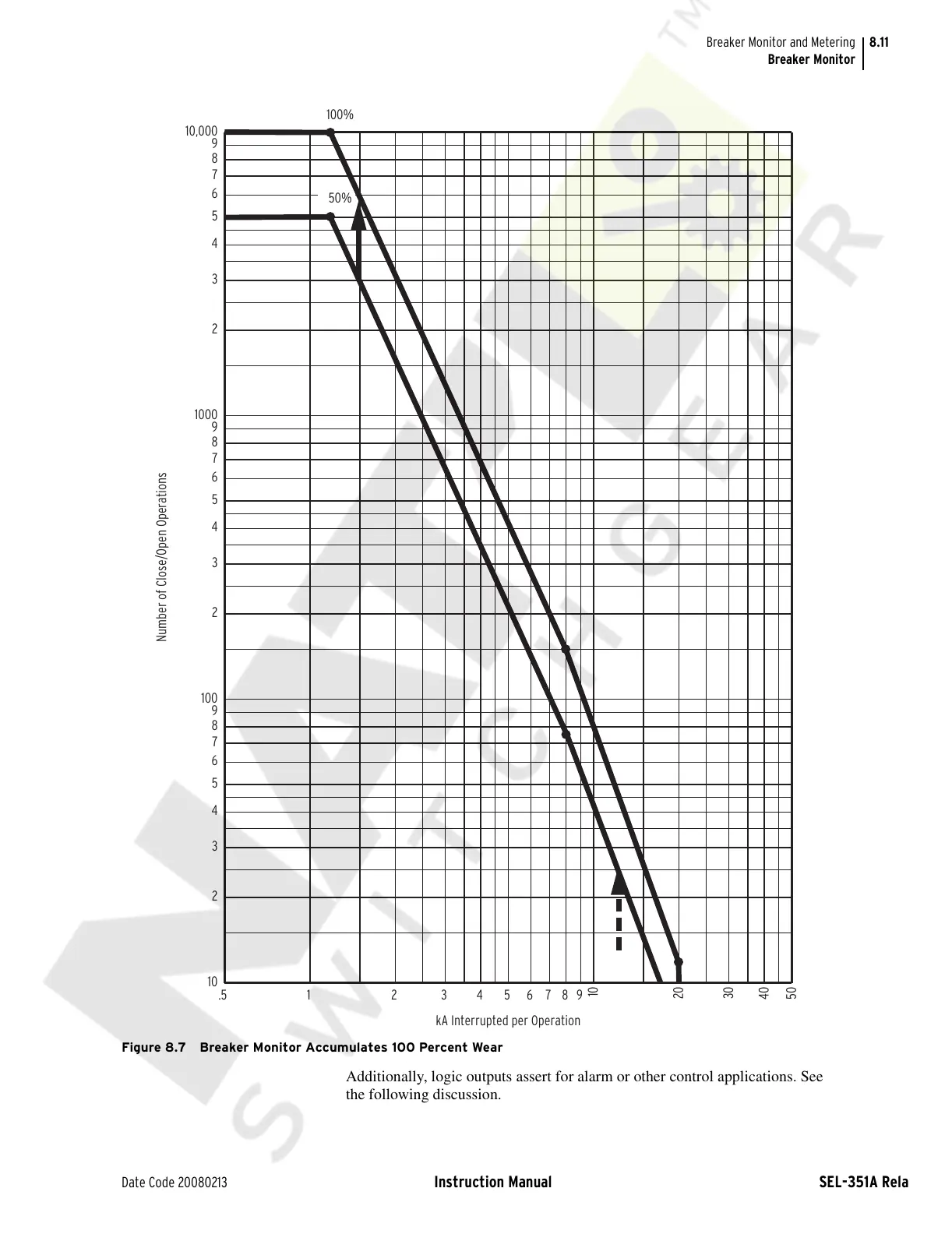

Figure 8.7 Breaker Monitor Accumulates 100 Percent Wear
Additionally, logic outputs assert for alarm or other control applications. See
the following discussion.
