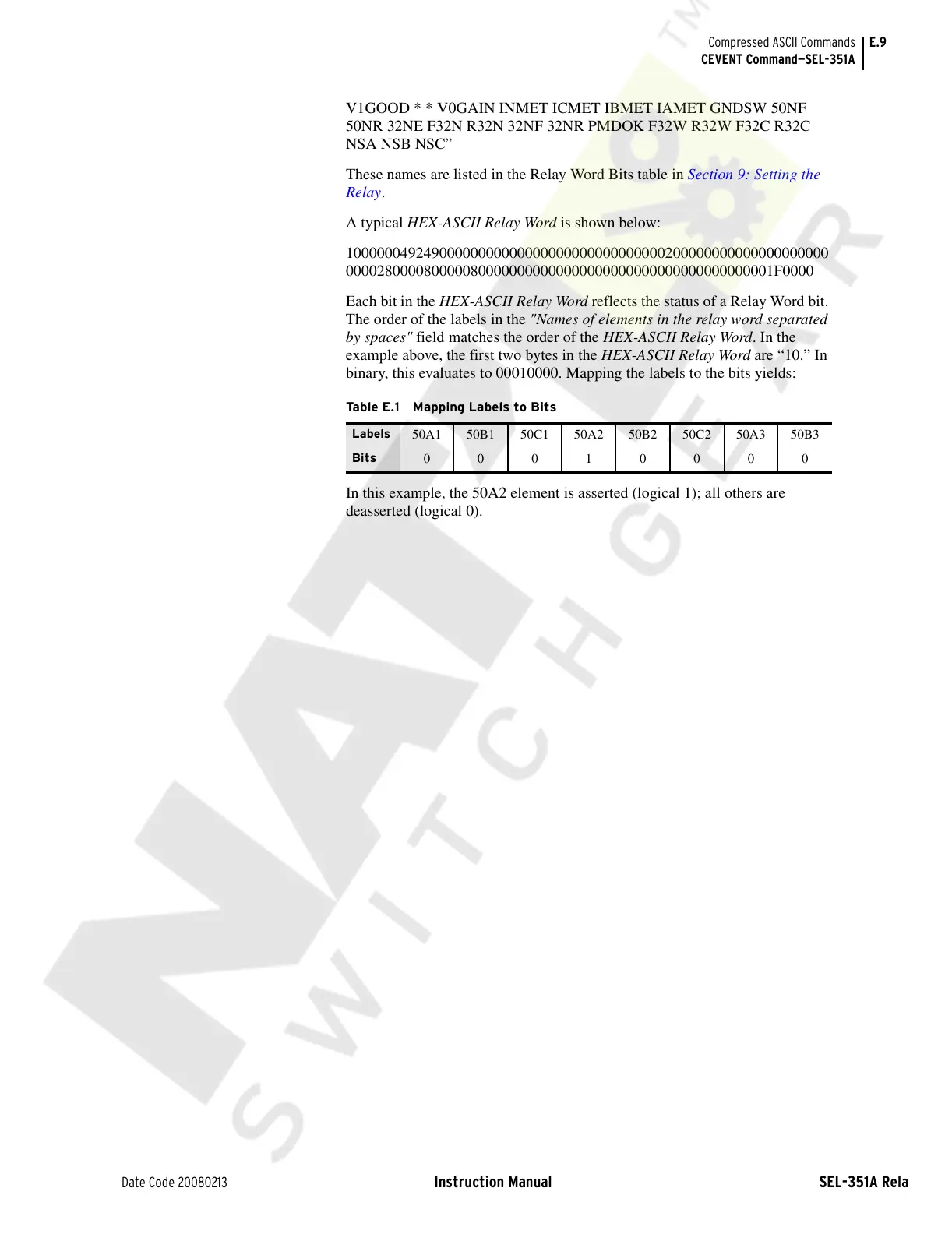

E.9
Date Code 20080213 Instruction Manual SEL-351A Relay
Compressed ASCII Commands
CEVENT Command—SEL-351A
V1GOOD * * V0GAIN INMET ICMET IBMET IAMET GNDSW 50NF
50NR 32NE F32N R32N 32NF 32NR PMDOK F32W R32W F32C R32C
NSA NSB NSC”
These names are listed in the Relay Word Bits table in Section 9: Setting the
Relay.
A typical HEX-ASCII Relay Word is shown below:
10000004924900000000000000000000000000000200000000000000000000
0000280000800000800000000000000000000000000000000000001F0000
Each bit in the HEX-ASCII Relay Word reflects the status of a Relay Word bit.
The order of the labels in the "Names of elements in the relay word separated
by spaces" field matches the order of the HEX-ASCII Relay Word. In the
example above, the first two bytes in the HEX-ASCII Relay Word are “10.” In
binary, this evaluates to 00010000. Mapping the labels to the bits yields:
In this example, the 50A2 element is asserted (logical 1); all others are
deasserted (logical 0).
Table E.1 Mapping Labels to Bits
Labels
50A1 50B1 50C1 50A2 50B2 50C2 50A3 50B3
Bits
00010000
