Schweitzer Engineering Laboratories SEL-351A - Figure 2.1 SEL-351 A Dimensions for Rack-Mount and Panel-Mount Models

To Next Page

To Previous Page

2.3

Date Code 20080213 Instruction Manual SEL-351A Relay

Installation

Relay Mounting

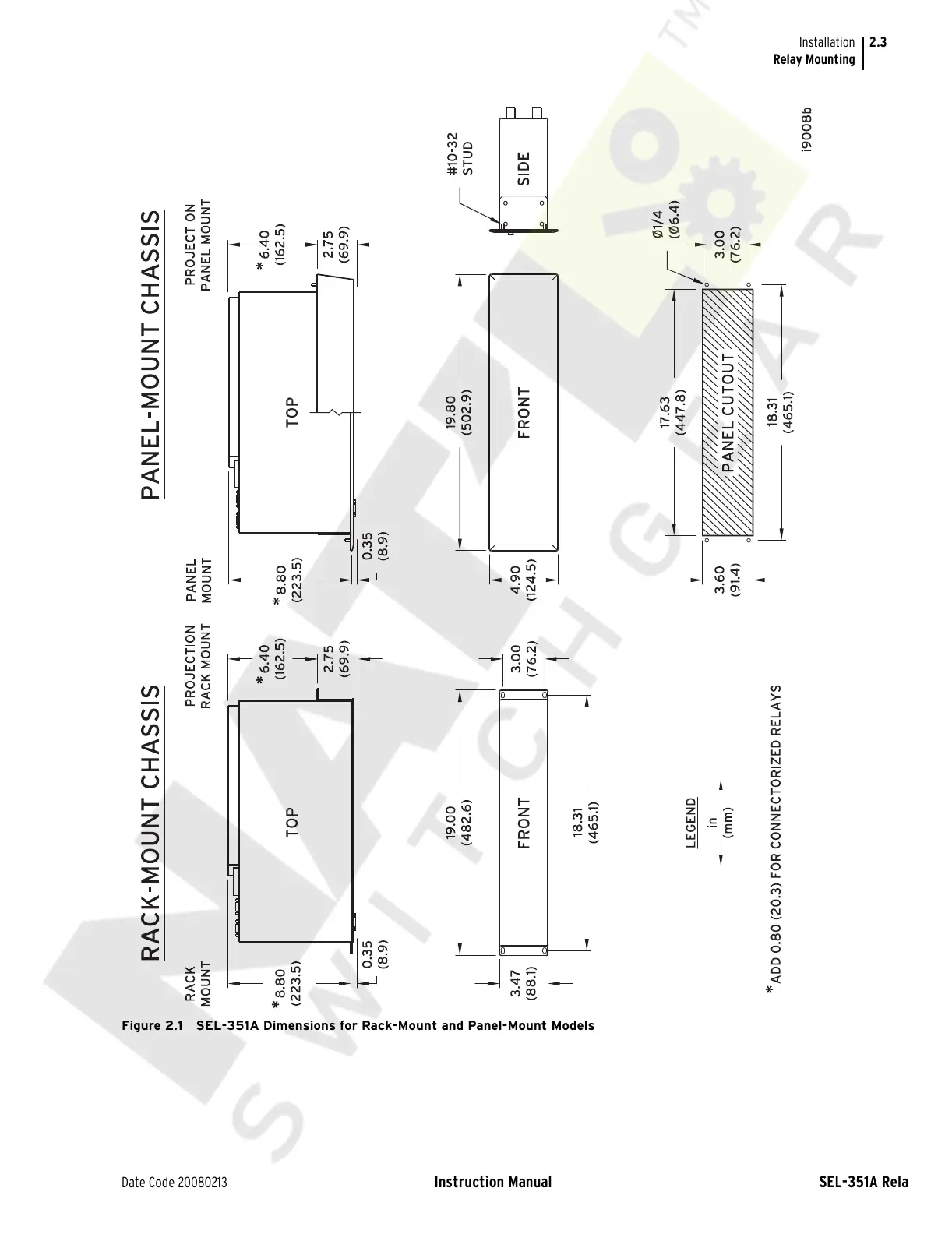

Figure 2.1 SEL-351A Dimensions for Rack-Mount and Panel-Mount Models

Courtesy of NationalSwitchgear.com
