B.5

Date Code 20080213 Instruction Manual SEL-351A Relay

Firmware Upgrade Instructions

Relay Firmware Upgrade Instructions

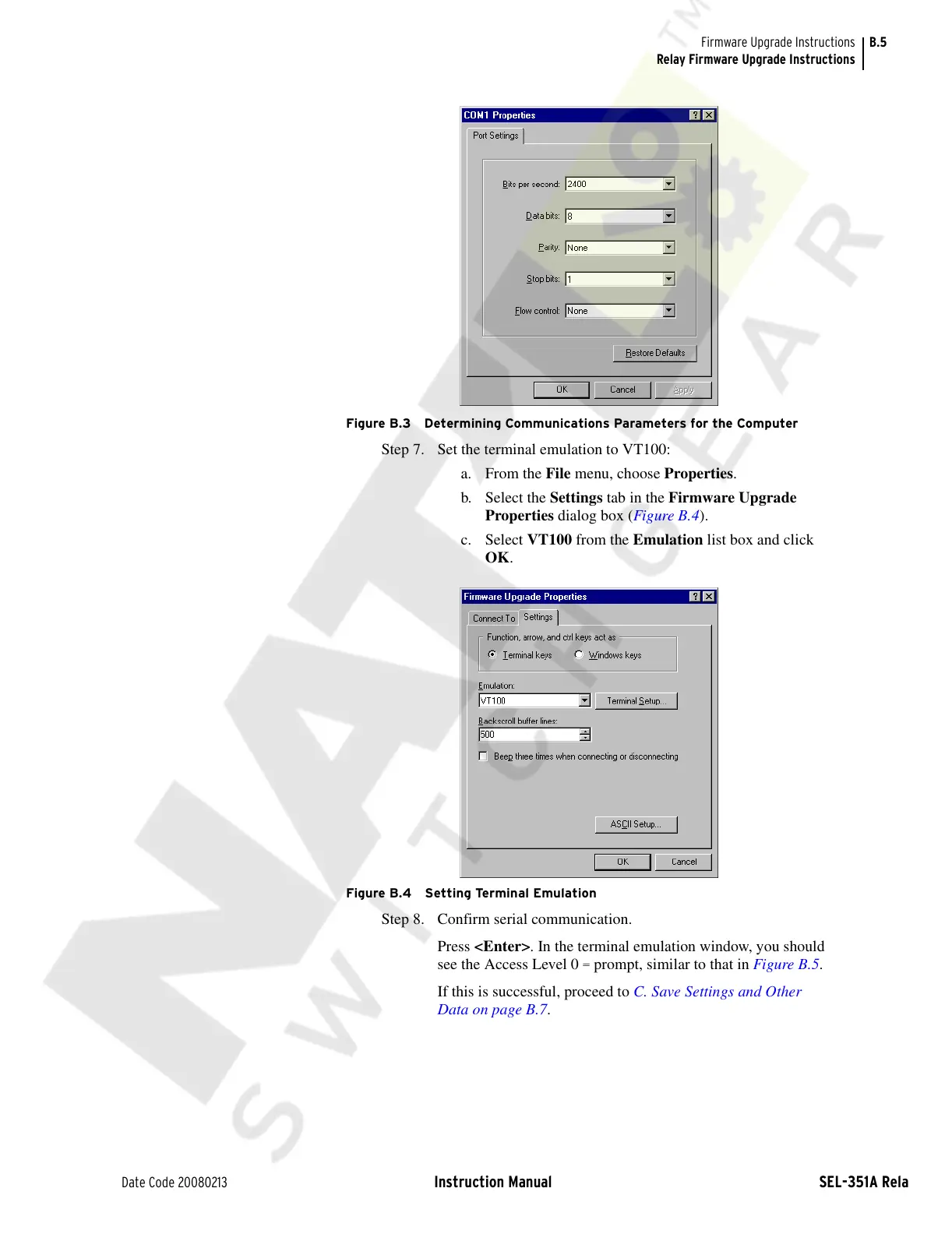

Figure B.3 Determining Communications Parameters for the Computer

Step 7. Set the terminal emulation to VT100:

a. From the File menu, choose Properties.

b. Select the Settings tab in the Firmware Upgrade

Properties dialog box (Figure B.4).

c. Select VT100 from the Emulation list box and click

OK.

Figure B.4 Setting Terminal Emulation

Step 8. Confirm serial communication.

Press <Enter>. In the terminal emulation window, you should

see the Access Level 0

= prompt, similar to that in Figure B.5.

If this is successful, proceed to C. Save Settings and Other

Data on page B.7.
