Loss-of-Potential, Load Encroachment, and Directional Element Logic
Directional Control for Neutral-Ground and Residual-Ground Overcurrent Elements (Not in SEL-351A-1)
In most communications-assisted trip schemes, the levels are set as follows:
➤ Level 1 overcurrent elements set direction forward (DIR1 = F)
➤ Level 2 overcurrent elements set direction forward (DIR2 = F)
➤ Level 3 overcurrent elements set direction reverse (DIR3 = R)
If a level direction setting (e.g., DIR1) is set:
DIR1 = N (nondirectional)
then the corresponding Level 1 directional control outputs in Figure 4.17 and
Figure 4.18 assert to logical 1. The referenced Level 1 overcurrent elements in
Figure 4.17 and Figure 4.18 are then not controlled by the directional control
logic.
See the beginning of Directional Control Settings (Not in SEL-351A-1) on
page 4.38 for discussion of the operation of level direction settings DIR1–
DIR4 when the directional control enable setting E32 is set to E32 = N.
In some applications, level direction settings DIR1–DIR4 are not flexible
enough in assigning the desired direction for certain overcurrent elements.
Directional Control Provided by Torque Control Settings (Not in SEL-351A-1)
on page 4.57 describes how to avoid this limitation for special cases.
q From Figure 4.1; w from Figure 4.7; e to Figure 4.9 and Figure 4.20;
r to Figure 4.20 and Figure 4.21; t to Figure 4.9, Table 4.1, and Table 4 .2 .

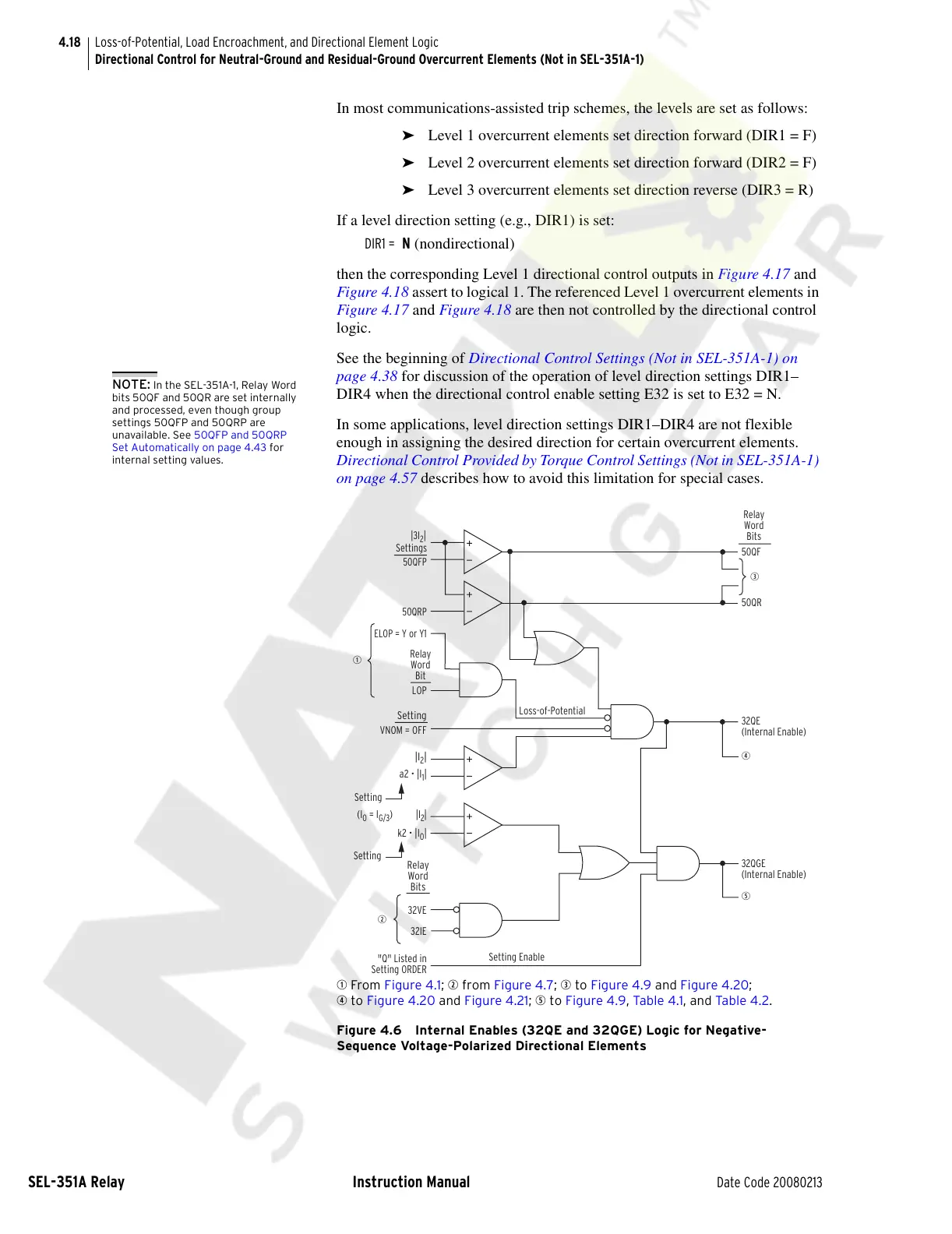

Figure 4.6 Internal Enables (32QE and 32QGE) Logic for Negative-
Sequence Voltage-Polarized Directional Elements
