Schweitzer Engineering Laboratories SEL-351A - Figure 3.22 Single-Phase and Three-Phase Voltage Elements (Wye-Connected Pts)

To Next Page

To Previous Page

3.31

Date Code 20080213 Instruction Manual SEL-351A Relay

Overcurrent, Voltage, Synchronism Check, and Frequency Elements

Voltage Elements

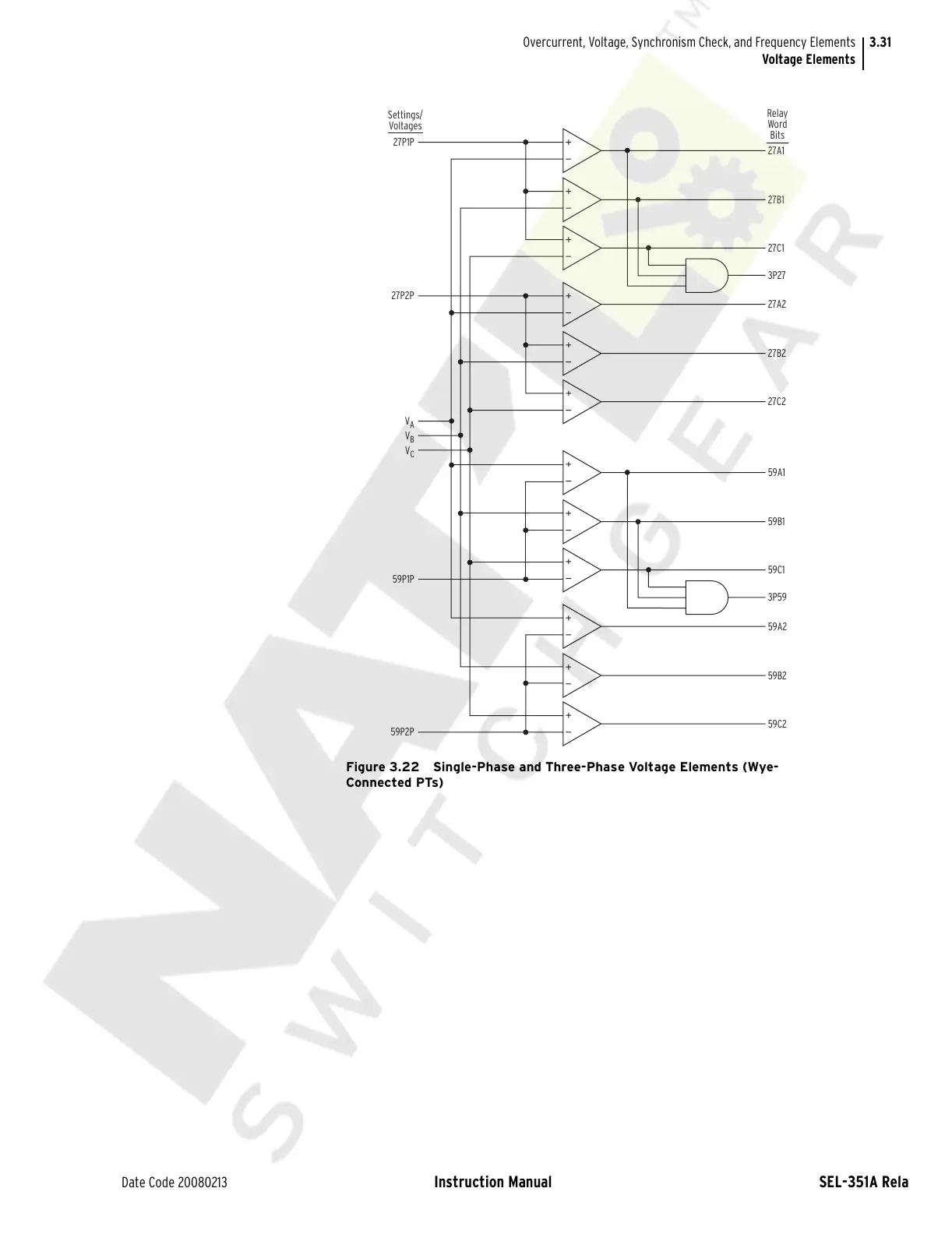

Figure 3.22 Single-Phase and Three-Phase Voltage Elements (Wye-

Connected PTs)

27A1

27B1

27C1

3P27

27A2

27B2

27C2

59A1

59B1

59C1

3P59

59A2

59B2

59C2

27P1P

27P2P

59P1P

59P2P

Settings/

Voltages

Relay

Word

Bits

Courtesy of NationalSwitchgear.com
