Standard Event Reports and SER
Example Standard 15-Cycle Event Report
EVE L2 <Enter>
FEEDER 1 Date: 02/18/02 Time: 17:57:22.114
STATION A
FID=SEL-351A-R1xx-V0-Zxxxxxx-D2002xxxx CID=xxxx
Out In
Currents (Amps Pri) Voltages (kV Pri) 1357 135
IA IB IC IN IG VAB VBC VCA VS Vdc Freq 246A 246
[1]
124 -173 16 0 -33 23.9 -14.9 -9.0 0.0 23 59.99 .... ...
148 21 -228 -0 -60 3.4 19.0 -22.4 0.0 23 59.99 .... ...
-124 173 -17 -0 33 -23.9 14.9 9.0 0.0 23 59.99 .... ...
-148 -20 228 0 60 -3.4 -18.9 22.4 0.0 23 59.99 .... ...
[2]
123 -173 17 0 -33 23.9 -14.9 -8.9 -0.0 23 59.99 .... ...
149 20 -228 -0 -59 3.5 18.9 -22.4 -0.0 23 59.99 .... ...
-123 173 -18 -0 33 -23.9 15.0 8.9 0.0 23 59.99 .... ...
-149 -20 228 0 59 -3.5 -18.9 22.4 0.0 23 59.99 .... ...
Protection and Control Elements
51 50 32 67 Dm 27 59 25 81 TS Lcl Rem Ltch SELogic
P P 5 2 ih ZLV Variable
G P PN PN PP PPV 9S 7135 7mo lOd 13571357O1357 1111111
ABCPNG2QPP QG PNGQ QG P2SP21QS VFA B246 9et dPc 24682468C2468 1234567890123456
[1]
.......... .. .... .. ........ ... .... L.1 ... ............. ................
.......... .. .... .. ........ ... .... L.1 ... ............. ................
.......... .. .... .. ........ ... .... L.1 ... ............. ................
.......... .. .... .. ........ ... .... L.1 ... ............. ................
[2]
.......... .. .... .. ........ ... .... L.1 ... ............. ................
.......... .. .... .. ........ ... .... L.1 ... ............. ................
.......... .. .... .. ........ ... .... L.1 ... ............. ................
.......... .. .... .. ........ ... .... L.1 ... ............. ................
Event: TRIG Location: $$$$$$$ Shot: 1 Frequency: 59.99
Targets:
Currents (A Pri), ABCNGQ: 191 173 229 0 68 88
Group 1
Group Settings:
****** NOT SHOWN *****

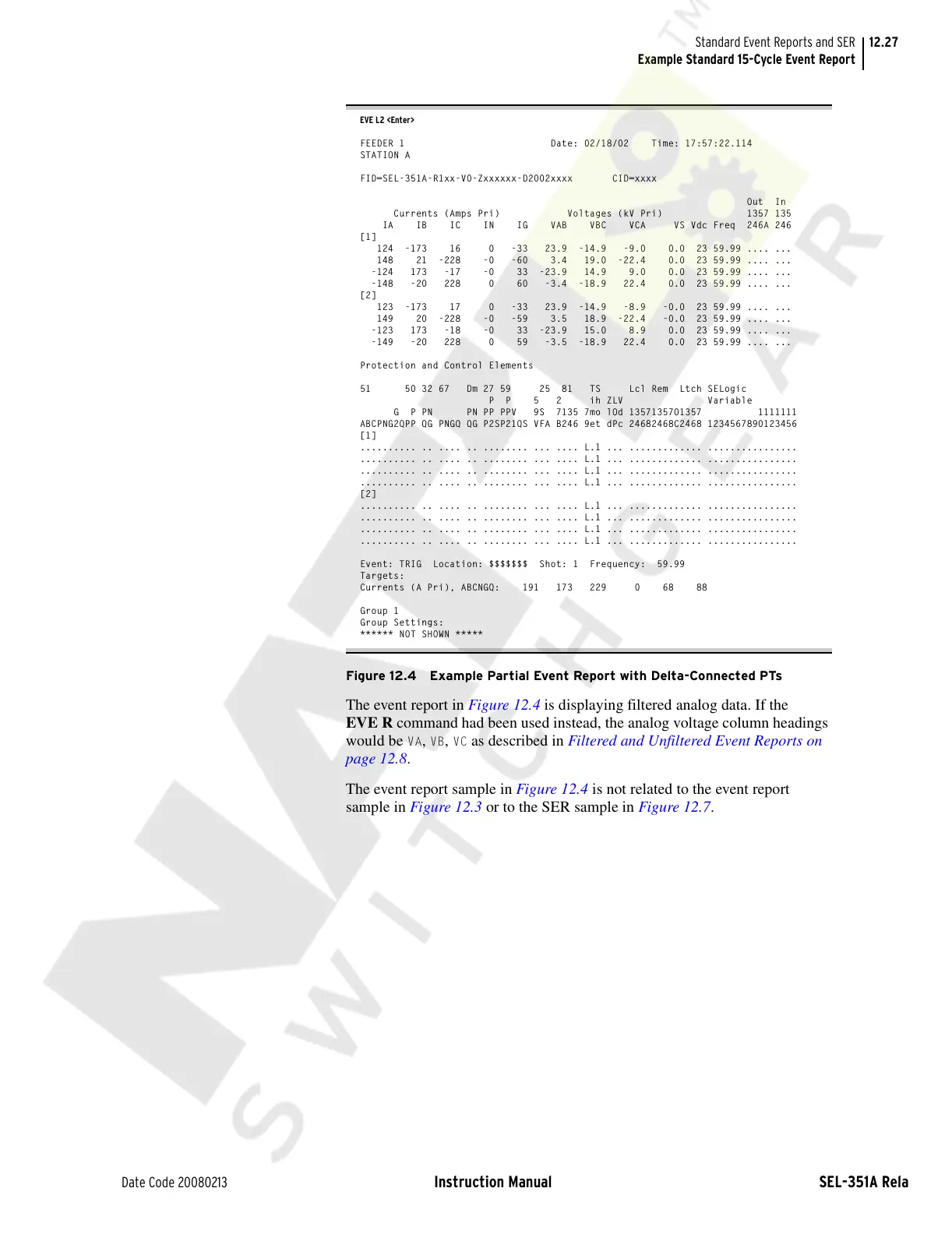

Figure 12.4 Example Partial Event Report with Delta-Connected PTs
The event report in Figure 12.4 is displaying filtered analog data. If the
EVE R command had been used instead, the analog voltage column headings
would be
VA, VB, VC as described in Filtered and Unfiltered Event Reports on
page 12.8.
The event report sample in Figure 12.4 is not related to the event report
sample in Figure 12.3 or to the SER sample in Figure 12.7.
