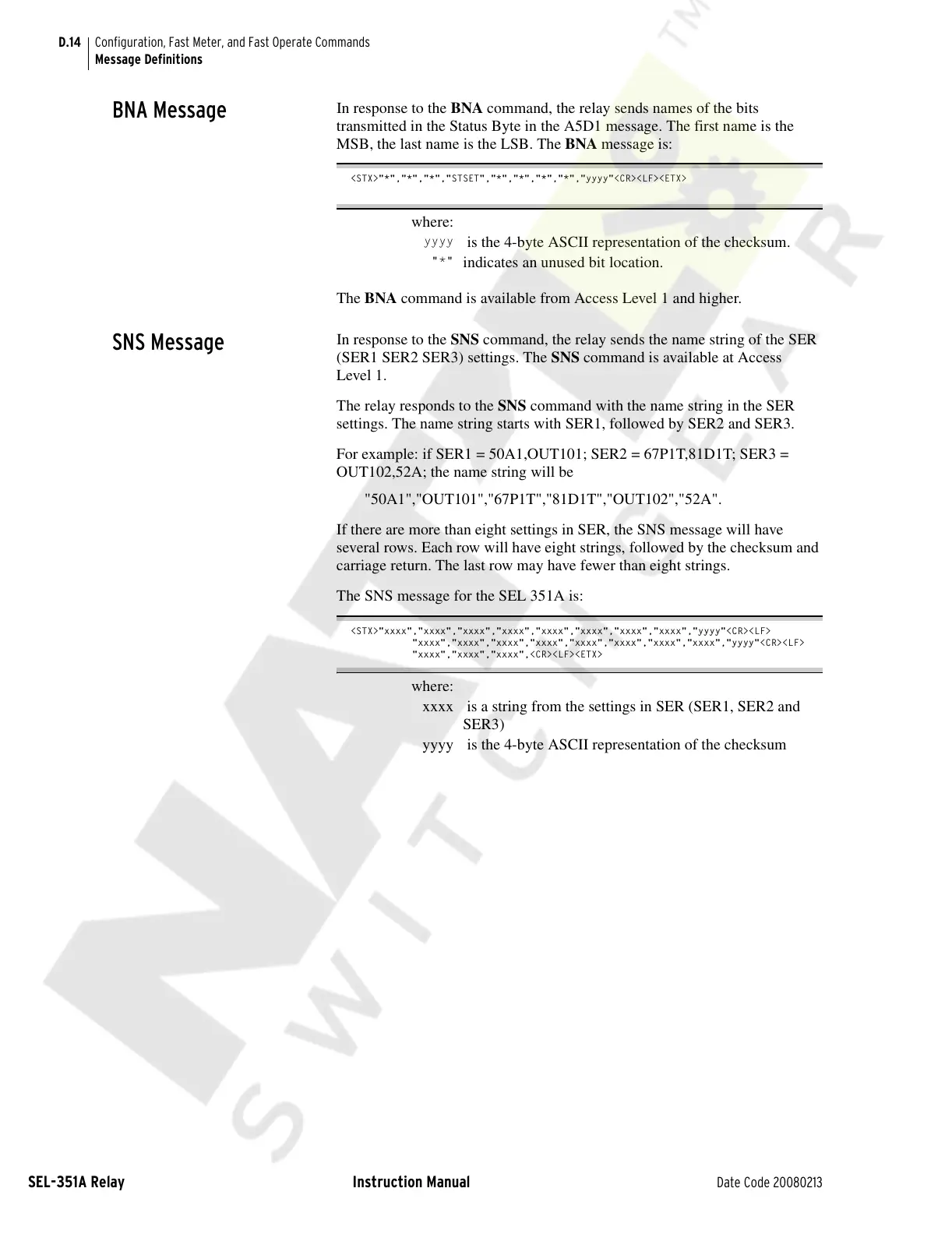

D.14
SEL-351A Relay Instruction Manual Date Code 20080213
Configuration, Fast Meter, and Fast Operate Commands
Message Definitions
BNA Message
In response to the BNA command, the relay sends names of the bits
transmitted in the Status Byte in the A5D1 message. The first name is the
MSB, the last name is the LSB. The BNA message is:
<STX>"*","*","*","STSET","*","*","*","*","yyyy"<CR><LF><ETX>
The BNA command is available from Access Level 1 and higher.
SNS Message
In response to the SNS command, the relay sends the name string of the SER
(SER1 SER2 SER3) settings. The SNS command is available at Access
Level 1.
The relay responds to the SNS command with the name string in the SER
settings. The name string starts with SER1, followed by SER2 and SER3.
For example: if SER1 = 50A1,OUT101; SER2 = 67P1T,81D1T; SER3 =
OUT102,52A; the name string will be
"50A1","OUT101","67P1T","81D1T","OUT102","52A".
If there are more than eight settings in SER, the SNS message will have
several rows. Each row will have eight strings, followed by the checksum and
carriage return. The last row may have fewer than eight strings.
The SNS message for the SEL 351A is:
<STX>"xxxx","xxxx","xxxx","xxxx","xxxx","xxxx","xxxx","xxxx","yyyy"<CR><LF>
"xxxx","xxxx","xxxx","xxxx","xxxx","xxxx","xxxx","xxxx","yyyy"<CR><LF>
"xxxx","xxxx","xxxx",<CR><LF><ETX>
where:
yyyy
is the 4-byte ASCII representation of the checksum.
"*"
indicates an unused bit location.
where:
xxxx is a string from the settings in SER (SER1, SER2 and
SER3)
yyyy is the 4-byte ASCII representation of the checksum
