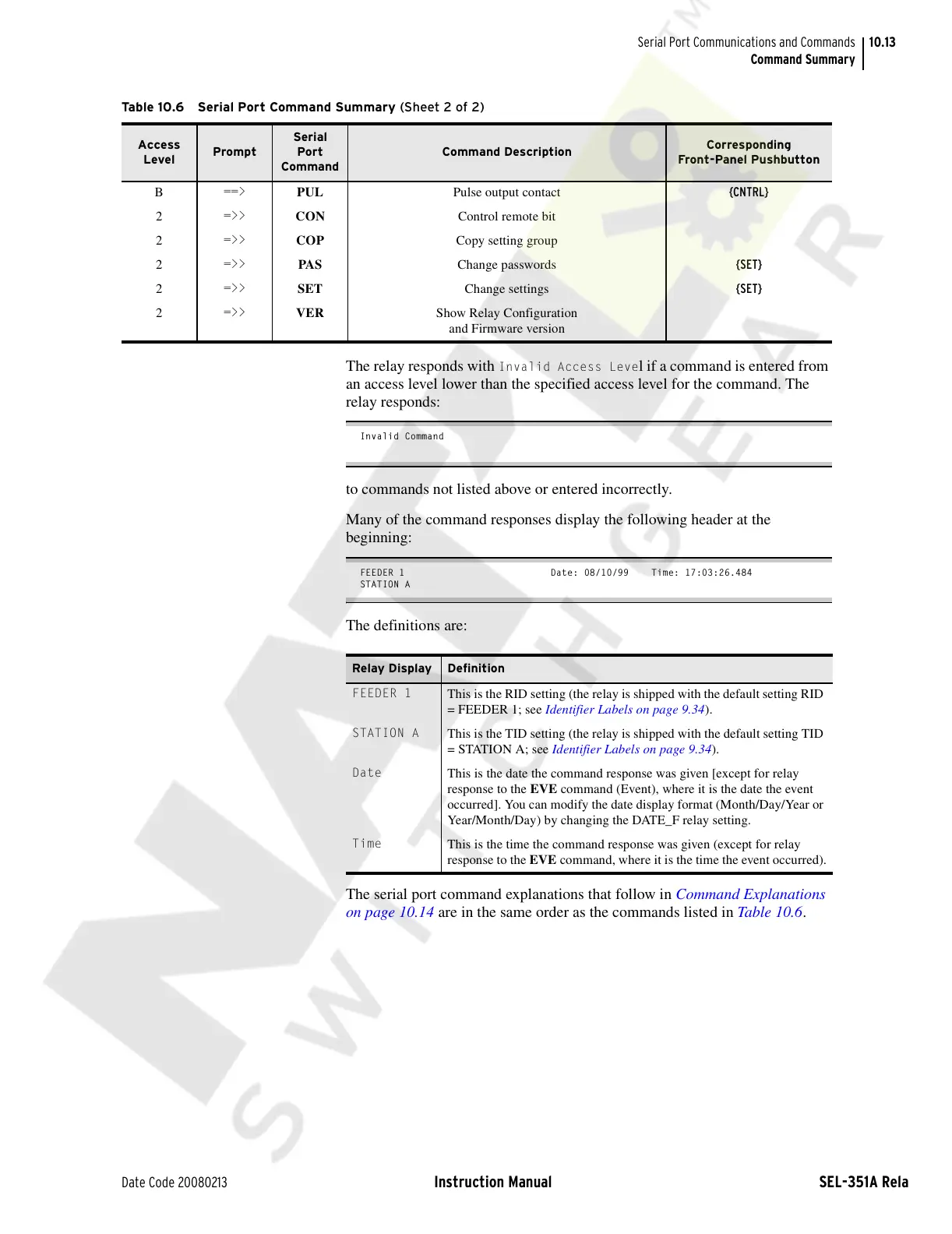

10.13
Date Code 20080213 Instruction Manual SEL-351A Relay
Serial Port Communications and Commands
Command Summary
The relay responds with Invalid Access Level if a command is entered from
an access level lower than the specified access level for the command. The
relay responds:
Invalid Command
to commands not listed above or entered incorrectly.
Many of the command responses display the following header at the
beginning:
FEEDER 1 Date: 08/10/99 Time: 17:03:26.484
STATION A
The definitions are:
The serial port command explanations that follow in Command Explanations
on page 10.14 are in the same order as the commands listed in Table 1 0.6.
B
==>
PUL Pulse output contact {CNTRL}
2
=>>
CON Control remote bit
2
=>>
COP Copy setting group
2
=>>
PAS Change passwords {SET}
2
=>>
SET Change settings {SET}
2
=>>
VER Show Relay Configuration
and Firmware version
Table 10.6 Serial Port Command Summary (Sheet 2 of 2)
Access
Level
Prompt
Serial
Port
Command
Command Description
Corresponding
Front-Panel Pushbutton
Relay Display Definition
FEEDER 1
This is the RID setting (the relay is shipped with the default setting RID
= FEEDER 1; see Identifier Labels on page 9.34).
STATION A
This is the TID setting (the relay is shipped with the default setting TID
= STATION A; see Identifier Labels on page 9.34).
Date
This is the date the command response was given [except for relay
response to the EVE command (Event), where it is the date the event
occurred]. You can modify the date display format (Month/Day/Year or
Year/Month/Day) by changing the DATE_F relay setting.
Time
This is the time the command response was given (except for relay
response to the EVE command, where it is the time the event occurred).
