Inputs, Outputs, Timers, and Other Control Logic
Rotating Default Display (Only on Models With LCD)
MVRADI
a
M V R A I D E M = x . x x x A-phase demand megavars in
MVRAPI
a
M V R A I P K = x . x x x A-phase peak demand megavars in
MVRBDI
a
M V R B I D E M = x . x x x B-phase demand megavars in
MVRBPI
a
M V R B I P K = x . x x x B-phase peak demand megavars in
MVRCDI
a
M V R C I D E M = x . x x x C-phase demand megavars in
MVRCPI
a
M V R C I P K = x . x x x C-phase peak demand megavars in
MVR3DI M V R 3 I D E M = x . x x x three-phase demand megavars in
MVR3PI M V R 3 I P K = x . x x x three-phase peak demand megavars in
MWADO
a
M W A O D E M = x . x x x A-phase demand megawatts out
MWAPO
a
M W A O P K = x . x x x A-phase peak demand megawatts out
MWBDO
a
M W B O D E M = x . x x x B-phase demand megawatts out
MWBPO
a
M W B O P K = x . x x x B-phase peak demand megawatts out
MWCDO
a
M W C O D E M = x . x x x C-phase demand megawatts out
MWCPO
a
M W C O P K = x . x x x C-phase peak demand megawatts out
MW3DO M W 3 O D E M = x . x x x three-phase demand megawatts out
MW3PO M W 3 O P K = x . x x x three-phase peak demand megawatts out
MVRADO
a
M V R A O D E M = x . x x x A-phase demand megavars out
MVRAPO
a
M V R A O P K = x . x x x A-phase peak demand megavars out
MVRBDO
a
M V R B O D E M = x . x x x B-phase demand megavars out
MVRBPO
a
M V R B O P K = x . x x x B-phase peak demand megavars out
MVRCDO
a
M V R C O D E M = x . x x x C-phase demand megavars out
MVRCPO
a
M V R C O P K = x . x x x C-phase peak demand megavars out
MVR3DO M V R 3 O D E M = x . x x x three-phase demand megavars out
MVR3PO M V R 3 O P K = x . x x x three-phase peak demand megavars out
MWHAI
a
M W h A I N = x x . x x x A-phase megawatt-hours in
MWHAO
a
M W h A O U T = x x . x x x A-phase megawatt-hours out
MWHBI
a
M W h B I N = x x . x x x B-phase megawatt-hours in
MWHBO
a
M W h B O U T = x x . x x x B-phase megawatt-hours out
MWHCI
a
M W h C I N = x x . x x x C-phase megawatt-hours in
MWHCO
a
M W h C O U T = x x . x x x C-phase megawatt-hours out
MWH3I M W h 3 I N = x x . x x x three-phase megawatt-hours in
MWH3O M W h 3 O U T = x x . x x x three-phase megawatt-hours out
MVRHAI
a
M V A R h A I = x x . x x x A-phase megavar-hours in
MVRHAO
a
M V A R h A O = x x . x x x A-phase megavar-hours out
MVRHBI
a
M V A Rh B I=xx . xxx B-phase megavar-hours in
MVRHBO
a
M V A R h B O = x x . x x x B-phase megavar-hours out
MVRHCI
a
M V A Rh C I=xx . xxx C-phase megavar-hours in
MVRHCO
a
M V A R h C O = x x . x x x C-phase megavar-hours out

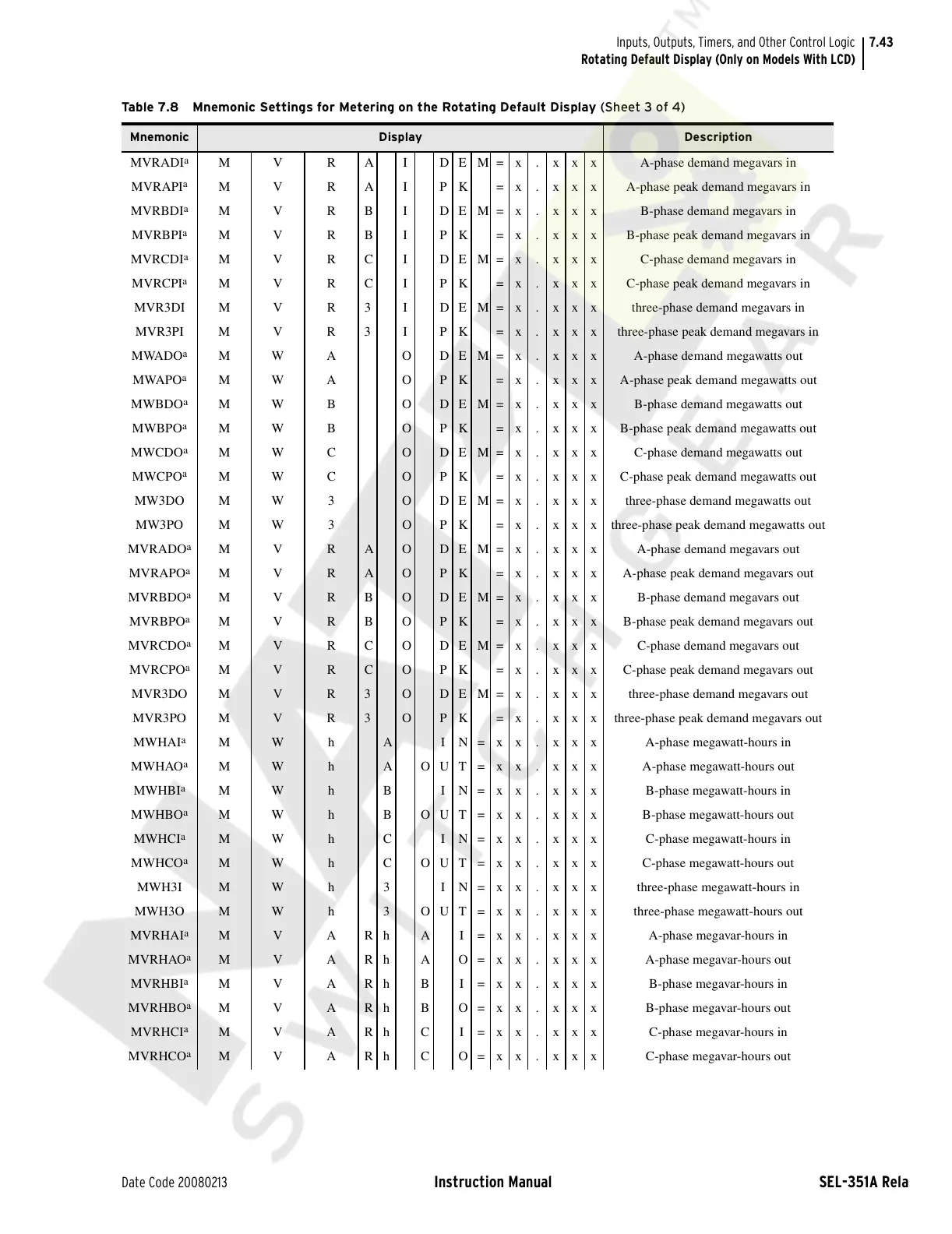

Table 7.8 Mnemonic Settings for Metering on the Rotating Default Display (Sheet 3 of 4)
Mnemonic Display Description
