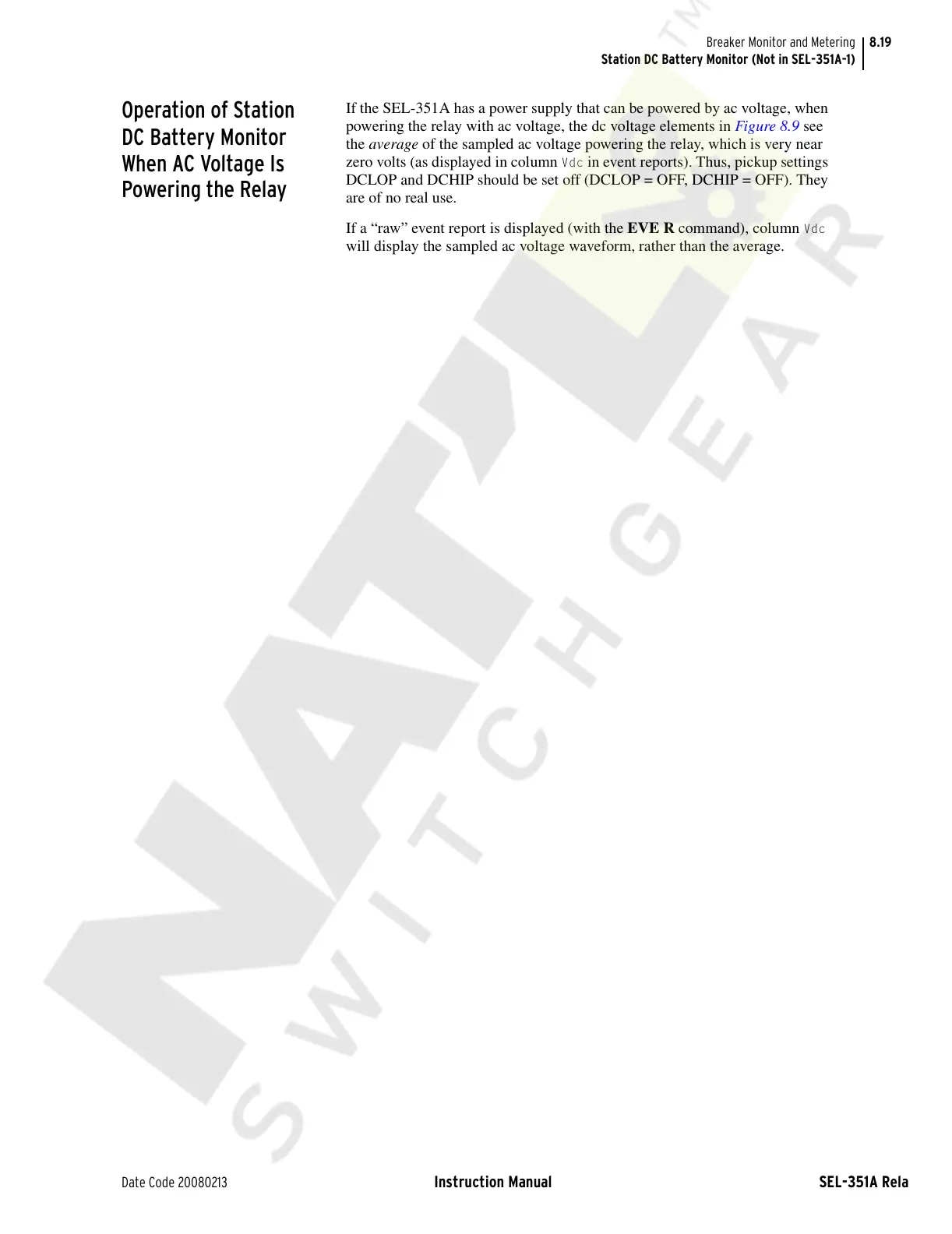

8.19

Date Code 20080213 Instruction Manual SEL-351A Relay

Breaker Monitor and Metering

Station DC Battery Monitor (Not in SEL-351A-1)

Operation of Station

DC Battery Monitor

When AC Voltage Is

Powering the Relay

If the SEL-351A has a power supply that can be powered by ac voltage, when

powering the relay with ac voltage, the dc voltage elements in Figure 8.9 see

the average of the sampled ac voltage powering the relay, which is very near

zero volts (as displayed in column

Vdc in event reports). Thus, pickup settings

DCLOP and DCHIP should be set off (DCLOP = OFF, DCHIP = OFF). They

are of no real use.

If a “raw” event report is displayed (with the EVE R command), column

Vdc

will display the sampled ac voltage waveform, rather than the average.
