9.19
Date Code 20080213 Instruction Manual SEL-351A Relay
Setting the Relay
Relay Word Bits (Used in SEL
OGIC Control Equations)
5 50A 50A1 + 50A2 + 50A3 + 50A4 (see Figure 3.4)
50B 50B1 + 50B2 + 50B3 + 50B4 (see Figure 3.4)
50C 50C1 + 50C2 + 50C3 + 50C4 (see Figure 3.4)
51A A-phase current above pickup setting 51AP for
A phase time-overcurrent element 51AT (see Figure 3.15)
Testing, Control
51AT A-phase time-overcurrent element 51AT timed out (see Figure 3.15) Tripping
51AR A-phase time-overcurrent element 51AT reset (see Figure 3.15)Testing
51B B-phase current above pickup setting 51BP for B phase time-overcurrent
element 51BT (see Figure 3.16)
Testing, Control
51BT B-phase time-overcurrent element 51BT timed out (see Figure 3.16) Tripping
6 51BR B-phase time-overcurrent element 51BT reset (see Figure 3.16)Testing
51C C-phase current above pickup setting 51CP for C phase time-overcurrent
element 51CT (see Figure 3.17)
Testing, Control
51CT C-phase time-overcurrent element 51CT timed out (see Figure 3.17) Tripping
51CR C-phase time-overcurrent element 51CT reset (see Figure 3.17)Testing
51P Maximum phase current above pickup setting 51PP
for phase time-overcurrent element 51PT (see Figure 3.14)
Testing, Control
51PT Phase time-overcurrent element 51PT timed out (see Figure 3.14) Tripping
51PR Phase time-overcurrent element 51PT reset (see Figure 3.14)Testing
51N Neutral-ground current (channel IN) above pickup setting 51NP
for neutral-ground time-overcurrent element 51NT (see Figure 3.18)
Testing, Control
7 51NT Neutral-ground time-overcurrent element 51NT timed out
(see Figure 3.18)
Tripping
51NR Neutral-ground time-overcurrent element 51NT reset (see Figure 3.18)Testing
51G Residual-ground current above pickup setting 51GP for residual-ground
time-overcurrent element 51GT (see Figure 3.19)
Testing, Control
51GT Residual-ground time-overcurrent element 51GT timed out
(see Figure 3.19)
Tripping
51GR Residual-ground time-overcurrent element 51GT reset (see Figure 3.19)Testing
51Q1
a
Negative-sequence current above pickup setting 51QP for negative-
sequence time-overcurrent element 51QT (see Figure 3.21)
Testing, Control
51QT
a
Negative-sequence time-overcurrent element 51QT timed out
(see Figure 3.21)
Tripping
51QR Negative-sequence time-overcurrent element 51QT reset
(see Figure 3.21)
Testing

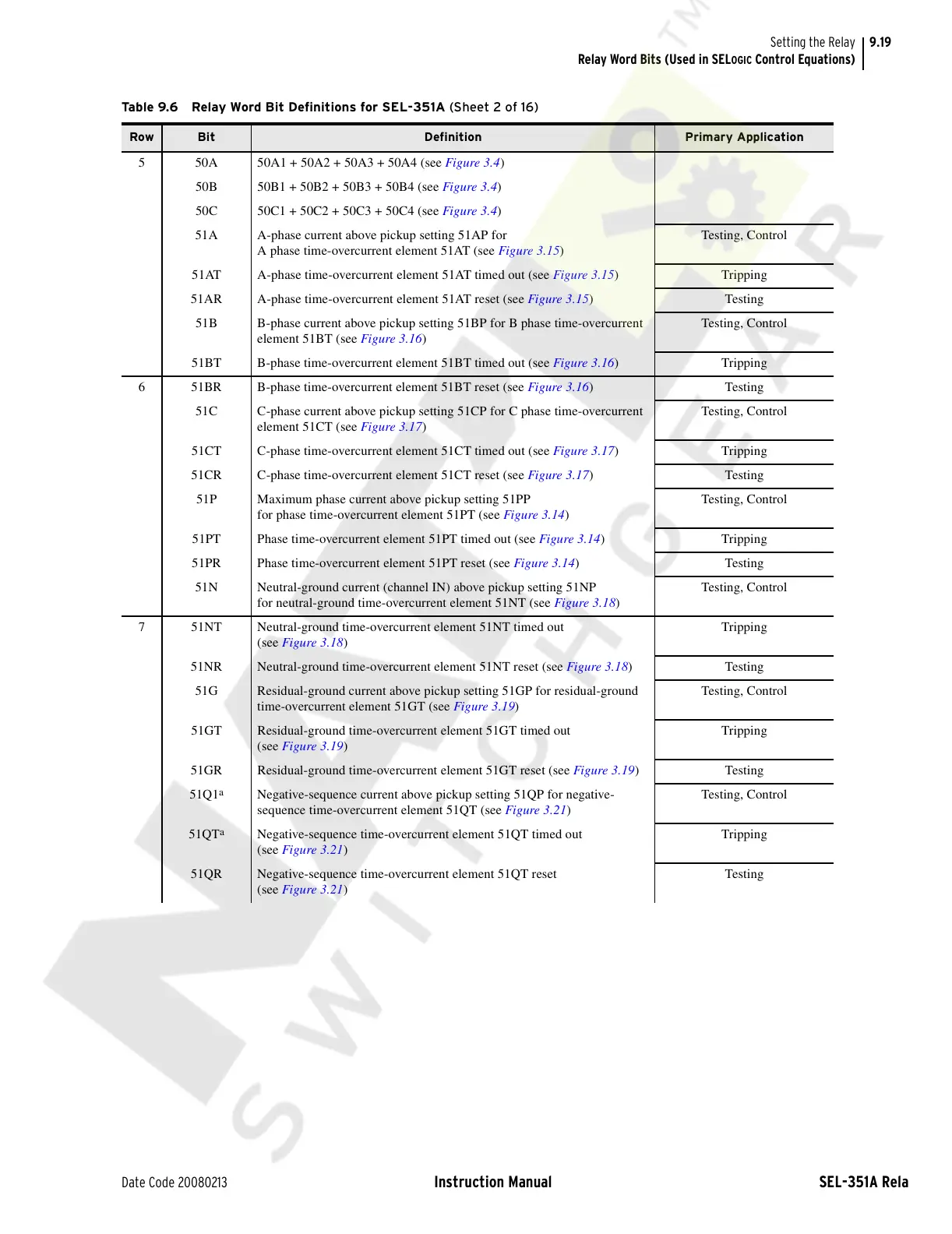

Table 9.6 Relay Word Bit Definitions for SEL-351A (Sheet 2 of 16)
Row Bit Definition Primary Application
