9.28
SEL-351A Relay Instruction Manual Date Code 20080213
Setting the Relay
Relay Word Bits (Used in SEL
OGIC Control Equations)
32 SV5 SELOGIC control equation variable timer input SV5 asserted
(see Figure 7.23)
Testing, Seal-in functions, etc.
(see Figure 7.25)
SV6 SEL
OGIC control equation variable timer input SV6 asserted
(see Figure 7.23)
SV7 SEL
OGIC control equation variable timer input SV7 asserted
(see Figure 7.24)
SV8 SEL
OGIC control equation variable timer input SV8 asserted
(see Figure 7.24)
SV5T SEL
OGIC control equation variable timer output SV5T asserted
(see Figure 7.23)
Control
SV6T SEL
OGIC control equation variable timer output SV6T asserted
(see Figure 7.23)
SV7T SEL
OGIC control equation variable timer output SV7T asserted
(see Figure 7.24)
SV8T SEL
OGIC control equation variable timer output SV8T asserted
(see Figure 7.24)
33 SV9 SEL
OGIC control equation variable timer input SV9 asserted
(see Figure 7.24)
Testing, Seal-in functions, etc.
(see Figure 7.25)
SV10 SEL
OGIC control equation variable timer input SV10 asserted
(see Figure 7.24)
SV11 SEL
OGIC control equation variable timer input SV11 asserted
(see Figure 7.24)
SV12 SEL
OGIC control equation variable timer input SV12 asserted
(see Figure 7.24)
SV9T SEL
OGIC control equation variable timer output SV9T asserted
(see Figure 7.24)
Control
SV10T SEL
OGIC control equation variable timer output SV10T asserted
(see Figure 7.24)
SV11T SEL
OGIC control equation variable timer output SV11T asserted
(see Figure 7.24)
SV12T SEL
OGIC control equation variable timer output SV12T asserted
(see Figure 7.24)
34 SV13 SEL
OGIC control equation variable timer input SV13 asserted
(see Figure 7.24)
Testing, Seal-in functions, etc.
(see Figure 7.25)
SV14 SEL
OGIC control equation variable timer input SV14 asserted
(see Figure 7.24)
SV15 SEL
OGIC control equation variable timer input SV15 asserted
(see Figure 7.24)
SV16 SEL
OGIC control equation variable timer input SV16 asserted
(see Figure 7.24)
SV13T SEL
OGIC control equation variable timer output SV13T asserted
(see Figure 7.24)
Control
SV14T SEL
OGIC control equation variable timer output SV14T asserted
(see Figure 7.24)
SV15T SEL
OGIC control equation variable timer output SV15T asserted
(see Figure 7.24)
SV16T SEL
OGIC control equation variable timer output SV16T asserted
(see Figure 7.24)

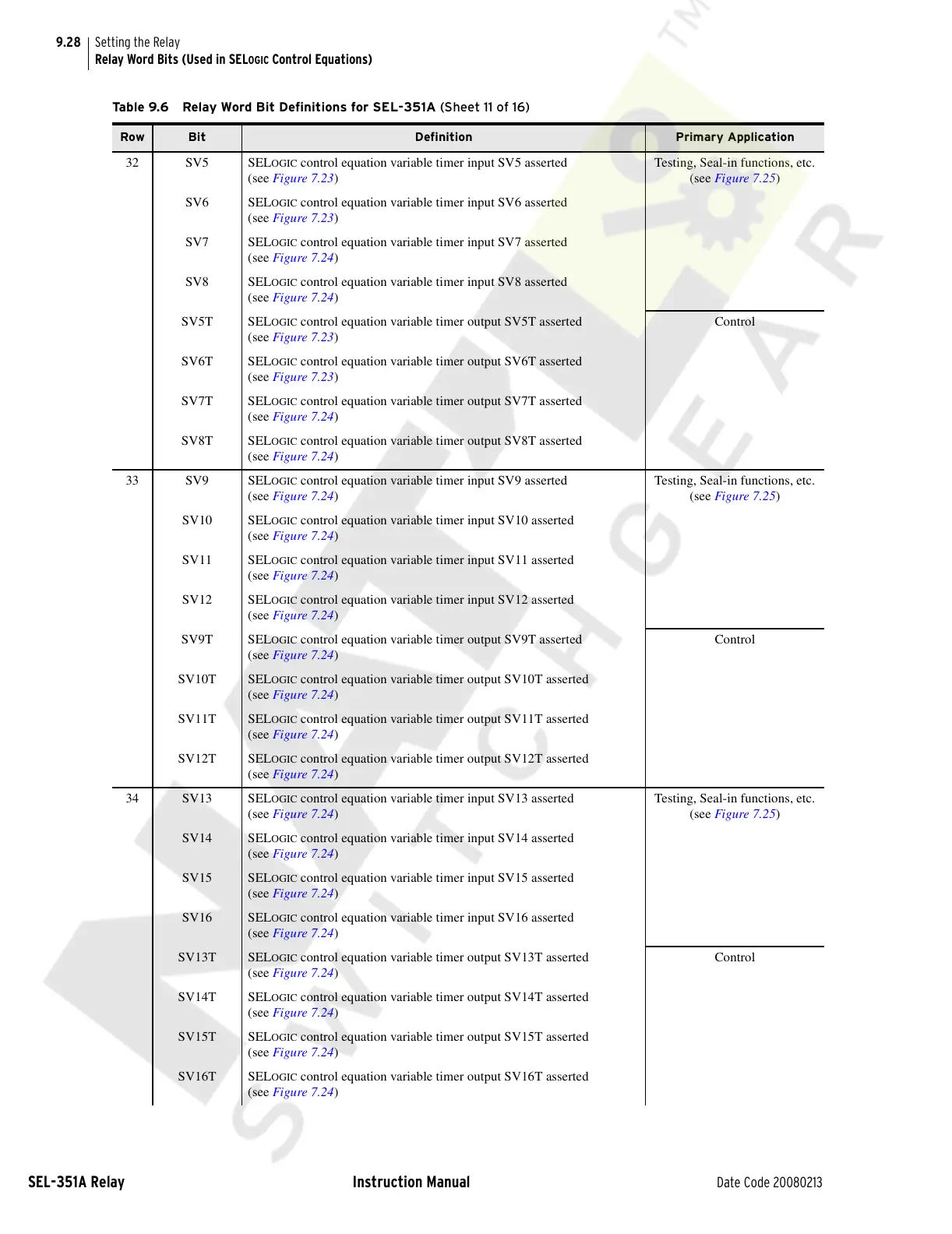

Table 9.6 Relay Word Bit Definitions for SEL-351A (Sheet 11 of 16)
Row Bit Definition Primary Application
