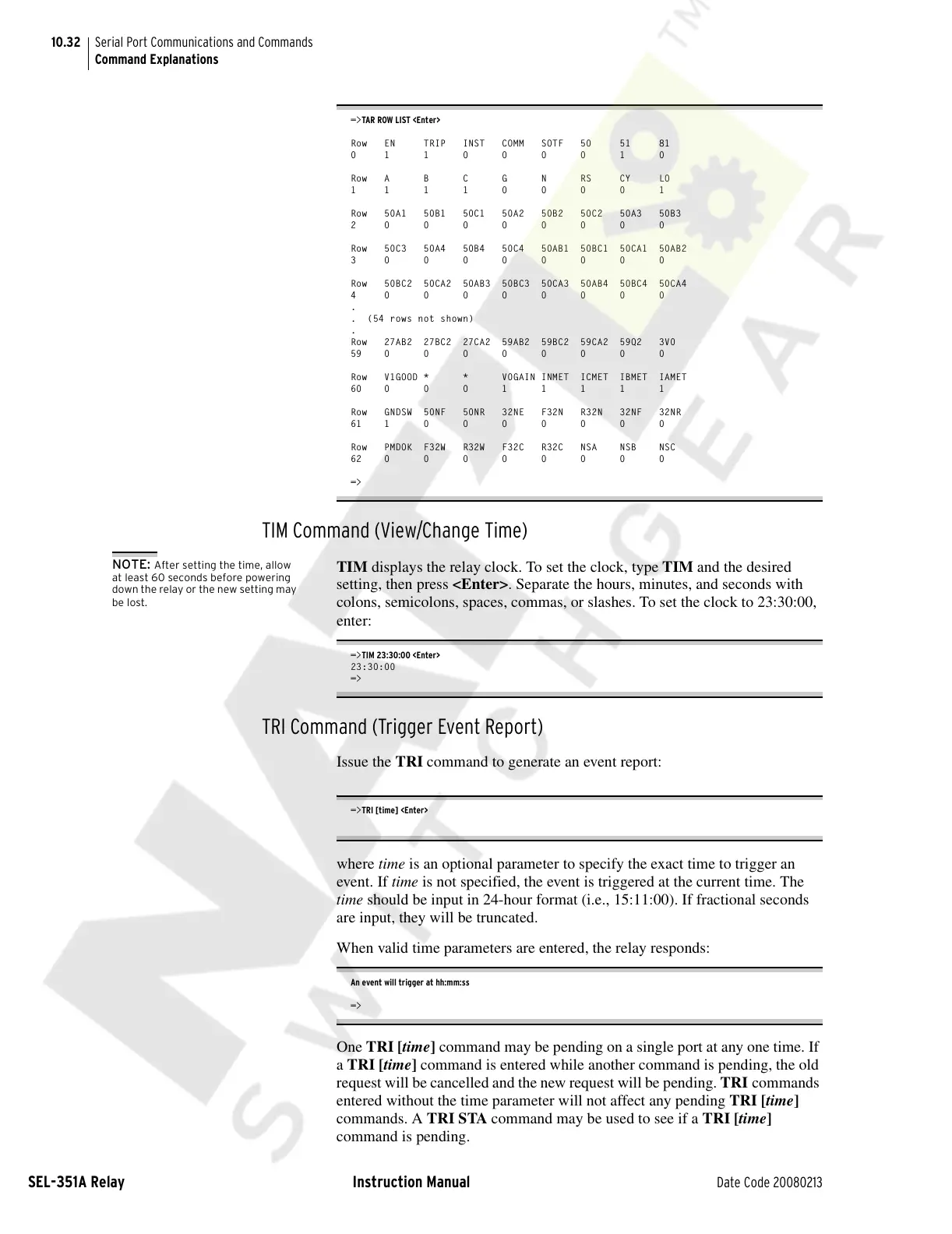

10.32
SEL-351A Relay Instruction Manual Date Code 20080213
Serial Port Communications and Commands
Command Explanations
=>TAR ROW LIST <Enter>
Row EN TRIP INST COMM SOTF 50 51 81
0 1 1 0 0 0 0 1 0
Row A B C G N RS CY LO
1 1 1 1 0 0 0 0 1
Row 50A1 50B1 50C1 50A2 50B2 50C2 50A3 50B3
2 0 0 0 0 0 0 0 0
Row 50C3 50A4 50B4 50C4 50AB1 50BC1 50CA1 50AB2
3 0 0 0 0 0 0 0 0
Row 50BC2 50CA2 50AB3 50BC3 50CA3 50AB4 50BC4 50CA4
4 0 0 0 0 0 0 0 0
.
. (54 rows not shown)
.
Row 27AB2 27BC2 27CA2 59AB2 59BC2 59CA2 59Q2 3V0
59 0 0 0 0 0 0 0 0
Row V1GOOD * * V0GAIN INMET ICMET IBMET IAMET
60 0 0 0 1 1 1 1 1
Row GNDSW 50NF 50NR 32NE F32N R32N 32NF 32NR
61 1 0 0 0 0 0 0 0
Row PMDOK F32W R32W F32C R32C NSA NSB NSC
62 0 0 0 0 0 0 0 0
=>
TIM Command (View/Change Time)
NOTE: After setting the time, allow
at least 60 seconds before powering
down the relay or the new setting may
be lost.
TIM displays the relay clock. To set the clock, type TIM and the desired
setting, then press <Enter>. Separate the hours, minutes, and seconds with
colons, semicolons, spaces, commas, or slashes. To set the clock to 23:30:00,
enter:
=>TIM 23:30:00 <Enter>
23:30:00
=>
TRI Command (Trigger Event Report)
Issue the TRI command to generate an event report:
=>TRI [time] <Enter>
where time is an optional parameter to specify the exact time to trigger an
event. If time is not specified, the event is triggered at the current time. The
time should be input in 24-hour format (i.e., 15:11:00). If fractional seconds
are input, they will be truncated.
When valid time parameters are entered, the relay responds:
An event will trigger at hh:mm:ss
=>
One TRI [time] command may be pending on a single port at any one time. If
a TRI [time] command is entered while another command is pending, the old
request will be cancelled and the new request will be pending. TRI commands
entered without the time parameter will not affect any pending TRI [time]
commands. A TRI STA command may be used to see if a TRI [time]
command is pending.
