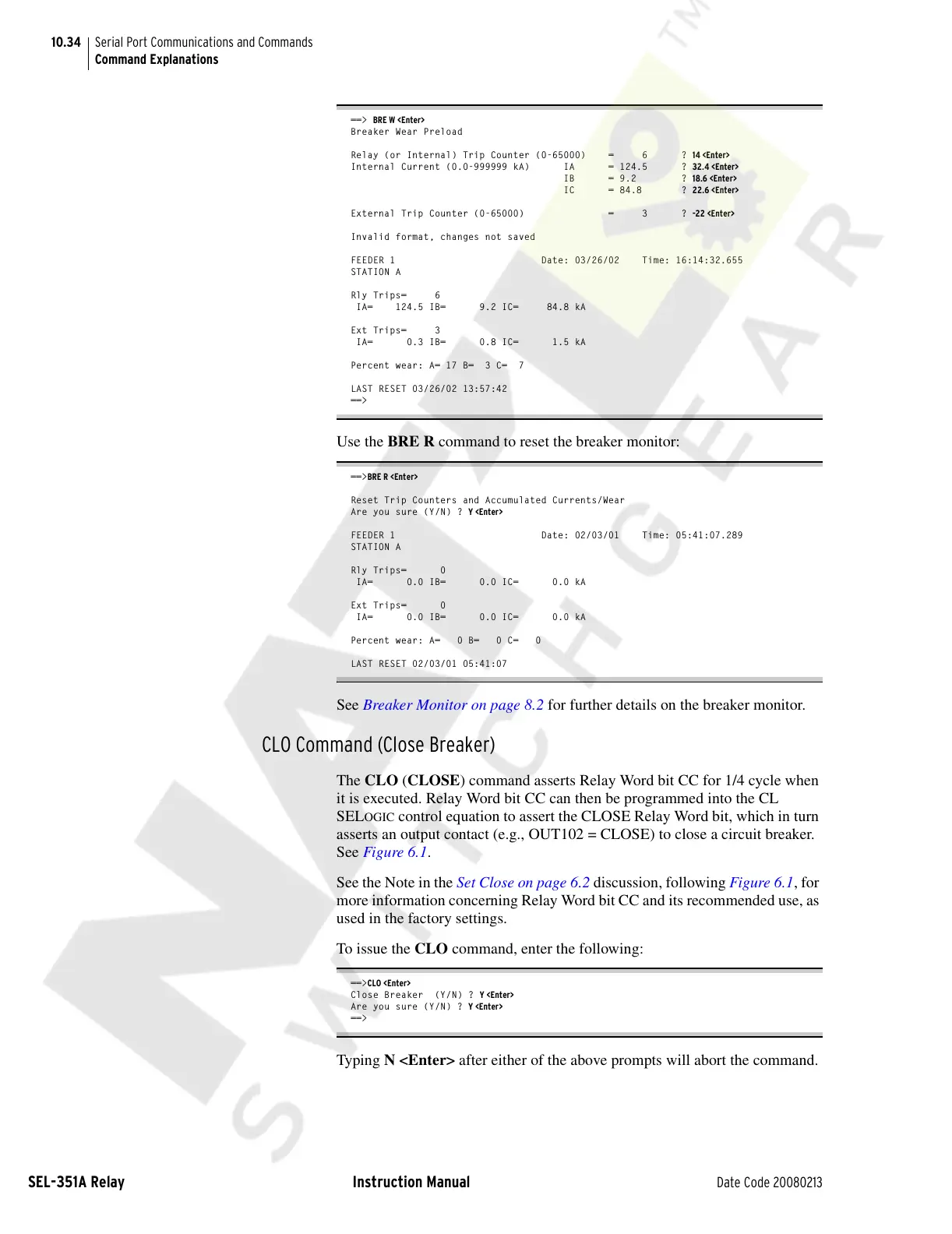

Serial Port Communications and Commands
Command Explanations
==> BRE W <Enter>
Breaker Wear Preload
Relay (or Internal) Trip Counter (0-65000) = 6 ? 14 <Enter>
Internal Current (0.0-999999 kA) IA = 124.5 ? 32.4 <Enter>
IB = 9.2 ? 18.6 <Enter>
IC = 84.8 ? 22.6 <Enter>
External Trip Counter (0-65000) = 3 ? -22 <Enter>
Invalid format, changes not saved
FEEDER 1 Date: 03/26/02 Time: 16:14:32.655
STATION A
Rly Trips= 6
IA= 124.5 IB= 9.2 IC= 84.8 kA
Ext Trips= 3
IA= 0.3 IB= 0.8 IC= 1.5 kA
Percent wear: A= 17 B= 3 C= 7
LAST RESET 03/26/02 13:57:42
==>
Use the BRE R command to reset the breaker monitor:
==>BRE R <Enter>
Reset Trip Counters and Accumulated Currents/Wear
Are you sure (Y/N) ? Y <Enter>
FEEDER 1 Date: 02/03/01 Time: 05:41:07.289
STATION A
Rly Trips= 0
IA= 0.0 IB= 0.0 IC= 0.0 kA
Ext Trips= 0
IA= 0.0 IB= 0.0 IC= 0.0 kA
Percent wear: A= 0 B= 0 C= 0
LAST RESET 02/03/01 05:41:07
See Breaker Monitor on page 8.2 for further details on the breaker monitor.
CLO Command (Close Breaker)
The CLO (CLOSE) command asserts Relay Word bit CC for 1/4 cycle when
it is executed. Relay Word bit CC can then be programmed into the CL
SEL
OGIC control equation to assert the CLOSE Relay Word bit, which in turn
asserts an output contact (e.g., OUT102 = CLOSE) to close a circuit breaker.
See Figure 6.1.
See the Note in the Set Close on page 6.2 discussion, following Figure 6.1, for
more information concerning Relay Word bit CC and its recommended use, as
used in the factory settings.
To issue the CLO command, enter the following:
==>CLO <Enter>
Close Breaker (Y/N) ? Y <Enter>
Are you sure (Y/N) ? Y <Enter>
==>
Typing N <Enter> after either of the above prompts will abort the command.
