12.25

Date Code 20080213 Instruction Manual SEL-351A Relay

Standard Event Reports and SER

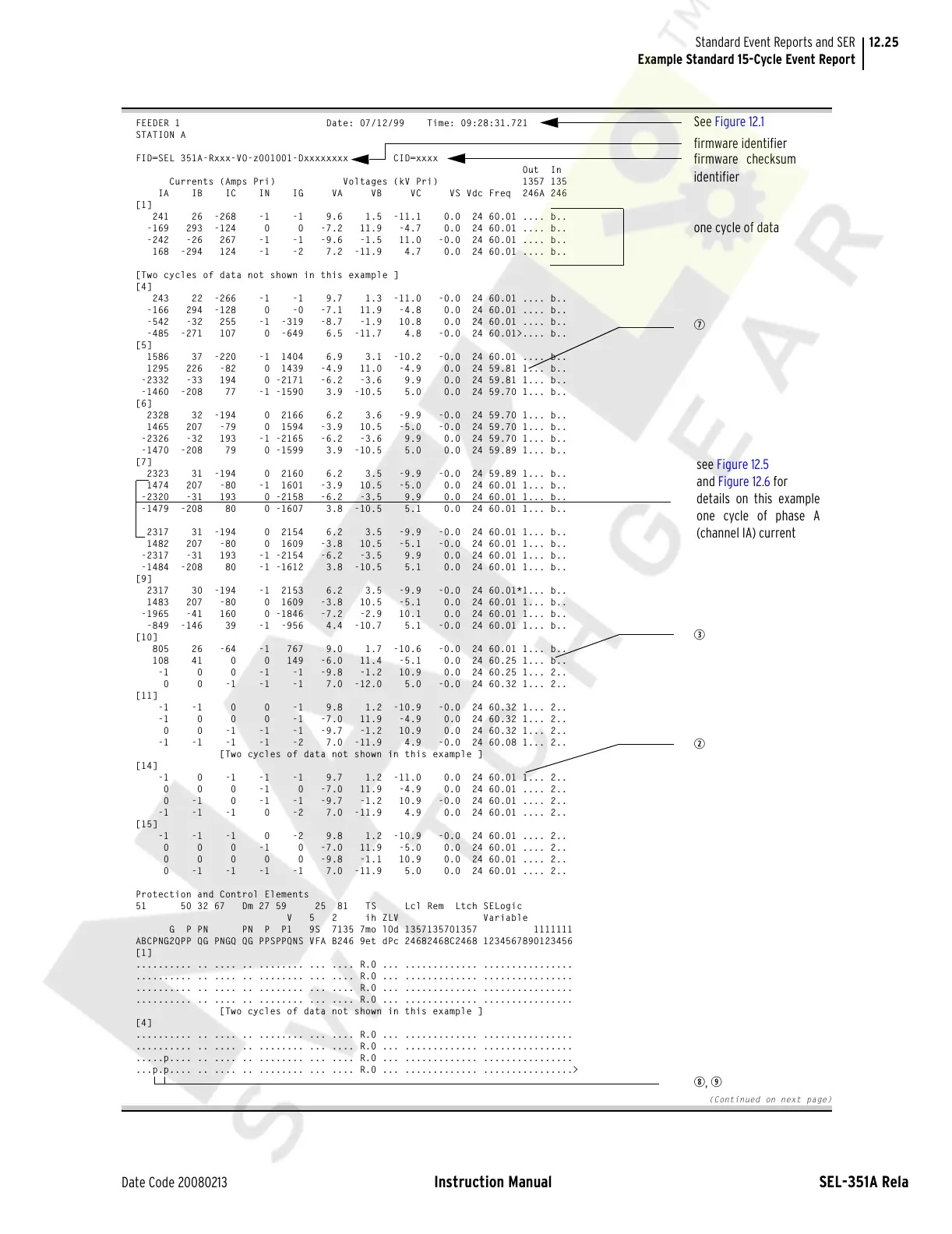

Example Standard 15-Cycle Event Report

FEEDER 1 Date: 07/12/99 Time: 09:28:31.721

STATION A

FID=SEL 351A-Rxxx-VO-z001001-Dxxxxxxxx CID=xxxx

Out In

Currents (Amps Pri) Voltages (kV Pri) 1357 135

IA IB IC IN IG VA VB VC VS Vdc Freq 246A 246

[1]

241 26 -268 -1 -1 9.6 1.5 -11.1 0.0 24 60.01 .... b..

-169 293 -124 0 0 -7.2 11.9 -4.7 0.0 24 60.01 .... b..

-242 -26 267 -1 -1 -9.6 -1.5 11.0 -0.0 24 60.01 .... b..

168 -294 124 -1 -2 7.2 -11.9 4.7 0.0 24 60.01 .... b..

[Two cycles of data not shown in this example ]

[4]

243 22 -266 -1 -1 9.7 1.3 -11.0 -0.0 24 60.01 .... b..

-166 294 -128 0 -0 -7.1 11.9 -4.8 0.0 24 60.01 .... b..

-542 -32 255 -1 -319 -8.7 -1.9 10.8 0.0 24 60.01 .... b..

-485 -271 107 0 -649 6.5 -11.7 4.8 -0.0 24 60.01>.... b..

[5]

1586 37 -220 -1 1404 6.9 3.1 -10.2 -0.0 24 60.01 .... b..

1295 226 -82 0 1439 -4.9 11.0 -4.9 0.0 24 59.81 1... b..

-2332 -33 194 0 -2171 -6.2 -3.6 9.9 0.0 24 59.81 1... b..

-1460 -208 77 -1 -1590 3.9 -10.5 5.0 0.0 24 59.70 1... b..

[6]

2328 32 -194 0 2166 6.2 3.6 -9.9 -0.0 24 59.70 1... b..

1465 207 -79 0 1594 -3.9 10.5 -5.0 -0.0 24 59.70 1... b..

-2326 -32 193 -1 -2165 -6.2 -3.6 9.9 0.0 24 59.70 1... b..

-1470 -208 79 0 -1599 3.9 -10.5 5.0 0.0 24 59.89 1... b..

[7]

2323 31 -194 0 2160 6.2 3.5 -9.9 -0.0 24 59.89 1... b..

1474 207 -80 -1 1601 -3.9 10.5 -5.0 0.0 24 60.01 1... b..

-2320 -31 193 0 -2158 -6.2 -3.5 9.9 0.0 24 60.01 1... b..

-1479 -208 80 0 -1607 3.8 -10.5 5.1 0.0 24 60.01 1... b..

2317 31 -194 0 2154 6.2 3.5 -9.9 -0.0 24 60.01 1... b..

1482 207 -80 0 1609 -3.8 10.5 -5.1 -0.0 24 60.01 1... b..

-2317 -31 193 -1 -2154 -6.2 -3.5 9.9 0.0 24 60.01 1... b..

-1484 -208 80 -1 -1612 3.8 -10.5 5.1 0.0 24 60.01 1... b..

[9]

2317 30 -194 -1 2153 6.2 3.5 -9.9 -0.0 24 60.01*1... b..

1483 207 -80 0 1609 -3.8 10.5 -5.1 0.0 24 60.01 1... b..

-1965 -41 160 0 -1846 -7.2 -2.9 10.1 0.0 24 60.01 1... b..

-849 -146 39 -1 -956 4.4 -10.7 5.1 -0.0 24 60.01 1... b..

[10]

805 26 -64 -1 767 9.0 1.7 -10.6 -0.0 24 60.01 1... b..

108 41 0 0 149 -6.0 11.4 -5.1 0.0 24 60.25 1... b..

-1 0 0 -1 -1 -9.8 -1.2 10.9 0.0 24 60.25 1... 2..

0 0 -1 -1 -1 7.0 -12.0 5.0 -0.0 24 60.32 1... 2..

[11]

-1 -1 0 0 -1 9.8 1.2 -10.9 -0.0 24 60.32 1... 2..

-1 0 0 0 -1 -7.0 11.9 -4.9 0.0 24 60.32 1... 2..

0 0 -1 -1 -1 -9.7 -1.2 10.9 0.0 24 60.32 1... 2..

-1 -1 -1 -1 -2 7.0 -11.9 4.9 -0.0 24 60.08 1... 2..

[Two cycles of data not shown in this example ]

[14]

-1 0 -1 -1 -1 9.7 1.2 -11.0 0.0 24 60.01 1... 2..

0 0 0 -1 0 -7.0 11.9 -4.9 0.0 24 60.01 .... 2..

0 -1 0 -1 -1 -9.7 -1.2 10.9 -0.0 24 60.01 .... 2..

-1 -1 -1 0 -2 7.0 -11.9 4.9 0.0 24 60.01 .... 2..

[15]

-1 -1 -1 0 -2 9.8 1.2 -10.9 -0.0 24 60.01 .... 2..

0 0 0 -1 0 -7.0 11.9 -5.0 0.0 24 60.01 .... 2..

0 0 0 0 0 -9.8 -1.1 10.9 0.0 24 60.01 .... 2..

0 -1 -1 -1 -1 7.0 -11.9 5.0 0.0 24 60.01 .... 2..

Protection and Control Elements

51 50 32 67 Dm 27 59 25 81 TS Lcl Rem Ltch SELogic

V 5 2 ih ZLV Variable

G P PN PN P P1 9S 7135 7mo lOd 13571357O1357 1111111

ABCPNG2QPP QG PNGQ QG PPSPPQNS VFA B246 9et dPc 24682468C2468 1234567890123456

[1]

.......... .. .... .. ........ ... .... R.0 ... ............. ................

[Two cycles of data not shown in this example ]

[4]

.......... .. .... .. ........ ... .... R.0 ... ............. ................

.....p.... .. .... .. ........ ... .... R.0 ... ............. ................

...p.p.... .. .... .. ........ ... .... R.0 ... ............. ................>

(Continued on next page)

See Figure 12.1

firmware identifier

firmware checksum

identifier

one cycle of data

see Figure 12.5

and Figure 12.6 for

details on this example

one cycle of phase A

(channel IA) current

i, o
