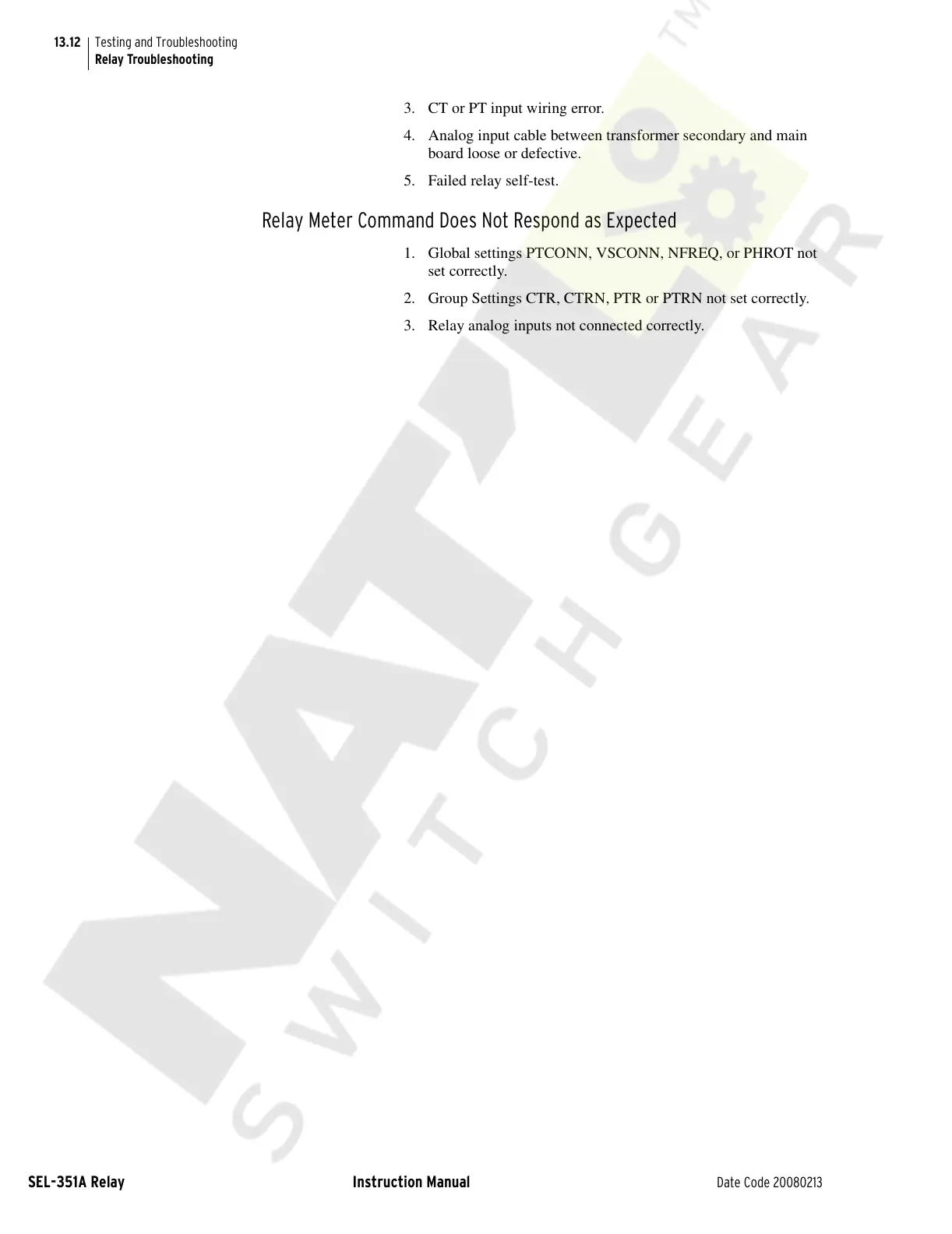

Testing and Troubleshooting

Relay Troubleshooting

3. CT or PT input wiring error.

4. Analog input cable between transformer secondary and main

board loose or defective.

5. Failed relay self-test.

Relay Meter Command Does Not Respond as Expected

1. Global settings PTCONN, VSCONN, NFREQ, or PHROT not

set correctly.

2. Group Settings CTR, CTRN, PTR or PTRN not set correctly.

3. Relay analog inputs not connected correctly.
