Configuration, Fast Meter, and Fast Operate Commands
Message Definitions
005C Digital offset
494100000000 Analog channel name (IA)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494200000000 Analog channel name (IB)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494300000000 Analog channel name (IC)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494E00000000 Analog channel name (IN)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564100000000 Analog channel name (VA or VAB for delta-connected voltages)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564200000000 Analog channel name (VB or VBC for delta-connected voltages)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564300000000 Analog channel name (VC or VCA for delta-connected voltages)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
565300000000 Analog channel name (VS)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
465245510000 Analog channel name (FREQ)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564241540000 Analog channel name (VBAT)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message

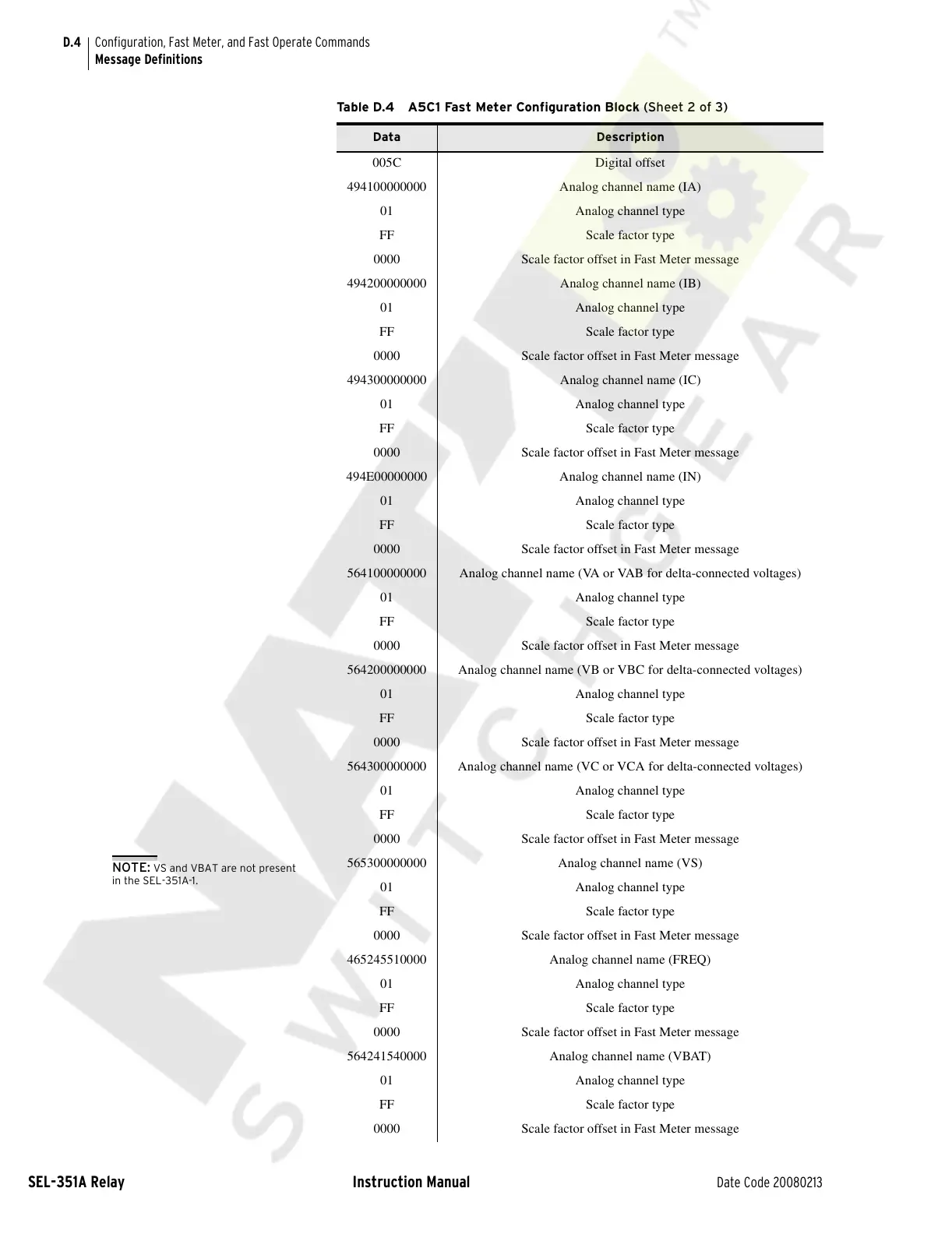

Table D.4 A5C1 Fast Meter Configuration Block (Sheet 2 of 3)
Data Description
NOTE: VS and VBAT are not present
in the SEL-351A-1.
