H.3
Date Code 20080213 Instruction Manual SEL-351A Relay
Distributed Network Protocol
Configuration
CLASSC Class for Counter Event Data (0–3) 2
DECPLA Currents Scaling Decimal Places (0–3) 1
DECPLV Voltages Scaling Decimal Places (0–3) 1
DECPLM Misc Data Scaling Decimal Places (0–3) 1
STIMEO Seconds to Select/Operate Time-out (0.0–30) 1.0
DRETRY Data Link Retries (0–15) 3
DTIMEO Seconds to Data Link Time-out (0–5) 1
MINDLY Minimum Seconds from DCD to Tx (0.00–1) 0.05
MAXDLY Maximum Seconds from DCD to Tx (0.00–1) 0.10
PREDLY Settle Time from RTS ON to Tx (OFF,0.00–30 sec) 0.00
PSTDLY Settle Time from Tx to RTS OFF (0.00–30 sec) 0.00
ANADBA Amps Reporting Dead Band Counts (0–32767) 100
ANADBV Volts Reporting Dead Band Counts (0–32767) 100
ANADBM Misc Data Reporting Dead Band Counts (0–32767) 100
UNSOL Enable Unsolicited Reporting (Y,N) N
PUNSOL Enable Unsolicited Reporting at Power-up (Y,N) N
REPADR DNP Address to Report to (0–65534) 0
NUMEVE Number of Events to Transmit on (1–200) 10
AGEEVE Seconds until Oldest Event to Tx on (0.0–60) 2.0
UTIMEO Seconds to Event Message Confirm Time-out (1–50) 2
a
38400 is not available on Port 1.

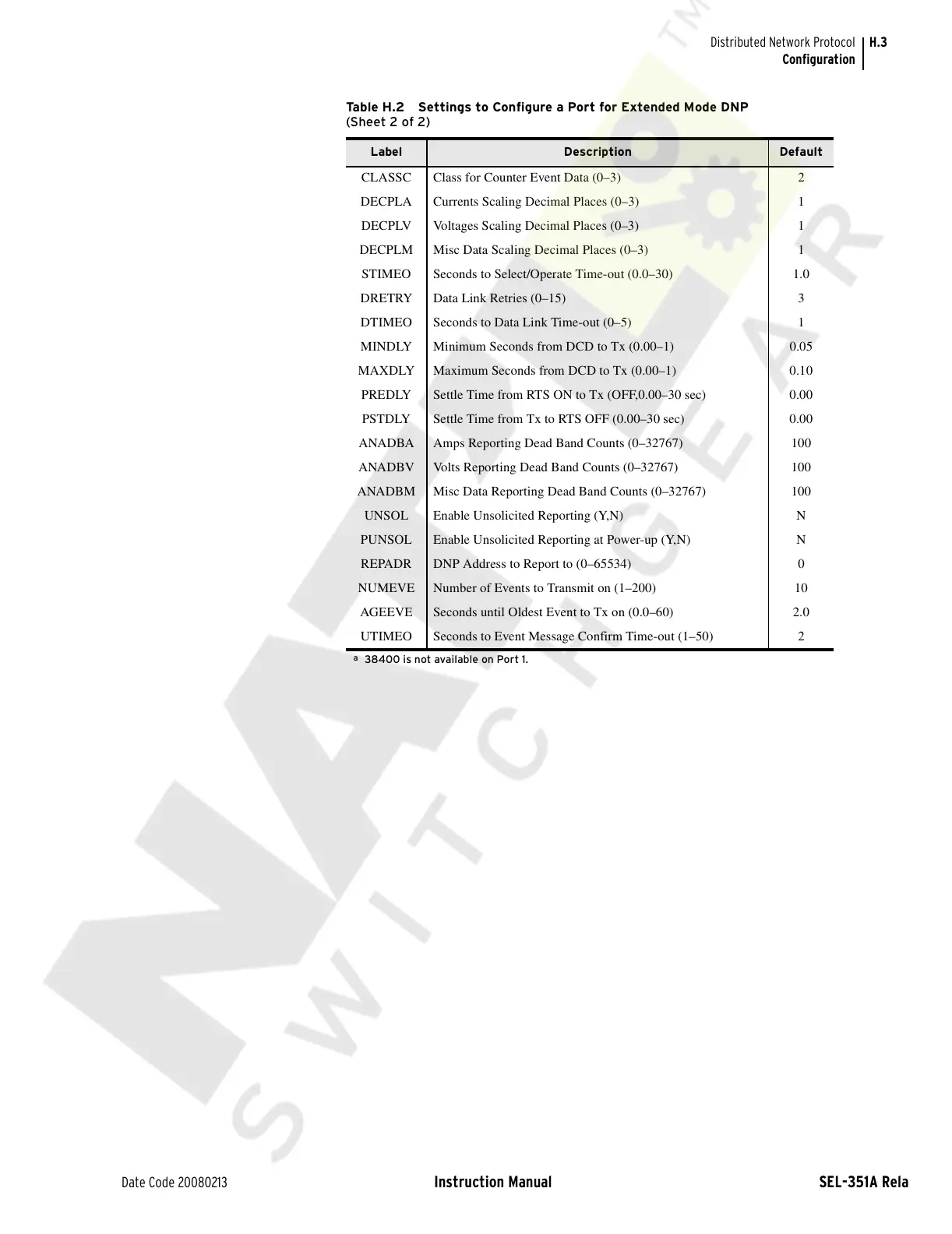

Table H.2 Settings to Configure a Port for Extended Mode DNP
(Sheet 2 of 2)
