SET.2
of 2
DNP Settings Sheets

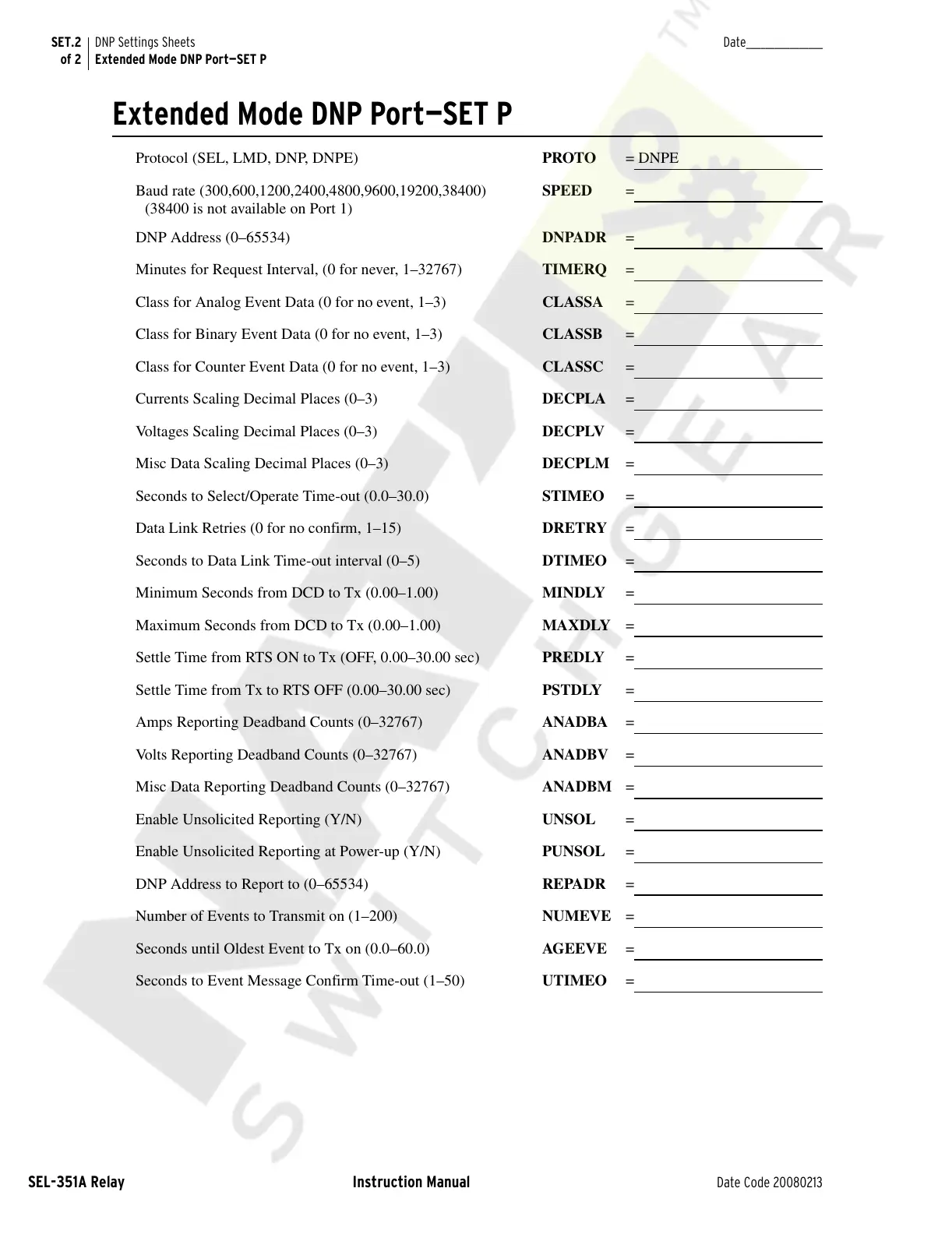

Extended Mode DNP Port—SET P
SEL-351A Relay Instruction Manual Date Code 20080213
Date________________
Extended Mode DNP Port—SET P
Protocol (SEL, LMD, DNP, DNPE) PROTO = DNPE
Baud rate (300,600,1200,2400,4800,9600,19200,38400)
(38400 is not available on Port 1)
SPEED =
DNP Address (0–65534)
DNPADR =
Minutes for Request Interval, (0 for never, 1–32767)
TIMERQ =
Class for Analog Event Data (0 for no event, 1–3)
CLASSA =
Class for Binary Event Data (0 for no event, 1–3)
CLASSB =
Class for Counter Event Data (0 for no event, 1–3)
CLASSC =
Currents Scaling Decimal Places (0–3)
DECPLA =
Voltages Scaling Decimal Places (0–3)
DECPLV =
Misc Data Scaling Decimal Places (0–3)
DECPLM =
Seconds to Select/Operate Time-out (0.0–30.0)
STIMEO =
Data Link Retries (0 for no confirm, 1–15)
DRETRY =
Seconds to Data Link Time-out interval (0–5)
DTIMEO =
Minimum Seconds from DCD to Tx (0.00–1.00)
MINDLY =
Maximum Seconds from DCD to Tx (0.00–1.00)
MAXDLY =
Settle Time from RTS ON to Tx (OFF, 0.00–30.00 sec)
PREDLY =
Settle Time from Tx to RTS OFF (0.00–30.00 sec)
PSTDLY =
Amps Reporting Deadband Counts (0–32767)
ANADBA =
Volts Reporting Deadband Counts (0–32767)
ANADBV =
Misc Data Reporting Deadband Counts (0–32767)
ANADBM =
Enable Unsolicited Reporting (Y/N)
UNSOL =
Enable Unsolicited Reporting at Power-up (Y/N)
PUNSOL =
DNP Address to Report to (0–65534)
REPADR =
Number of Events to Transmit on (1–200)
NUMEVE =
Seconds until Oldest Event to Tx on (0.0–60.0)
AGEEVE =
Seconds to Event Message Confirm Time-out (1–50)
UTIMEO =
