Section05FUELSYSTEM
Subsection 02 (FUEL TANK AND FUEL PUMP)
MODELS
FUEL PRESSURE
(when installing safety
lanyard)
GTI RFI Series and
3D Series
386 - 414 kPa
(56 - 60 PSI)
Disconnect the fuel pressure gauge and reconnect
it.
Crank or start engine and observe fuel pressure.
The fuel pressure should be the same as above.
If pressure is good, fuel pump and pressure regu-
lator are working adequately.
A rapid pressure drop indicates leakage either
from the fuel rail or from the fuel pump check
valve. Check fuel rail for leaks. If it occurs while
installing safety lanyard on DESS and fuel rail is
not leaking, then replace fuel pump.
A slow pressure drop indicates leakage either
from the fuel injector or from the fuel pressure
regulator. Check fuel injector for leaks. If it is not
leaking then replace fuel pump module.
Remove pressure gauge and reinstall fuel hose.
WARNING
Wipe off any fuel spillage in the bilge. Fu-
el is flammable and explosive under certain
conditions. Always work in a well ventilated
area.
Reinstall removed parts.
REMOVAL
Fuel Filter
Carburetor-Equipped Models
Turn the fuel valve OFF then remove the seat.
WARNING
The engine must not be running and fuel
valve must be set to OFF position. Gasoline
is flammable and explosive under certain
conditions. Always work in a well ventilated
area.

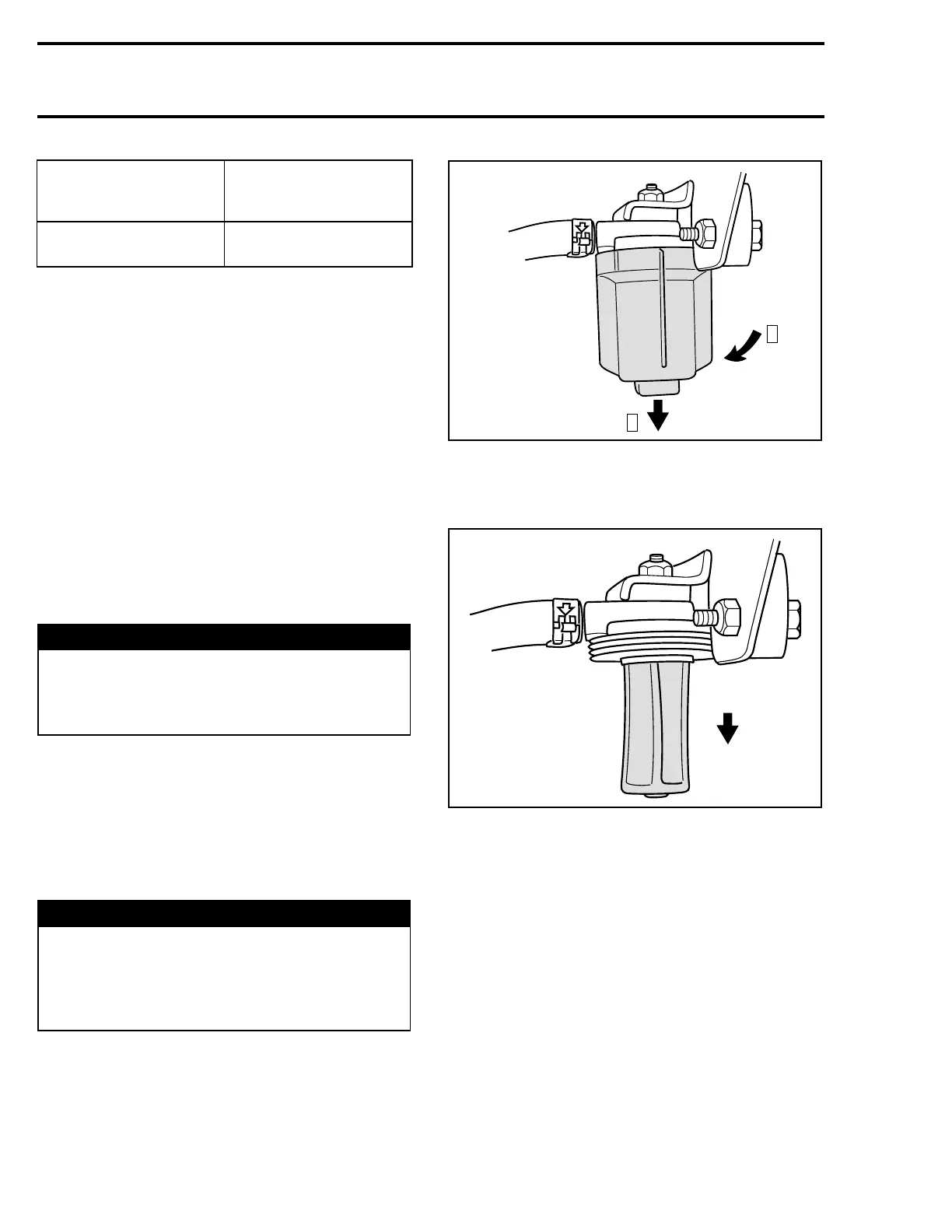

Unscrew fuel filler cap no. 2 to remove any fuel
pressure in system.
Unscrew the fuel filter bowl no. 3 counterclock-
wise then pull toward the bottom.
F01F01A
2
1
TYPICAL
Step 1: Loosen counterclockwise
Step 2: Pull
Pull fuel filter no. 4 toward the bottom.
F01F04A
TYPICAL
RFI Models
The fuel pump assembly no. 5 has to be removed
from the fuel tank no. 6 to have access to the fuel
filter.
NOTE: The filter does not require replacement un-
der normal operating conditions. Replace only if
permanently clogged or damaged.
Remove fuel pump.
Turn fuel pump up side down. Using a small flat
screwdriver, remove the fuel filter by prying the
inner plastic ring.
