Section 06 ENGINE MANAGEMENT (RFI)
Subsection 01 (OVERVIEW)
OVERVIEW

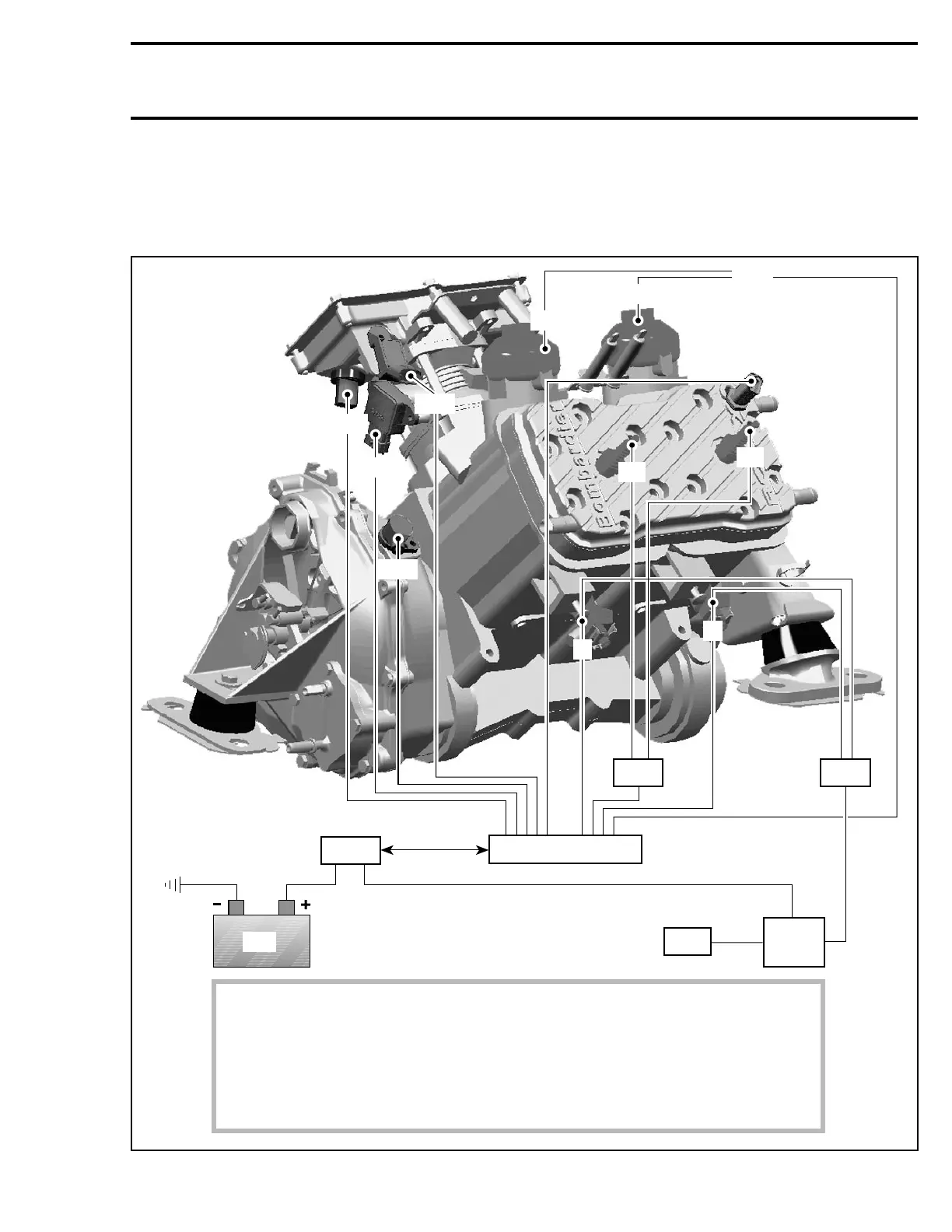

ENGINE MANAGEMENT SYSTEM (EMS)
- ATS: air temperature sensor
- APS: air pressure sensor
- TPS: throttle position sensor
- CPS: crankshaft position sensor
- RV: RAVE valve
- SRV: solenoid RAVE valve
- SP: spark plug
- FI: fuel injector
- IC: ignition coil
- VCM: vehicle control module
- ECM: engine control module
- Bat: battery
- FT: fuel tank
- FP: fuel pump
- FRe: fuel regulator
- FRa: fuel rail
VCM
ECM
FRaIC
FP
FRe
FT
Bat
ATS
APS
TPS
CPS
RV
RV
SP
SP
FI
FI
SRV
smr2005-054-002_aen
smr2005-054 109
