Section07ELECTRICALSYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)
F17H01A

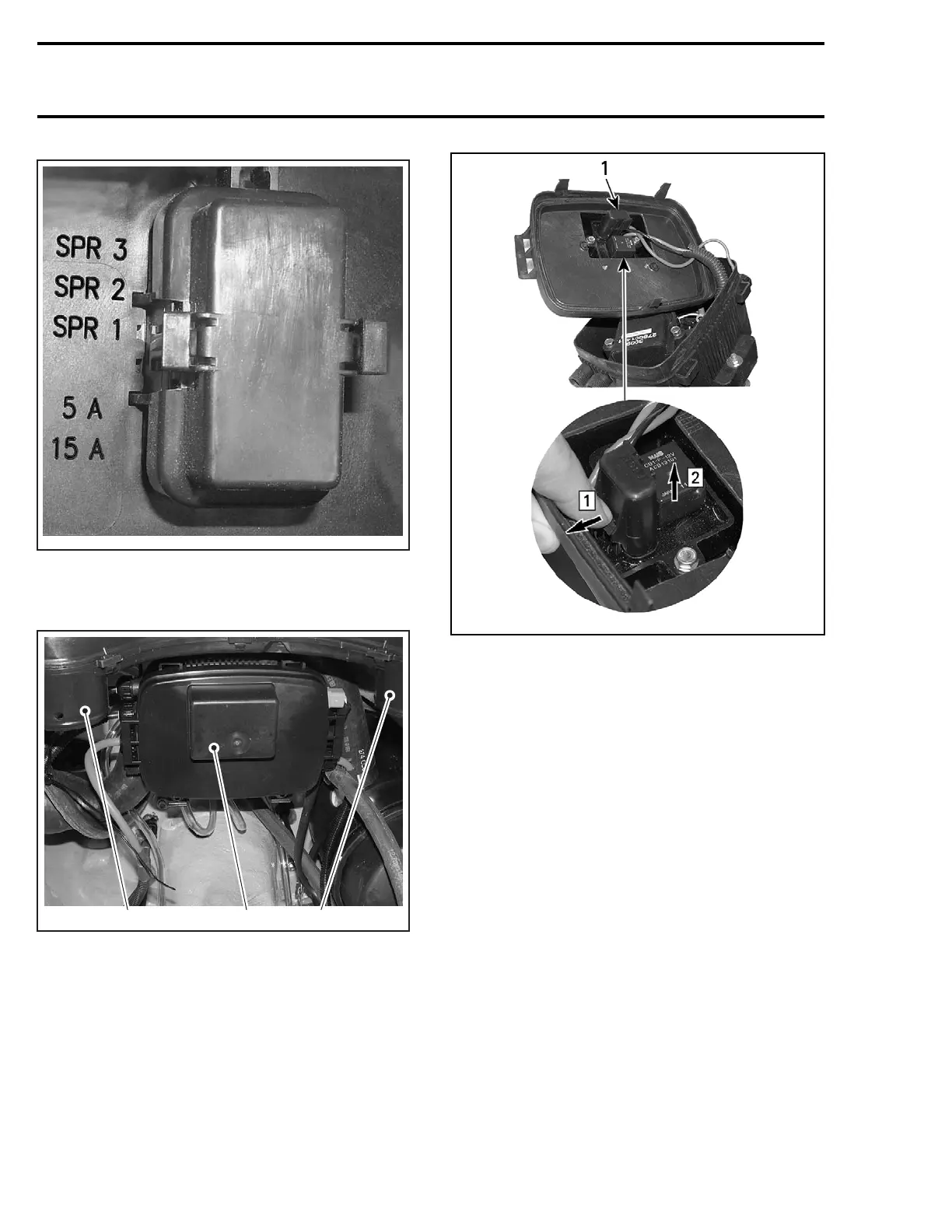

FUSE IDENTIFICATION — 5 A: MPEM AND 15 A: BATTERY
Electrical Box
F06H39A
121
TYPICAL
1. Vent tubes removed
2. Electrical box
Unclip and remove cover of the electrical box to
expose the holder of the main fuse.
smr2005-059-006_a
TYPICAL
1. Fuse holder
Step 1: Pull tab
Step 2: Pull fuse housing
RFI Models
Refer to ENGINE MANAGEMENT.
MULTI-PURPOSE ELECTRONIC
MODULE (MPEM)
NOTE: For models with a 787 RFI Engine, refer to
ENGINE MANAGEMENT for more information on
VCM/ECM.
GTI Models
The MPEM is directly powered by the battery
through the cut-off relay. It has a micro-processor
inside of its sealed case.
The MPEM features a permanent memory that
will keep the programmed safety lanyard(s) active
and other vehicle information, even when the bat-
tery is removed from the watercraft.
All the electrical system is controlled by the
MPEM. It is in charge of the following electrical
functions:
– power distribution
196 smr2005-060
