SeaDoo 3D User Manual

Section 13 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)

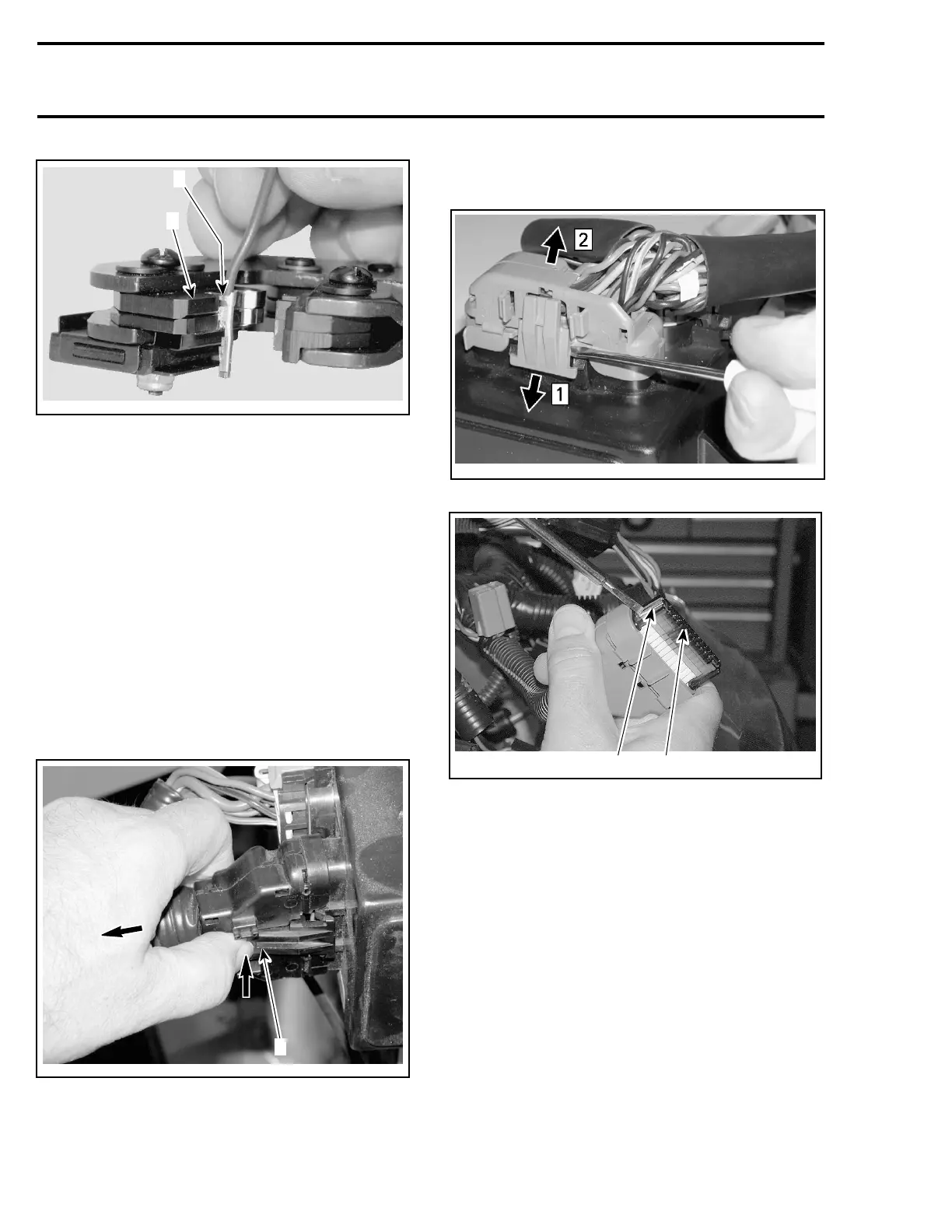

A32E3ZA
1
2
1. Top of terminal tabs
2. Aligntabswithpliersedge
Crimp terminal. Ensure no tiny wire goes out of
terminal. This might cause strange problems of
the electrical system.
Lubrication
Do not apply any product to the pins of the con-
nector on the ECM.
VCM CONNECTORS
GTI Series with 787 RFI Engine
32-Pin Connector
Firmly push down tab and hold to unlock connec-
tor while pulling it out.
A34E0KA
1
TYPICAL
1. Firmly push tab and hold while pulling connector out
NOTE: Asmallscrewdrivermaybeusedtore-
lease locking tab while pulling connector out.
smr2005-073-001_a
Push on both tabs to remove retainer.
1
A33Z01A
2
TYPICAL
1. Retainer
2. Tab(oneoneachside)
370 smr2005-073
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
