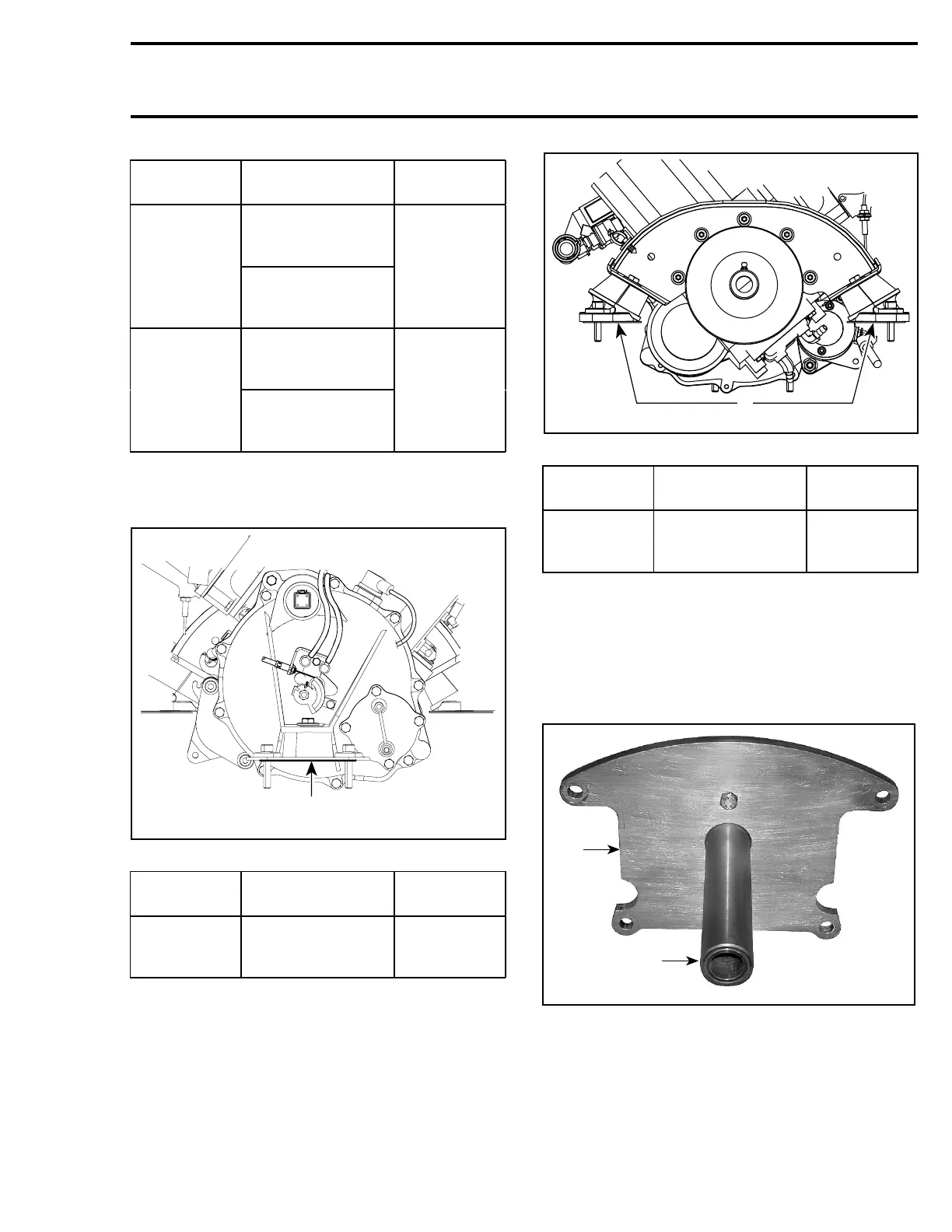

SeaDoo 3D User Manual

Section 03 ENGINE SYSTEM
Subsection 03 (REMOVAL AND INSTALLATION)
SHIM
LOCATION
SHIM TO BE USED
MAXIMUM
THICKNESS
shim 1.3 mm
(.0512 in)
(P/N 270 000 025)
A
shim 0.3 mm
(.0118 in)
(P/N 270 000 061)
3mm
(.1181 in)
shim 1.3 mm
(.0512 in)
(P/N 270 000 007)
B
shim 0.3 mm
(.0118 in)
(P/N 270 000 062)
5mm
(.1968 in)
CAUTION: Whenever shims are used to correct
alignment, never install more than the speci-
fied thickness.
A
smr2005-049-005_a
787 RFI ENGINES — FRONT
SHIM
LOCATION
SHIM TO BE USED
MAXIMUM
THICKNESS
A
shim 1.3 mm
(.0512 in)
(P/N 270 000 446)
5mm
(.1968 in)
CAUTION: Whenever shims are used to cor-
rect alignment, never install more than 5 mm
(.1968 in) shim thickness.
B
smr2005-049-006_a
787 RFI ENGINES — REAR
SHIM
LOCATION
SHIM TO BE USED
MAXIMUM
THICKNESS
B
shim 1.3 mm
(.0512 in)
(P/N 270 000 446)
5mm
(.1968 in)
CAUTION: Whenever shims are used to cor-
rect alignment, never install more than 5 mm
(.1968 in) shim thickness.
3D Series
Use:
– plate (P/N 529 035 507)
F19J09A
1
2
1. Plate
2. Support
– alignment shaft (P/N 295 000 141)
smr2005-049 67
