Section 03 ENGINE SYSTEM
Subsection 02 (EXHAUST SYSTEM)
GENERAL
Clean threads before applying a threadlocker. Re-
fer to SELF-LOCKING FASTENERS and LOCTITE
APPLICATION at the beginning of this manual for
complete procedure.
WARNING
Torque wrench tightening specifications
must be strictly adhered to. Locking de-
vices (e.g.: locking tabs, elastic stop nuts,
self-locking fasteners, etc.) must be installed
or replaced with new ones where specified. If
the efficiency of a locking device is impaired,
it must be renewed.
REMOVAL
Tuned Pipe
Remove engine cover then lift and lock steering
pole.
Remove air intake silencer.
NOTE: To ease tuned pipe removal, the throttle
body can be removed from engine.
Disconnect hoses from tuned pipe.

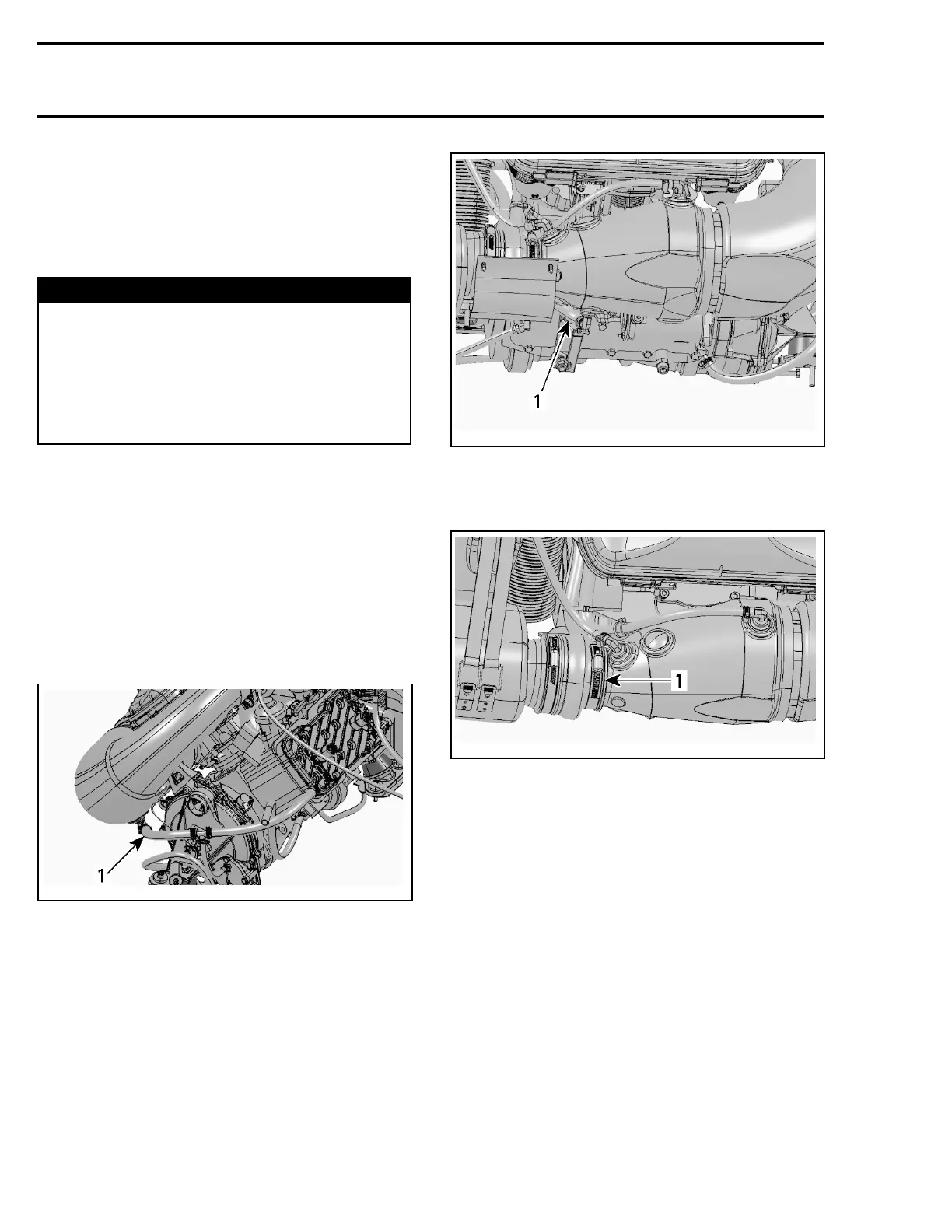

smr2005-048-004_A
1. Tuned pipe head water jacket supply hose
smr2005-048-005_A
1. Tuned pipe cone water jacket supply hose
Loosen clamp then slide rearward to release the
joint.
smr2005-048-006_A
1. Tuned pipe clamp
Remove:
– tuned pipe retaining screws
52 smr2005-048
To Next Page
