Section07ELECTRICALSYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)
Diagnostic Mode
In order to facilitate the use of the watercraft, a
system controls the digitally encoded security sys-
tem (DESS) and sends, through a beeper, some
audible signals informing the operator of a specif-
ic situation. The diagnostic mode is automatically
activated when connecting the safety lanyard cap
to the switch. Refer DIGITALLY ENCODED SE-
CURITY SYSTEM section for more details.
INFORMATION CENTER
GTI LE RFI Models

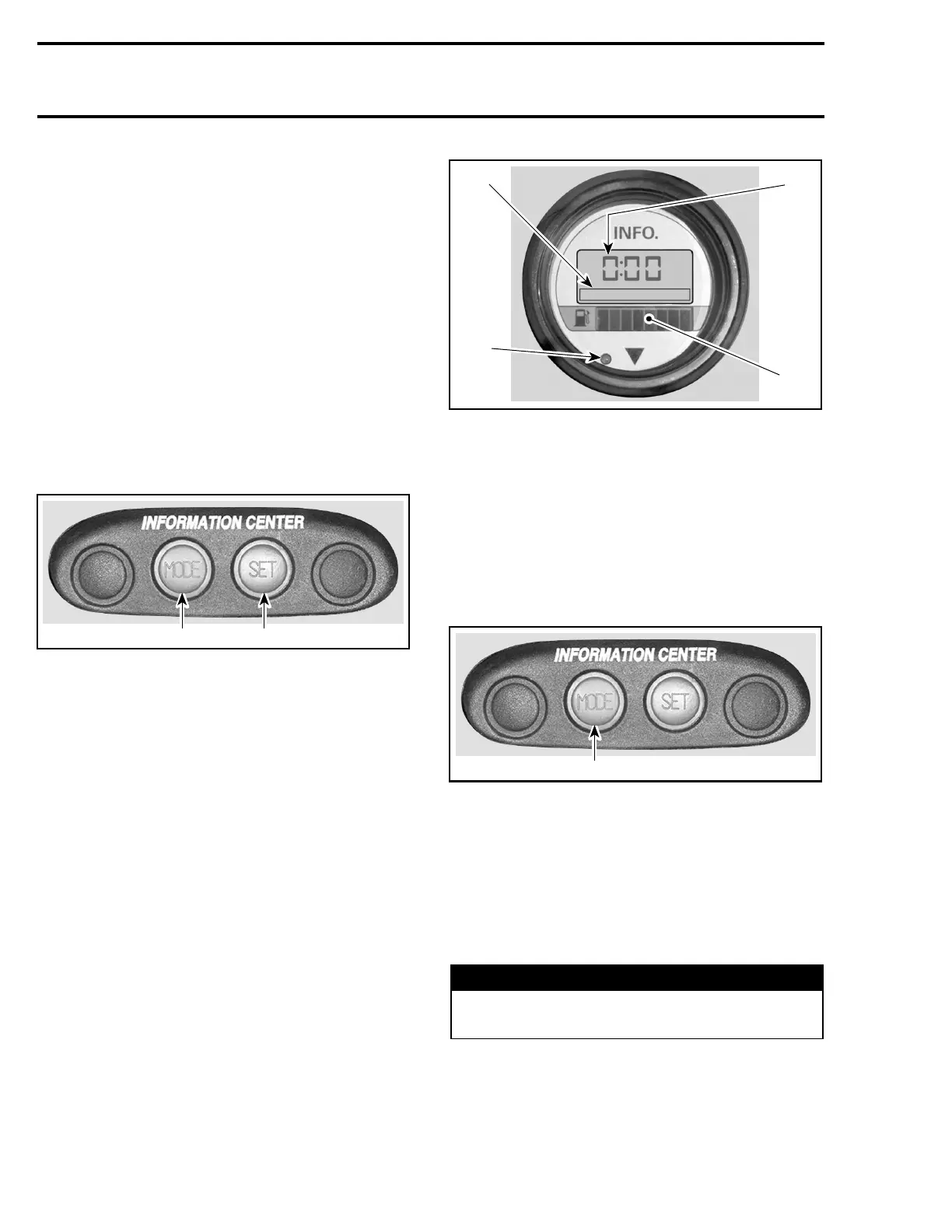

This is a LCD multifunction gauge. Different dis-
plays and functions can be activated using 2 but-
tons — MODE and SET — following specific se-
quences as described below.
F00L2BA
1 2
1. To change display mode
2. Tosetorresetafunction
Resetting a Function
To reset a function (such as the chronometer, dis-
tance, etc.) press and hold the SET button for 2
seconds while in the appropriate mode.
The information center includes the following dis-
play areas.
F00L3JA
3
4
1
2
1. General display
2. Message/units display
3. Warning light
4. Fuel level display
General Display
Repeatedly pressing the MODE button scrolls
the following displays: compass, tachometer,
speedometer, average speed, trip meter, hourme-
ter, water temperature, exterior temperature and
chronometer.
F00L2BB
1
1. Press to change display mode
When you are satisfied with your choice, stop
pressing the button. The display you have chosen
will remain until it is changed. When safety lan-
yard is installed, the last chosen display will come
back.
Compass: Displays the cardinal points to indicate
the orientation of the watercraft.
WARNING
Use the compass as a guide only. Not to be
used for navigation purposes.
Tachometer: Indicates the revolutions per
minute (RPM) of the engine.
198 smr2005-060
