Section 13 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)
ELECTRICAL CONNECTORS
SERVICE TOOLS
Description Part Number Page
crimper die............................................................................
529 035 906 .........................................369
crimper die............................................................................
529 035 908 .........................................365
crimping pliers ......................................................................
529 035 730 .........................................372
crimping tool.........................................................................
529 035 909
................................. 365, 369
DEUTSCH CONNECTORS
Deutsch connectors are used to connect wiring
harness to the magneto the electrical box (some
models) and the VCK (RFI models).

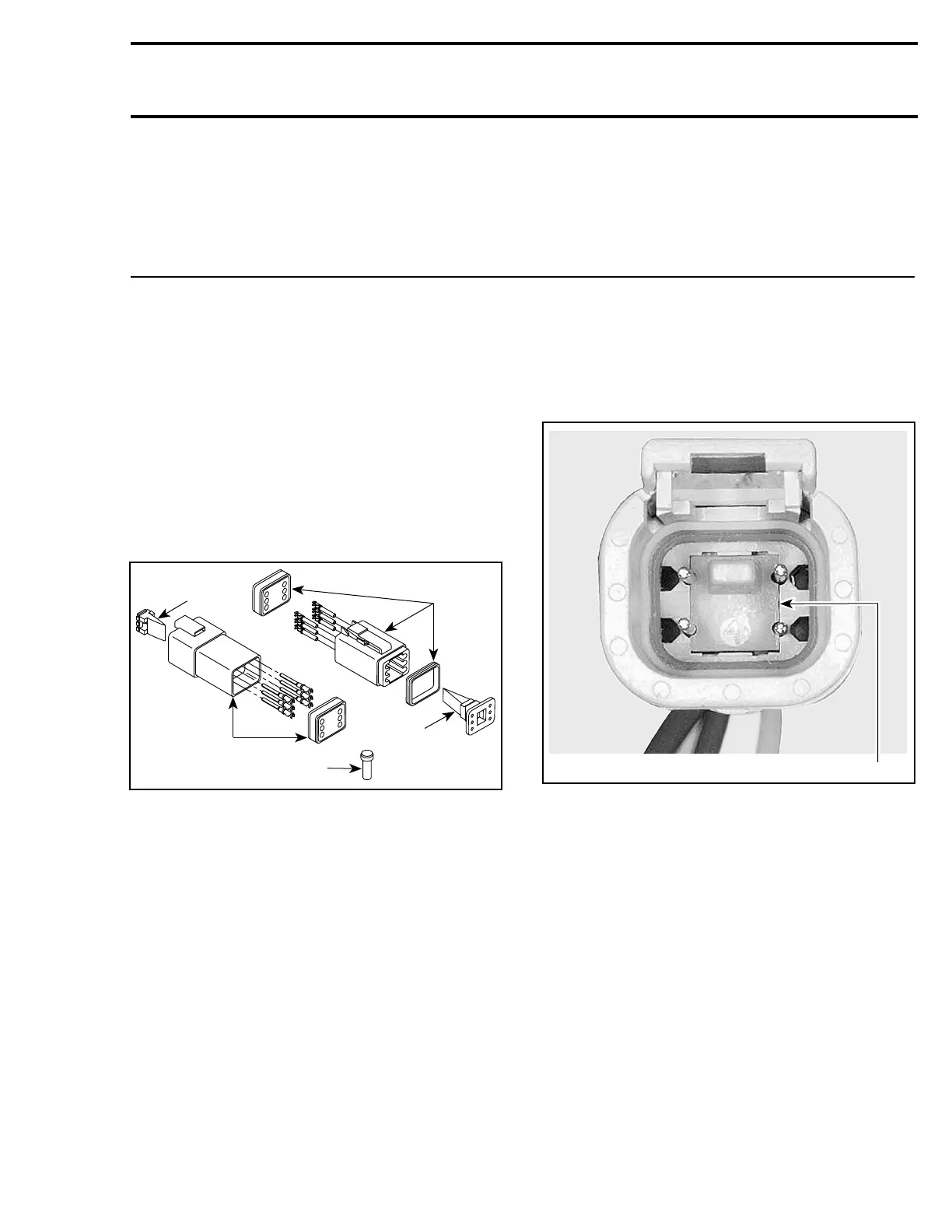

Connector Disassembly
F00H1CA
1
3
4
2
3
1. Male connector
2. Female connector
3. Secondary lock
4. Sealing cap
CAUTION: Do not apply dielectric grease on
terminal inside connector.
To remove terminals from connector, proceed as
follows:
– Using a long nose pliers, pull out the lock.
1
V01G0OA
FEMALE CONNECTOR
1. Female lock
smr2005-073 361
