Section 11 HULL/BODY

Subsection 02 (3D SERIES)

Clean any residues of silicone sealant on hull and

sponson.

Installation

Apply silicone sealant (clear) (P/N 293 800 086)

around sponson bolts.

Install sponson and torque sponson nuts to 5 N•m

(44 lbf•in).

BAILER PICK-UPS

Inspection

Check if the hole on the elbow fitting is obstruct-

ed. Clean both elbow fittings if necessary.

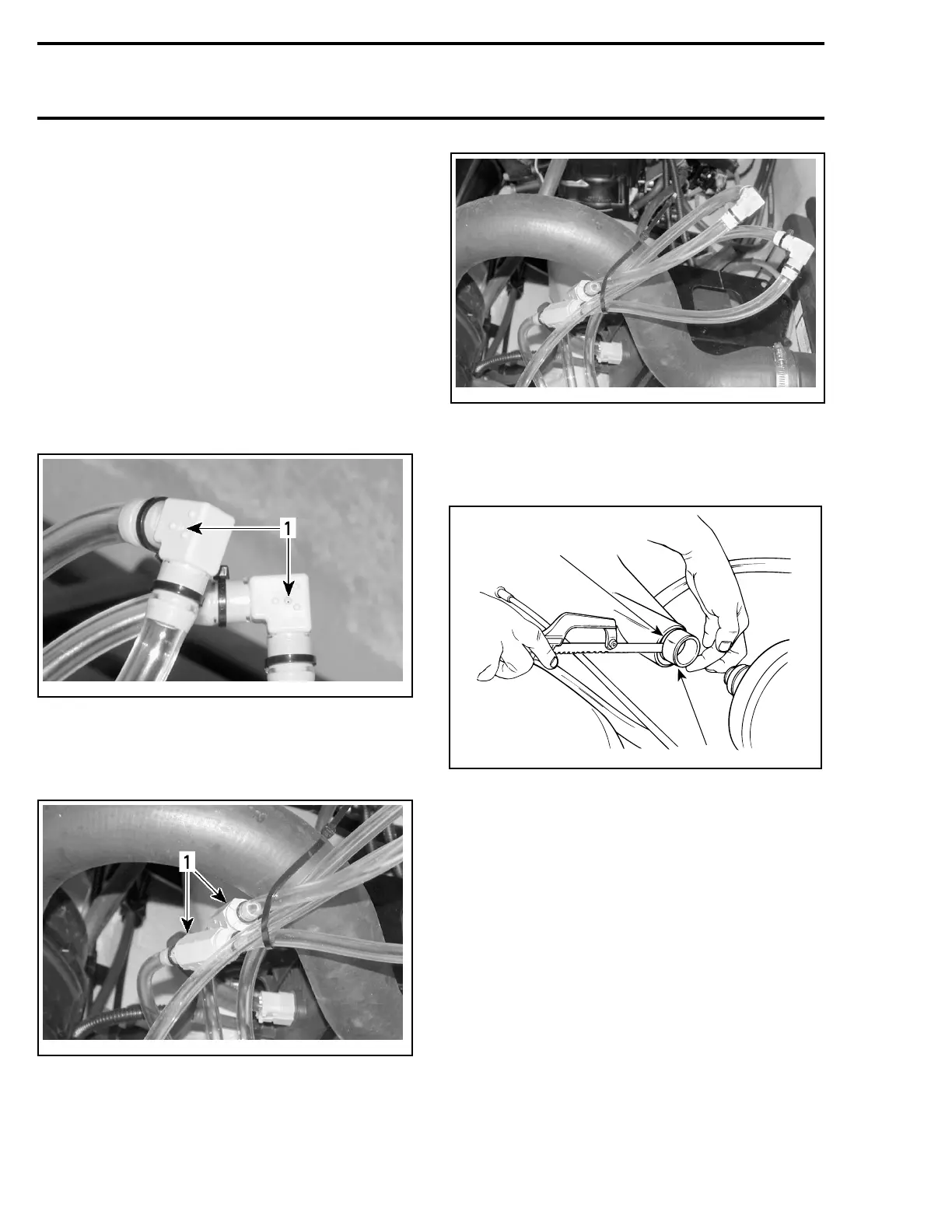

smr2005-045-001_A

1. Elbow fitting holes

Remove check valves and shake them. If the in-

ner parts move freely, the check valve is in good

condition. If not, replace by a new one.

smr2005-045-002_A

1. Check valves near elbow fittings

Attach elbow fittings at the highest position that

you can on the inlet hose.

smr2005-045-003

THRU-HULL FITTING

For hull insert repair proceed as follows:

Cut plastic hull insert flush with hull using a saw.

F01L2UA

1. Hull

2. Plastic hull insert

Mix epoxy glue (3M-05895), follow manufacturer

instructions.

Apply epoxy glue on aluminum insert (P/N 292 000

075) knurled surface and on plastic insert inner

bore.

CAUTION: If you notice any clearance between

plastic insert and aluminum insert, fill gap

with epoxy glue to obtain good adhesion of

aluminum insert.

346 smr2005-069
