SeaDoo 3D - Removal; Disassembly; Inspection

Section09PROPULSION
Subsection 04 (VARIABLE TRIM SYSTEM)

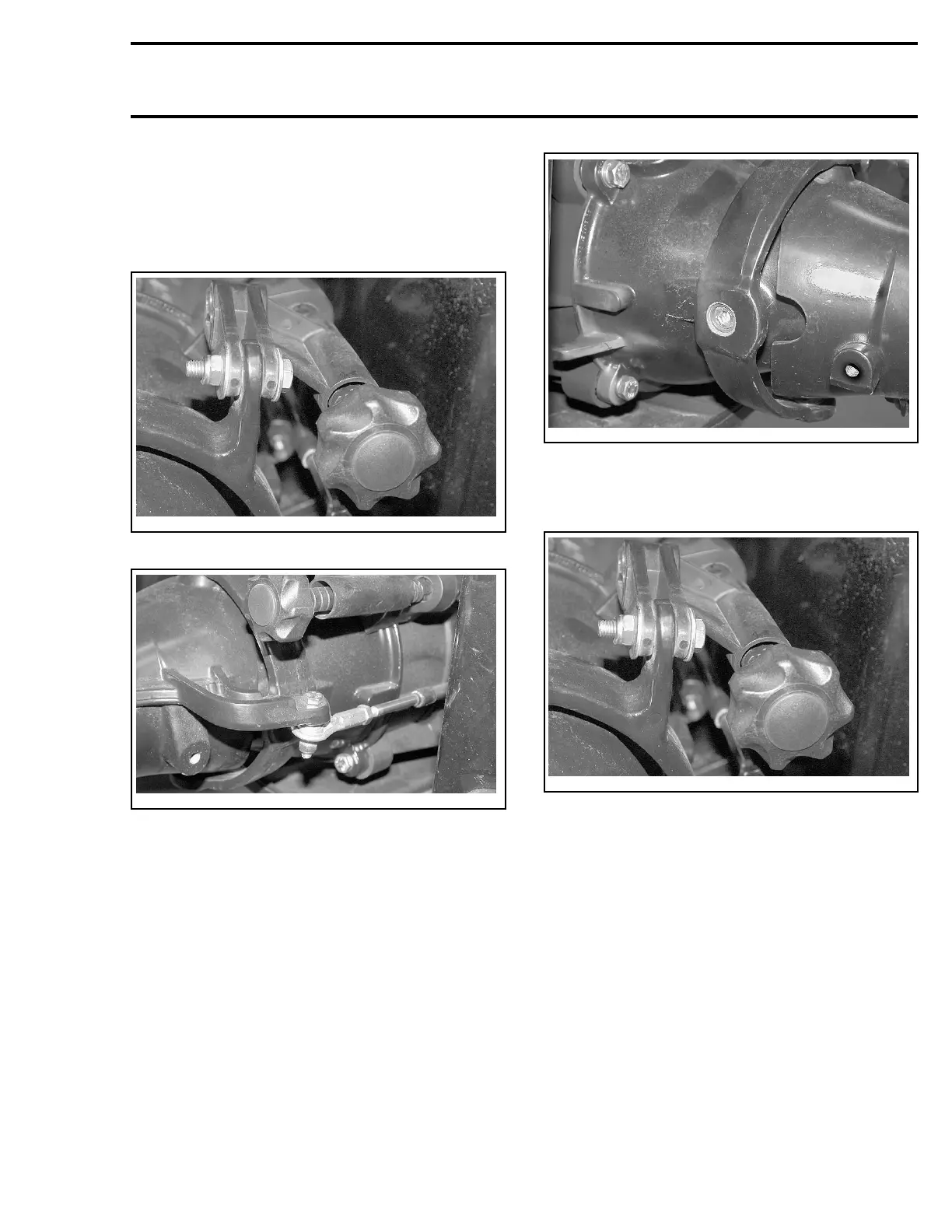

REMOVAL
Trim Ring
Remove nut no. 1,boltno. 2, flat washers no. 3,
and bushing no. 4 from pivot no. 5.
smr2005-065-001
Remove steering cable from nozzle.
smr2005-065-002
Unscrew bolts holding nozzle to trim ring.
Unscrew bolts retaining trim ring to venturi.
smr2005-065-003
Adjustment System
Remove nut no. 1,boltno. 2, flat washers no. 3,
and bushing no. 4 from pivot no. 5.
smr2005-065-001
Unscrew the upper right venturi bolt then remove
the adjustment system.
DISASSEMBLY
Adjustment System
Loosen nut no. 6 from support no. 9.
Remove rubber spacer no. 7 and half bushings
no. 8.
Unscrew adjustment knob no. 10 from pivot no. 5.
INSPECTION
Inspect each parts for cracks, wear, distortion or
other damages. Replace all defective parts.
smr2005-065 275
