Section 10 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

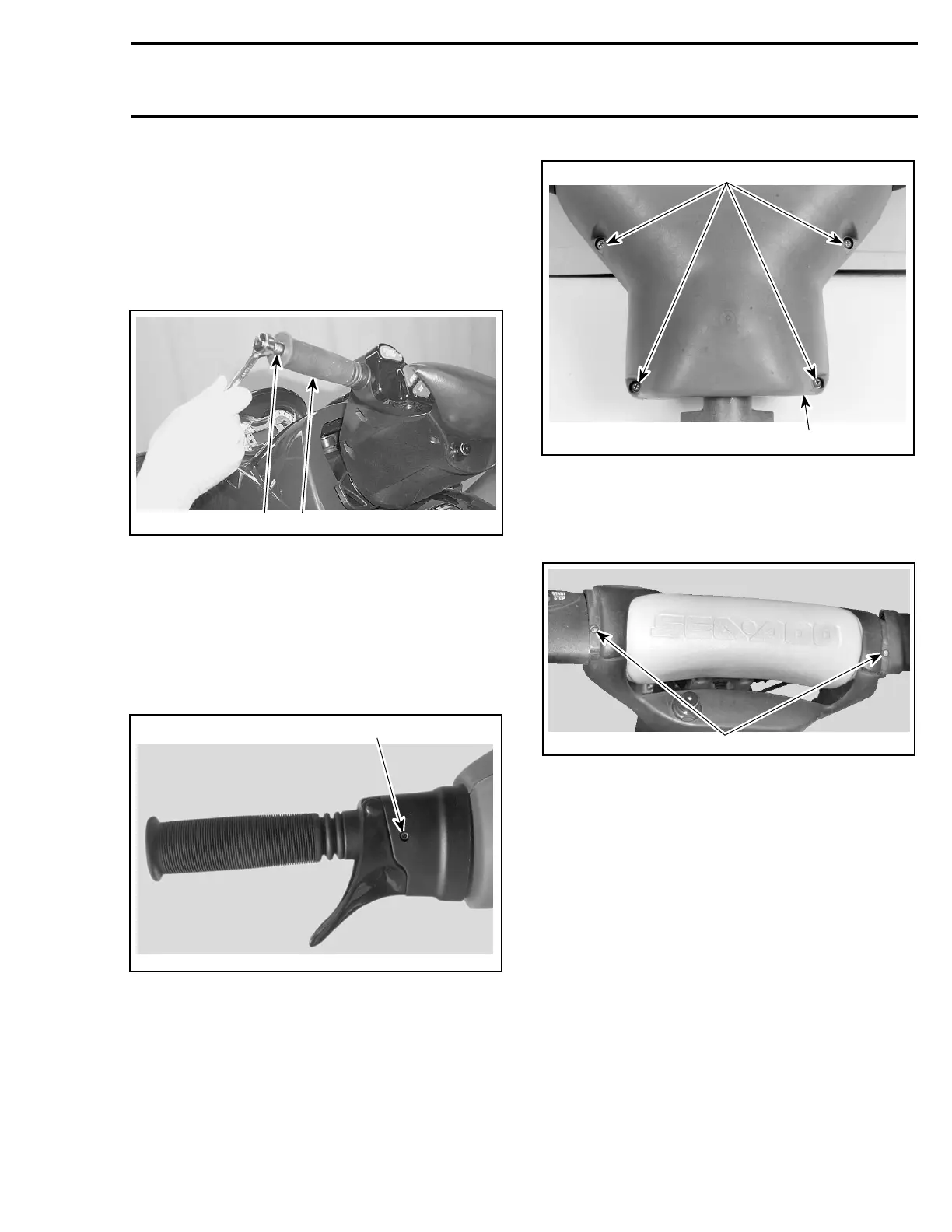

DISASSEMBLY
Handle Grip and Grip Insert
To remove handle grip no. 1, pull out cap no. 2 and
remove screw no. 3.
Pull out grip and remove grip insert no. 4 from
handlebar no. 5.
1
F18K0AA
2
1. Handle grip
2. Remove screw
NOTE: Verify grip insert for damage.
Steering Cover
Remove grips no. 1.
Loosen set screws no. 6 of handlebar housings
no. 7 and no. 8.
F00K01A
1
1. Set screw
Remove 4 screws no. 9.
F00K02A
2
1
TYPICAL
1. Cover
2. Screws
Remove 2 screws no. 10 and flat washers no. 11
each side of cover no. 12.
1
F07K0JA
1. Remove screws
Remove cover.
Steering Padding
Remove steering cover no. 12.
Remove 2 screws no. 13 and flat washers no. 14.
Remove steering padding no. 15.
