Section 11 HULL/BODY
Subsection 01 (GTI SERIES)
GENERAL
Verify hinges condition and latching mechanisms
condition and operation. Replace any damaged
components.
When applying threadlocker products, pay atten-
tion so that it does not come in contact with ABS
plastic parts (painted parts). It could lead to plas-
tic cracks or other damage.
PROCEDURES

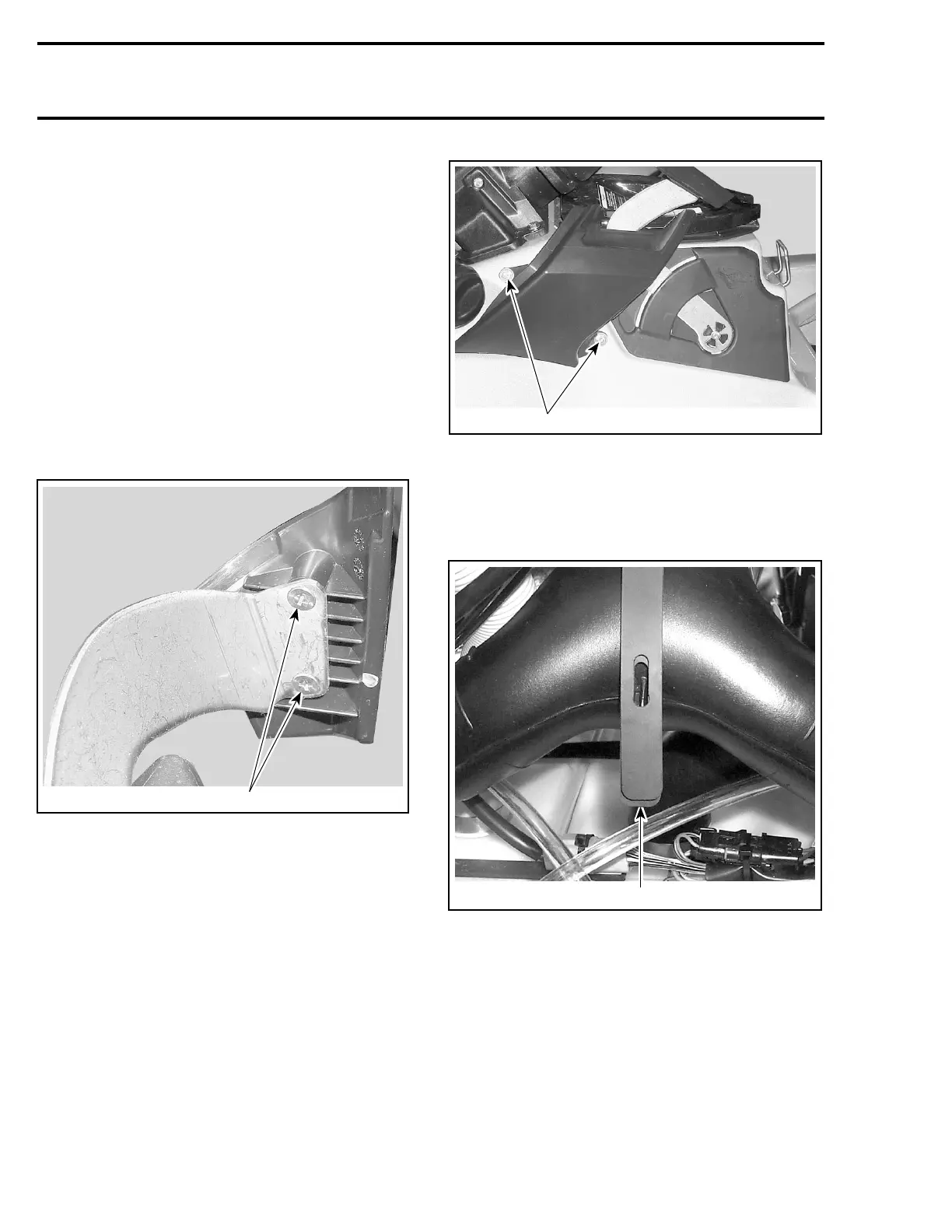

GLOVE BOX
Removal
Remove handle from shift lever.
1
F16L07A
1. Unscrew
Remove darts and then remove side panels.
1
F16L08A
1. Unscrew the darts
Open front storage cover no. 1 andremovethe
access panel no. 2.
Detach the latch no. 3 retaining vent tube no. 4 to
bracket no. 5.
1
F17L0OA
1. Unlatch
Pull vent tube out.
From the engine compartment, insert a hand
through the vent tube hole and press glove box
lock tabs to release.
320 smr2005-069
