SeaDoo 3D User Manual

Section07ELECTRICALSYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)

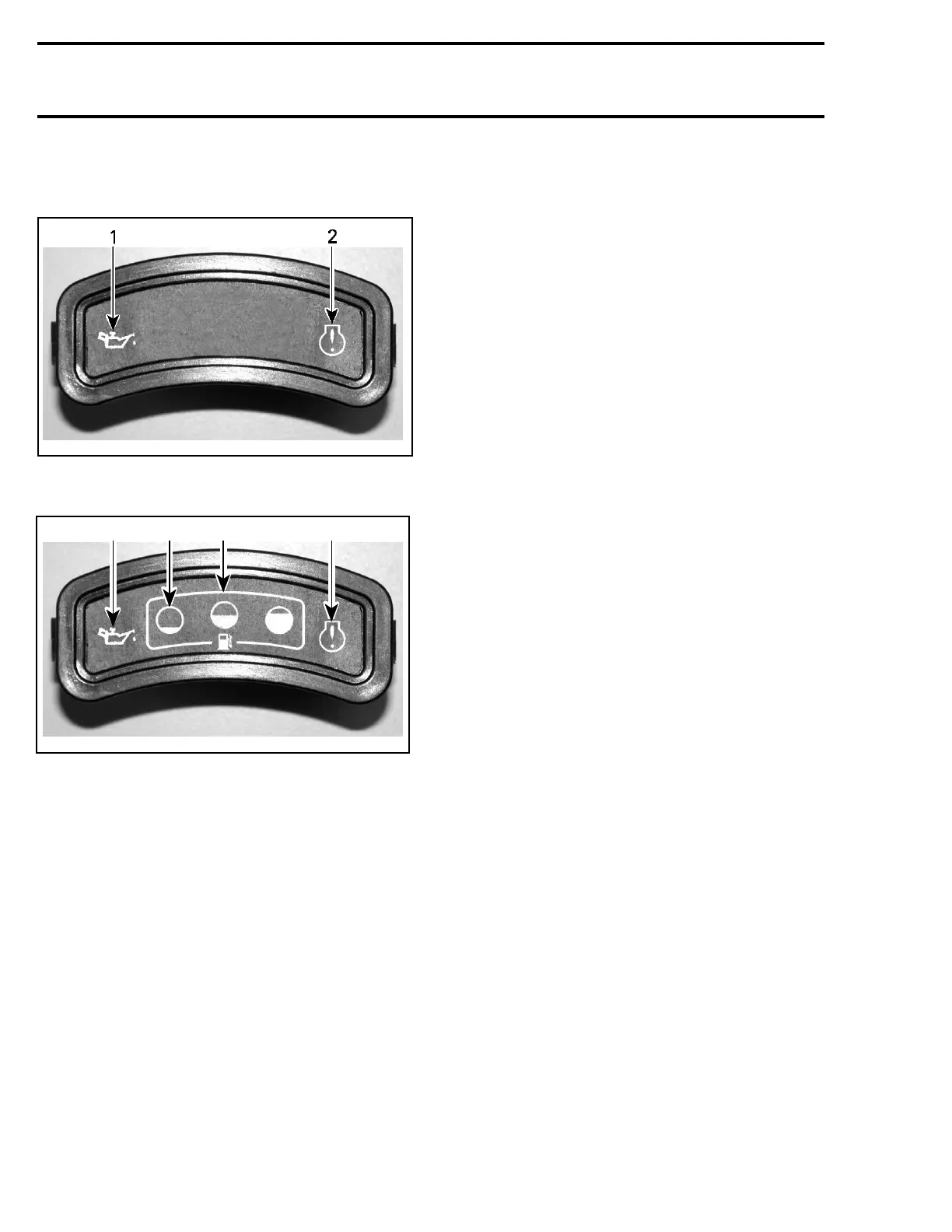

INDICATOR LIGHT CLUSTER
3D Series
smr2005-060-009_a
MODELS WITHOUT FUEL LEVEL LIGHTS
1. Low oil warning light
2. Warning light
F22H01A
1 3 2 4
MODELS WITH FUEL LEVEL LIGHTS
1. Low oil warning light
2. Fuel level lights
3. Low fuel level light
4. Warning light
The low oil warning light will turn on whenever oil
level is low in reservoir.
CAUTION: Always replenish oil reservoir as
soon as possible to avoid serious engine dam-
age.
Models without Fuel Level Lights
As a reserve indicator, the beeper will turn on
when roughly 5L (1.3 U.S. gal.) is left and will re-
main on until tank is refilled. Refer to DIAGNOS-
TIC PROCEDURES for the coded signals.
Models with Fuel Level Lights
When safety lanyard is installed and fuel tank is
full, all fuel level lights are continuously turned on.
As fuel level goes down, the fuel level lights will
turn off one at a time to indicate remaining fuel.
As a reserve indicator, the beeper will turn on and
the low level light will continuously blink when
roughly 5L (1.3 U.S. gal.) is left. When roughly
3 L (.8 U.S. gal.) is left, the light will turn off. The
beeper will remain on until tank is refilled. Refer
to DIAGNOSTIC PROCEDURES for the coded sig-
nals.
The warning light will turn on whenever there is
a problem with the engine management system.
It will blink when there is a problem with the
O.T.A.S.
TM
system or the electric bilge pump.
NOTE: When engine is not running and safety lan-
yard is on its post, the warning light will remain
turned on until safety lanyard is removed.
Fuel Level Sender
Test fuel level sender. See FUEL LEVEL SENDER
further in this section. If sender works properly,
perform the LIGHTS VERIFICATION as described
below.
Low Oil Level
Test oil level sensor. See OIL LEVEL SENSOR fur-
ther in this section. If sender works properly, per-
form LIGHTS VERIFICATION as described below.
Lights Verification
When installing safety lanyard, all lights will turn
on for a brief moment. This confirms their opera-
tion.
Otherwise, remove steering pole cover (refer to
BODY) and unplug cluster connector.
Individually validate the lights supply from VCM as
follows:
NOTE: The pin A (PURPLE wire) is the common
power wire.
– Install safety lanyard.
– Read voltage between wires as per table.
206 smr2005-060
