Section 07 ELECTRICAL SYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)

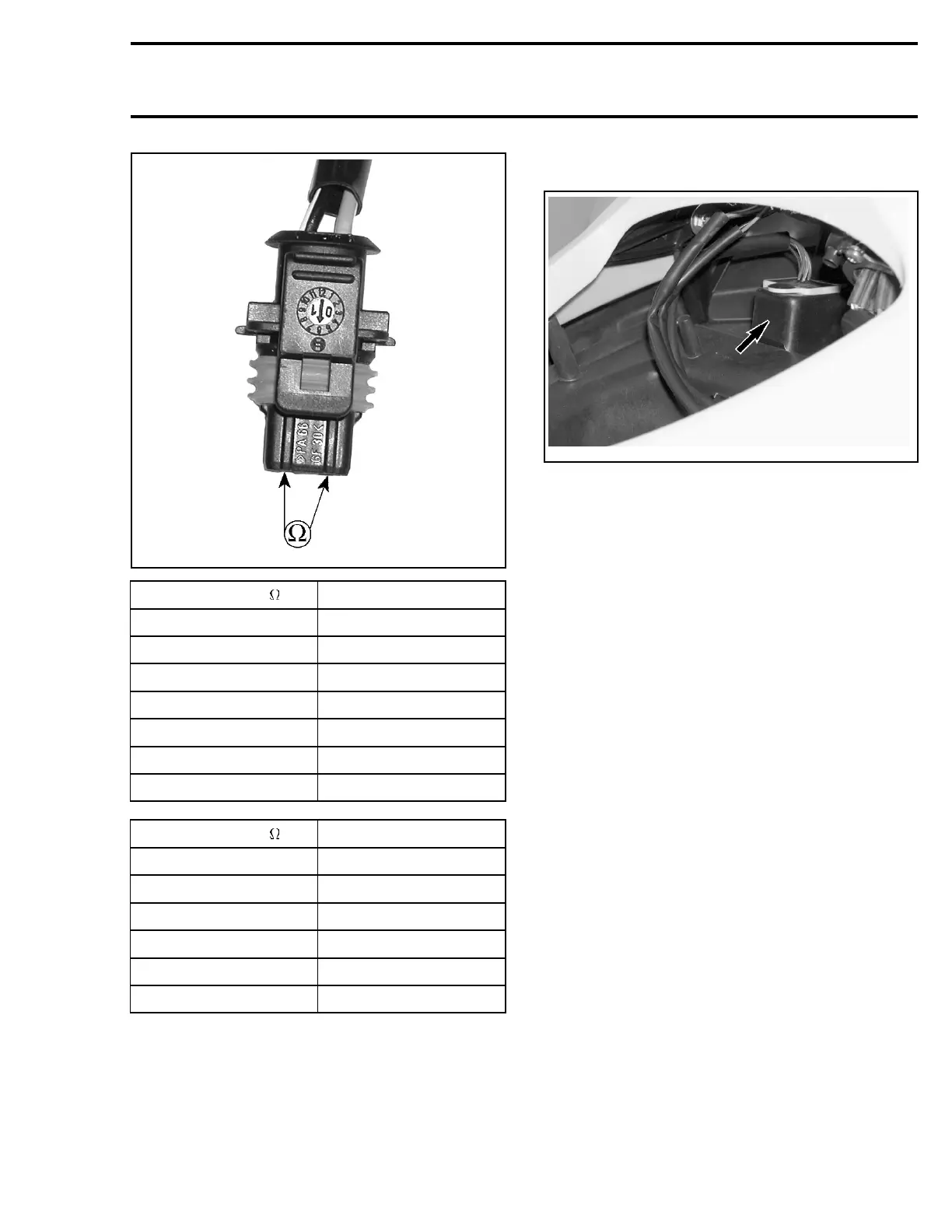

smr2005-060-006_a
RESISTANCE ( ) TEMPERATURE (°C)
4712 5±2
3792 10 ± 2
3069 15 ± 2
2500 20 ± 2
2057 25 ± 2
1707 30 ± 2
1412 35 ± 2
RESISTANCE ( ) TEMPERATURE (°F)
4316
45 ± 4
3337
55 ± 4
2712 65 ± 4
2138
75 ± 4
1771
85 ± 4
1412 95 ± 4
If out of specification, check wiring harness/con-
nectors. If good, try a new Information Center.
Compass
The compass is located in the storage cover.
Open top storage compartment cover.
smr2005-060-007_a
Remove the compass from the support.
Change the direction of the compass and keep it
horizontal (± 10°). There should be a change of
direction on the Information Center.
NOTE: To check the accuracy of the compass,
you can use a portable compass and point it in
the same direction. Compare the given directions,
they should be the same.
If it does not work, check wiring/connectors. If
good, try a new compass. If it still does not work,
try a new Information Center.
Low Oil Level
Test oil level sensor. See OIL LEVEL SENSOR
further in this section. If sender works properly,
check wiring/connectors. If good, try a new Infor-
mation Center.
smr2005-060 205
